Cordons de raccordement en fibre | LC, SC, FC, MPO et cavaliers blindés

Cordons de raccordement fibre - connectivité haute performance pour chaque réseau

Cordons de raccordement en fibre de qualité supérieure - types LC, SC, FC, ST, MPO / MTP et blindés. Faible perte d'insertion, virole en céramique, options LSZH / PVC / OFNP. Testé en usine avec des rapports de test.

Obtenir un devis instantané
Produit

Qu'est-ce que le cordon de raccordement fibre?

Un cordon de brassage fibre (également appelé cavalier fibre) est un composant de base mais essentiel dans les réseaux optiques, utilisé pour connecter des périphériques réseau, des panneaux de brassage et des émetteurs-récepteurs optiques. YRTFIBER fabrique une gamme complète de cordons de brassage - standard, blindés, MPO / MTP, conditionnement de mode et nattes - avec différents types de connecteurs, qualités de fibre et cotes de jaquette pour convenir aux centres de données, aux réseaux locaux d'entreprise, aux salles de télécommunications et aux applications FTTx.

Types de cordons de raccordement fibre

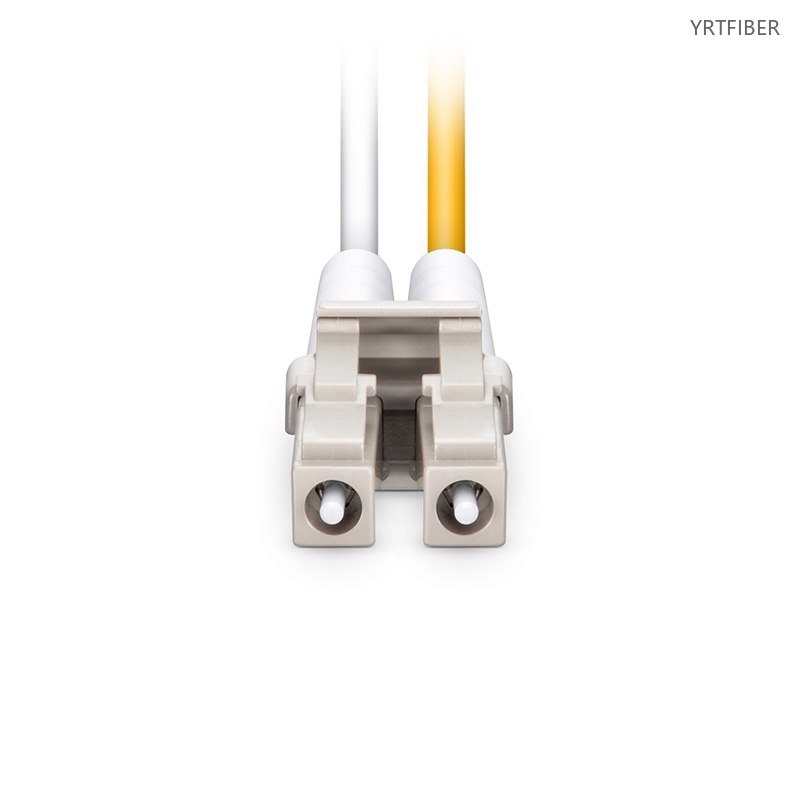

  • Cordons de raccordement standard
    - Connecteurs LC, SC, FC, ST, simplex ou duplex, pour les connexions à usage général.

  • Cordons de raccordement blindés
    - Armure spirale en acier inoxydable pour une résistance à l'écrasement et à la flexion dans les environnements à haut risque.

  • Cordons de raccordement MPO / MTP
    - Connecteurs multifibres haute densité (12 à 144 fibres) pour le câblage dorsal des centres de données.

  • Cordons de conditionnement de mode
    - Pour la transition entre les systèmes multimodes et monomodes dans les réseaux hérités.

  • Pigtails
    - Connecteurs à une extrémité pour l'épissage par fusion et la terminaison ODF.

Spécifications clés

  • Perte d'insertion : ≤ 0,3 dB (typique) ; Perte de retour : ≥ 50 dB (UPC) / ≥ 60 dB (APC)

  • Embout en céramique - poli avec précision pour une stabilité à long terme

  • Options de veste : PVC, LSZH, OFNR, OFNP (ignifugé)

  • Types de fibres : G.652D, G.657A1 / A2, OM3, OM4, OS2

  • Longueurs personnalisées et combinaisons de connecteurs disponibles

Applications typiques

  • Interconnexions de serveur à commutateur de centre de données

  • Correction ODF du central télécom

  • LAN d'entreprise et réseaux de campus

  • Connexions d'équipement d'abonné FTTH

Pourquoi choisir YRTFIBER?

  • Plus de 15 ans d'expérience, capacité annuelle de 4M + fibre-km

  • Connectorisation interne et tests 100 % en usine

  • Chaque cordon est livré avec un rapport de test IL / RL

  • Fibre compatible Virgin Corning / Yangtze

  • Prix usine - 10 à 20 % plus compétitifs

  • Délai d'exécution de 7-15 jours ouvrables

  • Garantie de 3 ans + assistance technique gratuite

Processus de commande

  1. Demande avec le type de connecteur, le nombre de fibres, la longueur, la qualité de la veste

  2. Devis sous 24 h (facture pro forma + délai + fret)

  3. 30 % d'acompte + confirmer les détails d'impression / couleur / marquage

  4. Production avec photos / vidéos en cours

  5. Balance FAT + - Rapports de test IL / RL examinés avant l'expédition

  6. Expédition et support après-vente

Certifications et normes

  • ISO 9001 / ISO 14001

  • C'EST G.652D, G.657A

  • CEI 6130034 / 6130036 (IL / RL)

  • RoHS, REACH, CE

  • UL / CPR sur demande

Emballage et expédition

  • Sacs individuels en PE ou bobines en plastique avec capuchons de protection

  • Étiquetage clair avec le type de connecteur, la qualité de la fibre, la longueur et les données de test

  • Emballage en carton pour un transport en toute sécurité

  • Emballage personnalisé disponible pour les commandes OEM

Questions fréquemment posées

  • Connecteur UPC ou APC?
    APC (coudé) offre une perte de retour plus faible et est préféré pour la vidéo analogique et les applications de haute précision ; UPC est standard pour la plupart des réseaux numériques.

  • Monomode ou multimode?
    Monomode (OS2) pour les liaisons long-courriers et haute vitesse ; multimode (OM3 / OM4) pour les liaisons de centre de données à courte portée.

  • Blindé ou standard?
    Blindé pour les zones à fort écrasement ou sujettes aux rongeurs ; standard pour une utilisation intérieure générale.

  • MOQ?
    À partir de 10 pièces ; meilleur prix à partir de 500 pièces.

  • Garantie?
    3 ans sur les matériaux et la fabrication.

Prêt à commander des cordons de raccordement en fibre?
Envoyez vos spécifications à nos ingénieurs maintenant
Réponse dans les 24 heures ouvrables.

，
