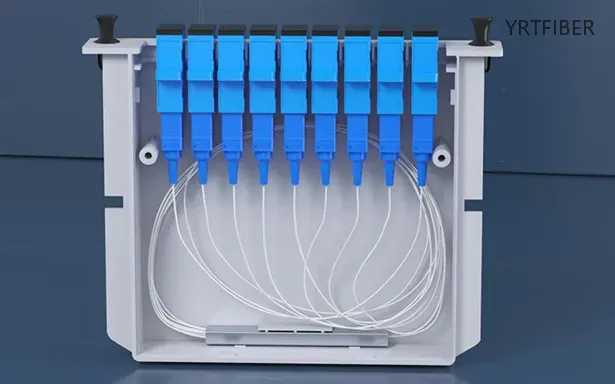

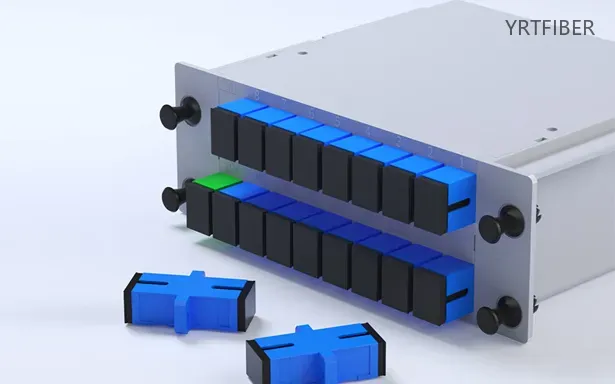

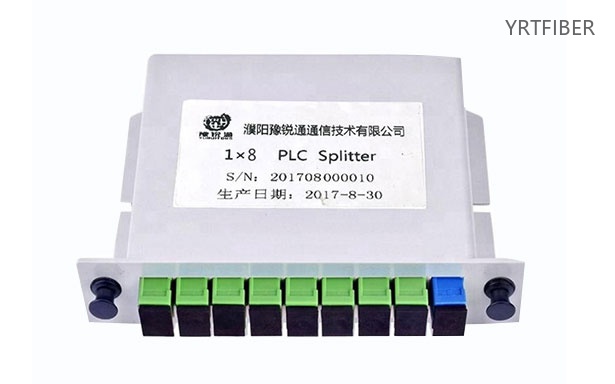

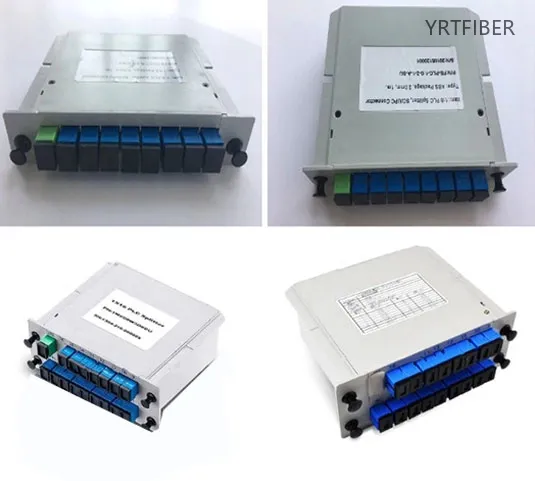

Plug‑in Cassette PLC Splitter ABS Box Singlemode G652D/G657A Custom Ports
Plug‑in cassette module that snaps into ABS box assemblies.
Supports **singlemode G652D and G657A** for reliable long-distance transmission.
Default SC/APC connector on 2.0mm pigtail; optional LC, FC, ST and UPC/APC upon request.
Low insertion loss, high uniformity, and consistent optical performance.
What is Plug‑in Cassette PLC Fiber Splitter
This plug‑in cassette PLC splitter is designed for easy installation into ABS enclosure systems. It supports **singlemode G652D and G657A** fibers and is pre-connected with SC/APC connectors by default. Customers may choose **LC, FC, or ST connectors** and **UPC or APC polishing** based on their system requirements.
c Specification parameters
- Specification parameters
- OPTICAL CHARACTERISTICS
| Loss Uniformity (dB) Max. | 0.6 ~ 2.2 (based on split ratio) |
| Directivity (dB) Min | 55 |
| Return Loss (dB) Min | 55 |
| Wavelength Dependent Loss (dB) Max | 1.0 |
| Operating Temperature (°C) | -40 ~ +85 |
| Storage Temperature (°C) | -40 ~ +85 |
| Optical Input Power Max | 300mW |
| Fiber Length | 1.0m or as your requirement |
| Splitter Type | Insert Type / Cassette Type / Mini PLC Splitter |
| Connector Type | SC UPC, SC APC, or Custom Ports |
| Polishing Type | UPC, APC |
| Fiber Type | Single-mode, Multi-mode |
| Note: All above specifications do not include connector loss and adaptor loss. | |
| PLC Splitter Type | Box Type (mm) | Mini Type (mm) | Cassette Type (mm) |
|---|---|---|---|
| 1 x 2 | 100 x 80 x 10 | 60 x 7 x 4 | 130 x 100 x 25 |
| 1 x 4 | |||
| 1 x 8 | |||
| 1 x 16 | 120 x 80 x 18 | 60 x 12 x 4 | 130 x 100 x 50 |
| 1 x 32 | 80 x 20 x 6 | 130 x 100 x 102 | |
| 1 x 64 | 140 x 114 x 18 | 100 x 40 x 6 | 130 x 100 x 200 |
| 2 x 2 | 100 x 80 x 10 | 60 x 7 x 4 | 130 x 100 x 25 |
| 2 x 4 | |||
| 2 x 8 | |||
| 2 x 16 | 120 x 80 x 18 | 60 x 12 x 4 | 130 x 100 x 50 |
| 2 x 32 | 80 x 20 x 6 | 130 x 100 x 102 | |
| 2 x 64 | 140 x 114 x 18 | 100 x 40 x 6 | 130 x 100 x 200 |
Product Structure & Composition

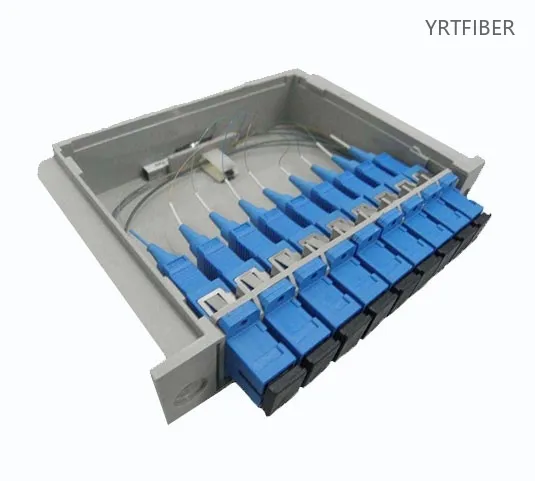

The Plug - in Cassette PLC Fiber Splitter consists of a PLC chip, which is the core component for optical splitting. The PLC chip is fabricated using semiconductor manufacturing techniques to create precise optical waveguides. These waveguides split the incoming optical signal according to the designed splitting ratio. The chip is housed in a compact cassette. The cassette has fiber ports for connecting input and output fibers. These ports are designed to ensure proper fiber alignment and connection. Additionally, the cassette is designed to be easily plugged into a compatible fiber optic distribution panel or rack - mounted enclosure.
Benefits of c
Easy Integration
The plug - in cassette design of the PLC fiber splitter allows for seamless integration into existing fiber optic distribution systems. It can be quickly installed or removed from a panel or enclosure, making network expansion and maintenance straightforward.
High - precision Splitting
Thanks to the Planar Lightwave Circuit technology, the splitter offers high - precision optical splitting. This ensures accurate and consistent distribution of optical power among the output ports, which is crucial for maintaining signal integrity in high - performance fiber optic networks.
Flexible Splitting Ratios
With various splitting ratios available, such as 1:2, 1:4, 1:8, etc., the splitter can be tailored to different network scenarios. Whether it's for a small - scale local area network or a large - scale fiber - to - the - home deployment, the appropriate splitting ratio can be selected.
Engineering Applications c
1. Central Office & FTTx Headend

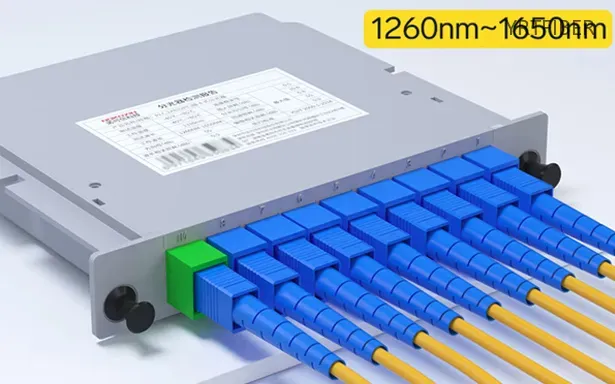

In COs and FTTx headends, the plug‑in cassette splitter acts as the primary splitting stage, fanning out one feeder to multiple PON ports. Its LGX‑compatible, hot‑swappable design fits 19″ shelves and supports GPON/XG‑PON with low loss over 1260-1650 nm.
2. Data Center & Enterprise
In data centers, it duplicates signals for active monitoring or dual‑path redundancy. Front‑panel access enables fast re‑configuration without disturbing adjacent fibers, saving rack space and minimizing downtime in high‑density environments.
3. CATV & Private Networks
For CATV headends and corporate campuses, it evenly distributes broadcast video or centralized services to multiple zones. High return loss and low PDL preserve signal quality, while Telcordia‑rated reliability ensures uninterrupted operation in hospitals and banks.
4. Field Testing & Surveillance
In network monitoring, the splitter taps live traffic for performance analysis or OTDR testing without service interruption. Its rugged cassette operates from ‑40°C to 85°C, serving as either a permanent fixture or a portable tool for carrier‑grade maintenance.
Shipping & Packaging
Please contact the sales manager for specific shipping costs
Product Comparison：
Assume comparison with a Fused Biconical Taper (FBT) Fiber Splitter:
| Feature | Plug - in Cassette PLC Fiber Splitter | FBT Fiber Splitter |
|---|---|---|
| Splitting Technology | Planar Lightwave Circuit (PLC) | Fused Biconical Taper (FBT) |
| Installation | Plug - in cassette for easy integration in panels | May require more complex installation, especially for fusion splicing |
| Splitting Precision | High - precision splitting due to PLC technology | Good precision, but PLC may be more consistent in mass production |
| Insertion Loss | Low, comparable to FBT in many cases | Low, but may vary slightly depending on the manufacturing process |
| Flexibility in Splitting Ratios | Wide range of splitting ratios easily available | Limited in some cases, especially for high - order splitting ratios |
| Cost for High - density Applications | May be more cost - effective for high - density setups | Cost - effective for small - scale or long - distance applications |
c Selection Guide
When choosing a fiber splitter, if your network demands easy installation, high - precision splitting, and a wide range of splitting ratios, especially in high - density applications like data centers or large - scale FTTH networks, the Plug - in Cassette PLC Fiber Splitter is a great option. However, if your application requires long - distance transmission with a simple and cost - effective solution, and you don't mind a more complex installation process like fusion splicing, a FBT Fiber Splitter might be more suitable.
Installation instructure of Plug‑in Cassette PLC Fiber Splitter
Panel Preparation
Select a suitable fiber optic distribution panel or rack - mounted enclosure. Ensure that the panel has the appropriate slots or mounting positions for the plug - in cassette. Clean the panel and remove any dust or debris from the installation area.
Insertion of the Cassette
Align the plug - in cassette with the designated slot in the panel. Gently push the cassette into the slot until it locks into place. Make sure the cassette is firmly seated and there is no loose movement.
Fiber Connection
Connect the input fiber to the appropriate input port of the splitter cassette. Then, connect the output fibers to the corresponding output ports. Use proper fiber handling techniques to ensure accurate alignment and secure connections. For single - mode fibers, use a fiber cleaver to create clean ends before connection.
Download YRTFIBER Product Catalog
Factory Real Shot
Frequently Asked Questions & Quick Inquiry
c FAQ
Q1: What fiber type does this plug‑in cassette support?
A1: It supports singlemode G652D and G657A, ideal for long-distance and stable network deployment.
Q2: Can I customize the connector type?
A2: Yes, default is SC/APC, while LC, FC, ST and polish types UPC or APC are available on request.
Q3: What is a plug‑in cassette design?
A3: A slot-in module for ABS enclosures allowing tool-free swapping or easy: cassette-based access in fiber distribution enclosures.
Q4: What are the advantages of this design?
A4: Fast replacement or upgrade without re-splicing; compact, modular, and easy to maintain.
Q5: Do you offer after-sales services?
A5: Yes—2 years warranty, 3 month free return policy, 1 year free maintenance, plus OEM and connector customization support.
Can the Plug - in Cassette PLC Fiber Splitter be used for both indoor and outdoor applications?
The splitter is typically designed for indoor use in protected environments like cabinets or racks. For outdoor use, it should be installed in a weather - proof enclosure to protect it from environmental factors.
What is the maximum number of output ports available in a Plug - in Cassette PLC Fiber Splitter?
Commonly, splitting ratios can go up to 1:64 or even higher in some advanced models, providing a large number of output ports for extensive network distribution.
How do I maintain the Plug - in Cassette PLC Fiber Splitter?
Regularly check the fiber connections for any signs of damage or loose fittings. Clean the fiber ports using a lint - free swab and isopropyl alcohol if necessary. Also, monitor the optical performance parameters like insertion loss and return loss periodically.
