YRT Fiber manufactures armored fiber patch cables for harsh environments. Our LC, SC, ST armored jumpers offer protection performance. Buy factory-direct.
  • Product ModelArmored Patch Cord
  • Outer JacketLSZH/PVC
  • ConnectorTypeLC/SC/ST/FC,APC/UPC

Armored Fiber Patch Cables for Harsh Environments

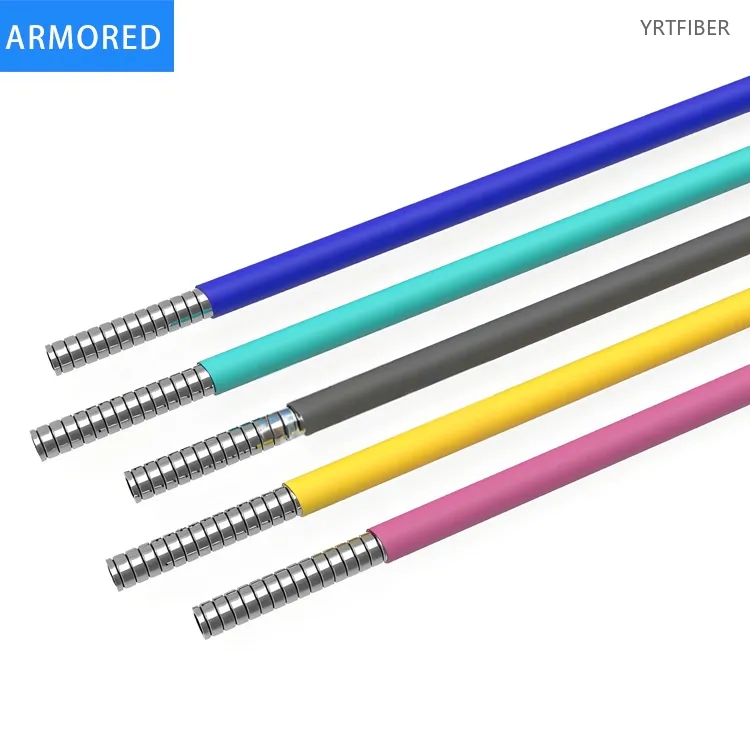

This assembly protects the optical path with an interlocking stainless steel or aluminum armor under a low-smoke outer jacket. It is used where a cord is exposed to rodents, abrasion, crushing or repeated handling: industrial control cabinets, machine tools, cell sites, oil and gas installations, military shelters and outside-plant pedestals.

The armor is a mechanical layer only — it does not change the optical performance of the fiber. Insertion loss and return loss are set by the connector and fiber type and are measured on every assembly. LC, SC, ST, FC and MPO connectors with OS2, OM3, OM4 or OM5 fiber are available; length and jacket material are made to order.

 Specification parameters

SINGLE FERRULE CONNECTOR SPECIFICATION

ParametersIL – MaxIL – TypicalRL (PC/APC)
SM – Standard≤ 0.30 dB≤ 0.20 dB> 55/65 dB
SM – Premium≤ 0.15 dB≤ 0.12 dB> 55/65 dB
MM – Standard≤ 0.30 dB≤ 0.18 dB> 28 dB
MM – Premium≤ 0.15 dB≤ 0.08 dB> 28 dB

CABLE CHARACTERISTICS

Cable CharacteristicsUnitsValue
Cable Material
LSZH/PVC
Cable Diametermm1F – 3.0 / 2F – 3.3
Strength Member
Aramid Yarn
Max. Crush ResistanceN/100mm3000
Max. Tensile LoadN300
Operating Temperature˚C-25 ~ +70

Product Structure & Composition

Construction

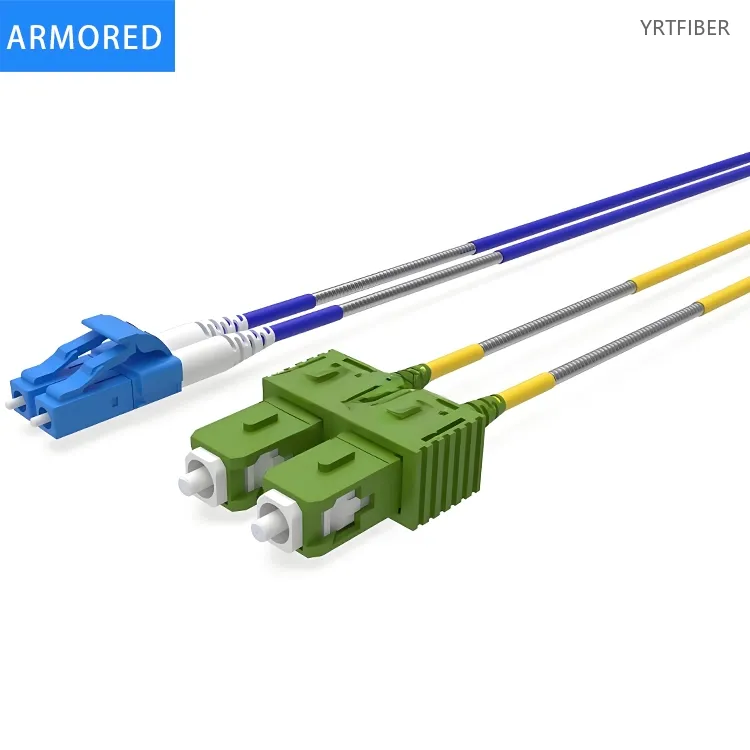

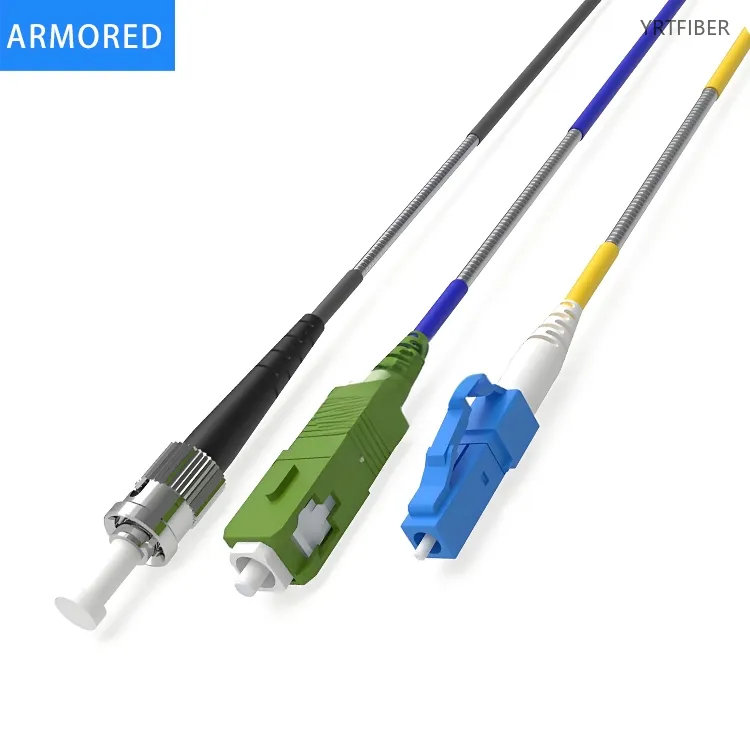

  • Connector — LC / SC / ST / FC / MPO, PC or APC end face, zirconia ceramic ferrule.
  • Strength member — aramid yarn carries the tensile load so the fiber and the armor do not.
  • Armor — interlocking stainless steel or aluminum tube, resistant to crushing and rodent attack.
  • Outer jacket — LSZH by default, PU for outdoor and repeated flexing.
  • Fiber — OS2 G.652D / G.657A2 single-mode, or OM3 / OM4 / OM5 multimode.

Benefits of

Features

  • Crush and rodent protection — the interlocking armor absorbs mechanical abuse that would break an ordinary cord.
  • Stable performance under pull load — aramid strength members keep the fiber free of strain when the cord is pulled through conduit.
  • LSZH jacket — low smoke, halogen-free, suitable for indoor cabinets and tunnels.
  • Tested assembly by assembly — insertion loss and return loss are measured and reported, and both end faces are inspected before packing.

Engineering Applications

Protected Equipment Connections

Use the specified armoured cord between equipment and a patch panel where the route needs cable protection. Match the fibre type, connector and polish to both ports. Armour does not change the optical compatibility.

Exposed Patch Routes

Route the cord with strain relief and the specified bend radius. Protect the connector ends as well as the cable. Use a cable rated for the environment where the route is outdoors, wet or buried.

 Selection Guide

Installation notes

  • Pull on the jacket or the aramid yarn, never on the connector housing.
  • Respect the bend radius for the cable diameter — armored cords still break the fiber if bent too tightly.
  • Clean and inspect both end faces before mating; a single dust particle can use up the loss budget.
  • Do not use the armor as a grounding conductor unless the assembly is specified and tested for that purpose.

Download YRTFIBER Product Catalog

QUICKLY DOWNLOAD THE CATALOG
To save your time, please download our catalog

Ordering & Delivery

Minimum order, lead time and the documents that ship with every order.

Ordering

  • Minimum orderPer model, confirmed with the order
  • Lead timeConfirmed with the order
  • PaymentT/T 30% deposit, balance against B/L copy. L/C at sight accepted.
  • InspectionFactory test report plus spot check on arrival. Third-party witness adds 7 working days.

How to order

  1. 1Send your specification and quantity.
  2. 2Quotation and datasheet within 24 hours.
  3. 3Confirm the PI, pay the deposit, production starts.

Delivery & loading

  • Port of shipmentQingdao · Guangzhou · Shenzhen
  • PackingExport carton with protective inner packing. Carton size confirmed with the order.

Documents with shipment

  • Mill test certificate
  • OTDR trace for every drum (bi-directional, 1310/1550 nm)
  • Drum no. / length / attenuation table
  • Packing list with gross and net weight
  • RoHS declaration and CE DoC
  • Lifting instructions

Packing & marking for this model

Armored Fiber Optic Patch Cables for Extreme Environments(Image1) Armored Fiber Optic Patch Cables for Extreme Environments(Image2)

Frequently Asked Questions & Quick Inquiry

  FAQ

Does the armor change optical performance?

No. The armor is a mechanical layer outside the fiber. Insertion loss and return loss are determined by the connector and fiber type, and are measured on the finished assembly.

What bend radius can I use?

It depends on the outer diameter and the jacket material. Tell us the installation route and we will confirm the minimum radius for that construction on the drawing.

Can length and connector type be customized?

Yes. Length, connector combination, fiber type and jacket material are all made to order. Send the specification and we return a drawing for approval before production.

Is it suitable for outdoor use?

With the PU jacket and sealed connectors, yes for exposed outdoor runs; for direct burial or long-term water immersion ask for the outdoor variant instead.

What is the minimum order quantity and lead time?

MOQ and lead time depend on the connector combination and length mix. Confirm with our sales team for the specific configuration.
