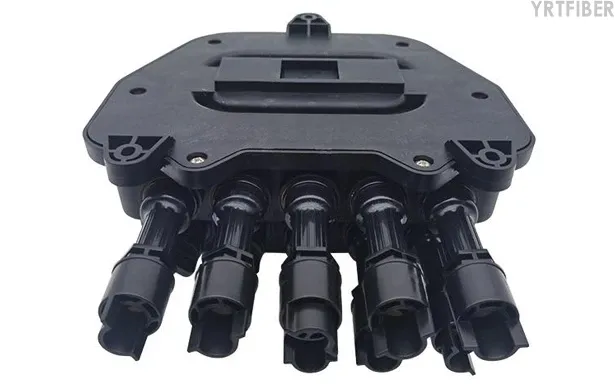

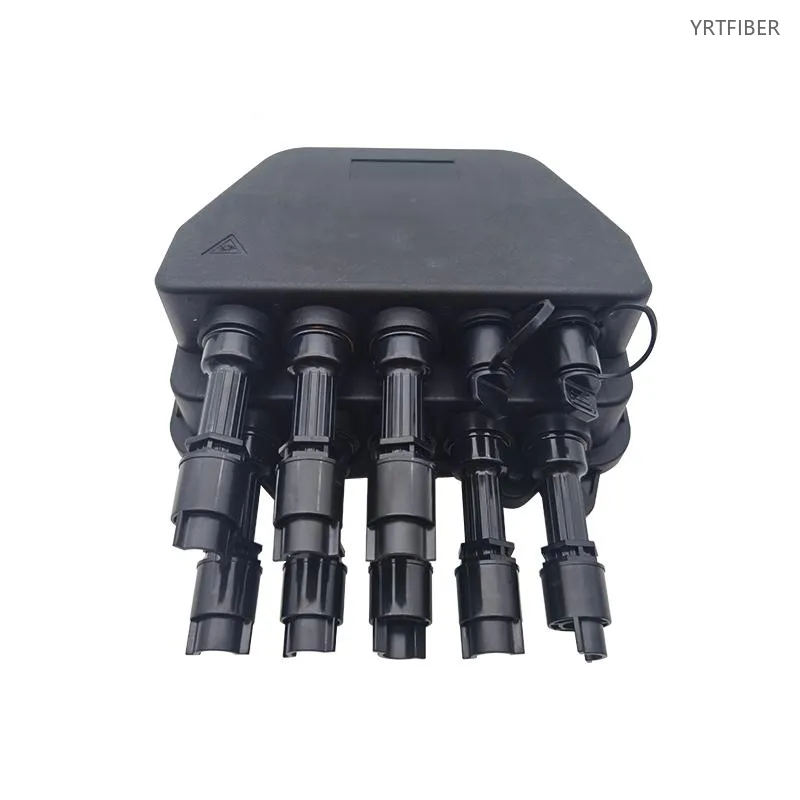

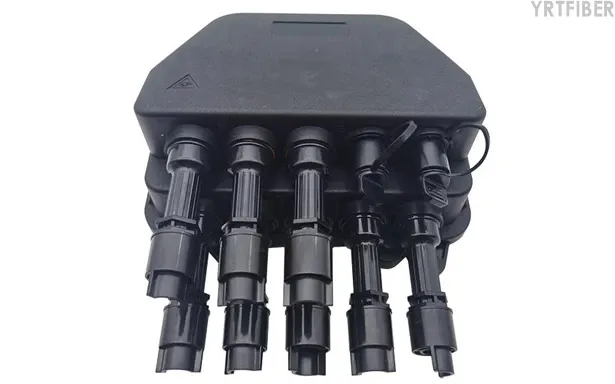

8-Port Fiber Distribution Box – Small FTTH Enclosure for Wall or Pole Mounting
FTTH/FTTB and small distribution points.
8 ports for low‑capacity access.
Integrates splicing, termination, storage, and protection.
Connects feeder, distribution, and drop cables.
SC adapters optional.
PLC splitter compatible.
Compact for walls, corridors, cabinets.
Maintains bend radius, reduces loss.
Organized cable entry and routing.
Wall or pole mount.
Durable against dust, moisture, impacts.
Ideal for homes, villas, shops, small offices, ISP FTTH.
What is an 8-Port Fiber Distribution Box?
An 8-Port Fiber Distribution Box is a compact fiber optic enclosure used to splice, terminate, protect and distribute optical fibers in FTTH and last-mile access networks. It provides up to 8 fiber output ports, making it suitable for small user groups, home access points, villas, shops, small offices and low-density fiber distribution applications.
8-Port Fiber Distribution Box Specification parameters
- Specification parameters
- OPTICAL CHARACTERISTICS
| Name | Size | Weight (kg) | Packing Quantity (Qty) |
|---|---|---|---|
| 8-core splitter box Quick plug | 210×175×87MM |
Product Structure & Composition
Outer Enclosure: Protects fibers from dust, moisture, and impact; available in various materials for indoor/outdoor use.
Cable Entry and Fixing: Secures feeder and drop cables with clamps to relieve tension.
Splice Protection: Stores fusion splices and sleeves, keeping fiber routing clean and stable.
Adapter Panel: Provides up to 8 ports, configurable with SC, LC, APC, or UPC adapters.
Fiber Routing and Storage: Guides and stores excess fiber to prevent bending, crossing, and damage.
PLC Splitter Area: Supports small PLC splitter to split one feeder into multiple subscriber lines.
Benefits of 8-Port Fiber Distribution Box
1. Compact 8‑Port Design for Small Spaces / Cost‑Effective & Durable Last‑Mile Access
Ideal for homes, villas, and small shops – fits easily into wall corners, corridors, or outdoor poles without wasting capacity. Provides a low‑cost solution for low‑density FTTH nodes, while the rugged enclosure protects fibers from dust, moisture, and mechanical stress for reliable long‑term operation.
2. Integrated Functions & Flexible Configuration
Combines splicing, termination, cable storage, and protection in one unit; supports SC/LC adapters and optional PLC splitters, with clear routing for simple maintenance.
Engineering Applications 8-Port Fiber Distribution Box

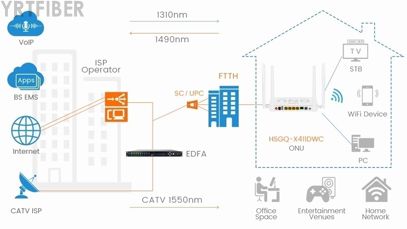

FTTH Home Access Point
In fiber-to-the-home networks, the 8-port fiber distribution box can be used as a small access point between feeder cables and subscriber drop cables. It is suitable for connecting several home users from one compact enclosure.

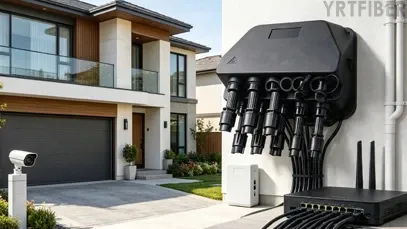

Villa and Low-Density Residential Network
For villas, small residential areas and low-density buildings, this box provides a simple and organized fiber distribution point. It helps protect fiber connections while keeping the installation compact and easy to maintain.

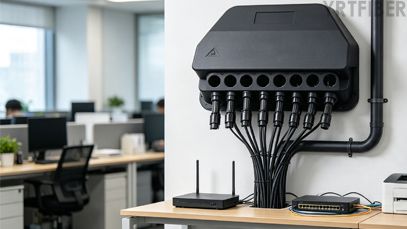

Small Office and Shop Network
In small offices, shops and commercial units, the 8-port fiber distribution box can be used to manage fiber access for broadband services, network equipment and communication terminals. Its compact size makes it suitable for indoor wall-mounted installation.
Shipping & Packaging
Product Comparison：
8-Port Fiber Distribution Box vs 16-Port Fiber Distribution Box
| Feature / Dimension | 8-Port Fiber Distribution Box | 16-Port Fiber Distribution Box |
|---|---|---|
| Port Capacity | Supports up to 8 fiber distribution ports. | Supports up to 16 fiber distribution ports. |
| Best Application | Suitable for homes, villas, shops, small offices and low-density FTTH access points. | Suitable for small buildings, small residential networks and access points with more users. |
| Installation Space | Very compact and easy to install in narrow or limited spaces. | Still compact, but usually larger than an 8-port box. |
| Network Expansion | Suitable for projects with limited user numbers and simple future expansion needs. | Provides more reserved capacity for future subscriber growth. |
| Cable Management | Easier to manage when only a few drop cables are required. | Better for managing more subscriber lines in one enclosure. |
| Splitter Configuration | Suitable for small splitter configurations depending on internal design. | Can support larger splitter configurations depending on box structure. |
| Cost Position | More economical for very small access projects. | Higher initial cost than 8-port models but offers more capacity. |
| Maintenance | Simple maintenance due to low port density and clear fiber routing. | Still easy to maintain, but requires more careful routing as port quantity increases. |
| Recommended Use | Choose when compact size, low cost and small-capacity distribution are the priority. | Choose when the project needs more ports and better expansion capacity. |
8-Port Fiber Distribution Box Selection Guide
Choose the 8-Port Fiber Distribution Box for Small User Groups
If the project only needs to serve a few users from one fiber access point, the 8-port fiber distribution box is a practical choice. It provides essential fiber splicing, termination and protection functions without unnecessary extra capacity.
Choose 8 Ports When Installation Space Is Very Limited
For small walls, home access points, shops, villas, narrow corridors and compact outdoor installation locations, an 8-port enclosure is easier to install and maintain. It is a good option when the available mounting area is limited.
Choose 16 Ports for More Future Expansion
If the project may need to connect more users later, or if the access point serves a small building with more subscriber lines, a 16-port fiber distribution box may be more suitable. It provides more reserved capacity while still keeping a relatively compact structure.
Confirm Adapter Type, Splitter Requirement and Installation Environment
Before selecting the product, confirm the required adapter type, such as SC, LC, SC/APC or SC/UPC. Also check whether PLC splitters need to be installed inside the box and whether the installation environment is indoor, outdoor, wall-mounted or pole-mounted.

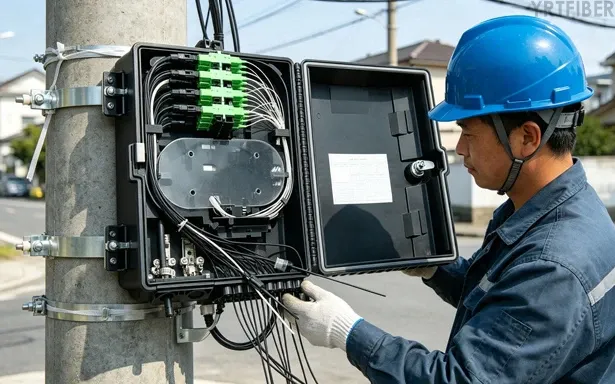

How to Install 8 Ports fiber optic Distribution Box
Preparation and Installation: Inspect the enclosure and accessories, select a suitable location (wall, pole, corridor, etc.), ensure sufficient space, and then securely fix the enclosure.
Cable Drop and Securing: Insert the trunk cable and drop cable into the inlet, secure them with clamps, and avoid stress on the fiber optic cable.
Splicing and Connection: Splice the fiber optic cables according to the plan, place the splice point in the protected area, maintain the bending radius, install the adapter and splitter, and clearly label each port.
Testing and Shutdown: Test the optical path continuity and insertion loss. After confirming that everything is correct, shut down the enclosure. For outdoor installations, ensure it is sealed.
Download YRTFIBER Product Catalog
Factory Real Shot
Frequently Asked Questions & Quick Inquiry
8-Port Fiber Distribution Box FAQ
Q1: Can this box be mounted outdoors? Is it weatherproof?
Yes—constructed with UV-resistant ABS and IP65/IP66-rated protection, it withstands outdoor conditions reliably.
Q2: What type of adapters and splitter can it support?
Supports up to 8 SC or LC adapters, and can optionally include mini PLC splitters (1×4 or 1×8).
Q3: How does it manage fiber cables inside?
Includes splice trays and cable routing paths to maintain safe bend radii and organized terminations for easy service.
Q4: What mounting options are available?
Compatible with both wall and pole mounting, perfect for deployment in varied FTTH scenarios.
Q5: Where is this distribution box commonly used?
Widely used in FTTH, telecom, CATV, and building LAN infrastructure for compact and durable fiber termination.
