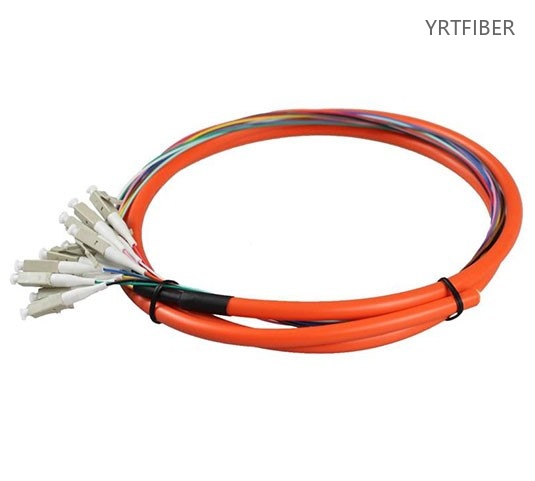

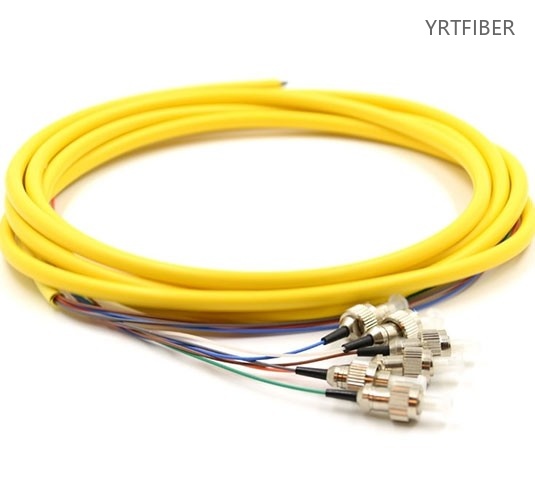

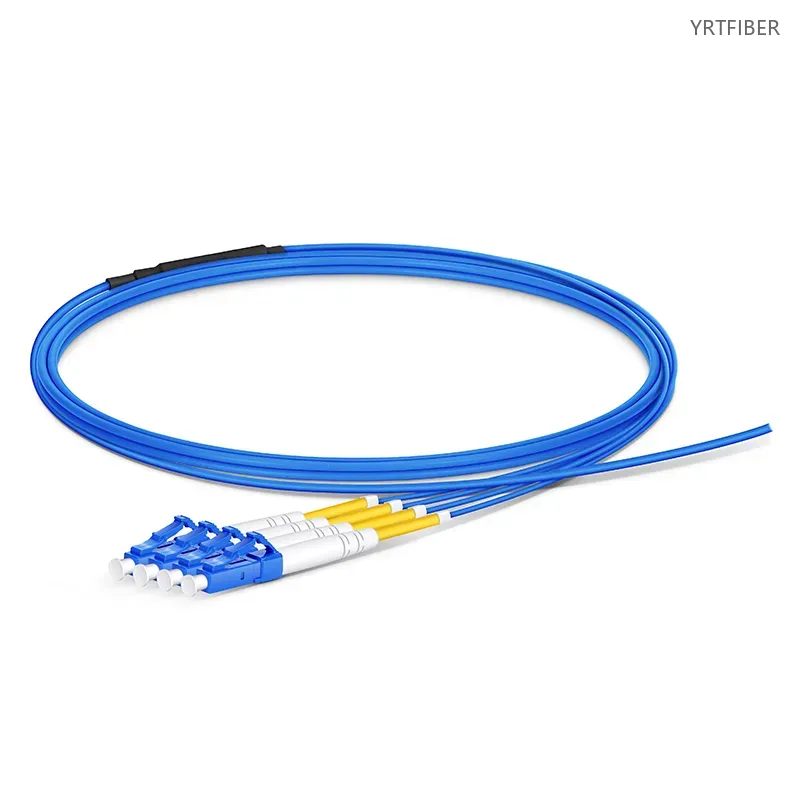

12-core pigtail (single-mode/multi-mode) | Factory pre-terminated, low loss, suitable for ODF/data center fast splicing
12-core fiber bundle designed for efficient and fast splicing.
High-quality, low-loss fibers ensure optimal performance and signal integrity.
Available with various connector options (SC, LC, FC, ST, MTRJ) and fiber types (singlemode, multimode).
Factory-terminated for quick installation with minimal preparation time.
Low insertion loss and high return loss, ensuring reliable and long-lasting connections.
What is 12-core pigtail
Our 12-core fiber bundle pigtails provide high-density fiber optic connections for a wide range of applications. These pigtails are designed for fast and reliable splicing in telecom networks, data centers, and fiber optic systems. The bundle is factory terminated and ready for easy integration into fiber distribution frames (ODFs) and other network equipment.
Designed for high-density cabling and batch deployment scenarios, this 12-core pigtail supports single-mode (G652D/G657A) and multimode (OM1–OM4) fiber and offers a variety of termination options, including SC, LC, FC, ST, and MTRJ. Pre-terminated and fully inspected at the factory, it offers low insertion loss and excellent echo performance. On-site deployment requires only quick fusion splicing or docking, significantly reducing construction and cutover time. The compact and clearly labeled fiber bundles facilitate cable management and maintenance within ODFs, cabinets, and trays, making it widely applicable to fiber optic systems requiring stable and reliable performance, such as data center expansion, telecom backbones, and FTTH access.
12-core pigtail Specification parameters
- Specification parameters
- OPTICAL CHARACTERISTICS
| Fiber Count | LC/SC/ST/FC bundle pigtail | Fiber Type | SM(G652/G657A)/Multimode OM1(62.5/125)/OM2(50/125) OM3(50/125) |
| Jacket Material | LSZH/PVC | Connector Type | LC/SC/ST/FC, APC/UPC |
| Ferrule Material | Ceramic | Cable Dimension | 0.9mm, 2.0mm, 3.0mm |
| Cable Color | Single Mode Yellow, OM1/OM2 Orange, OM3 Aqua | Testing Wavelengths | 1310±30/1550±30nm/850±30/1300±30nm |
| Insertion Loss(dB) | ≤ 0.3dB | Return Loss(dB) | ≥50dB |
| Operating Temperature (°C) | -10 ~ +70 | Storage Temperature (°C) | -40 ~ +85 |
| Package | Poly Bag | Length | Customize |
Product Structure & Composition
Fiber Types
• Singlemode (G652D, G657A) or Multimode (OM1. OM2. OM3. OM4)
Core Count
• 12 cores in a single bundle
Connector Options
• SC, LC, FC, ST, MTRJ (customized connectors available upon request)
Benefits of 12-core pigtail

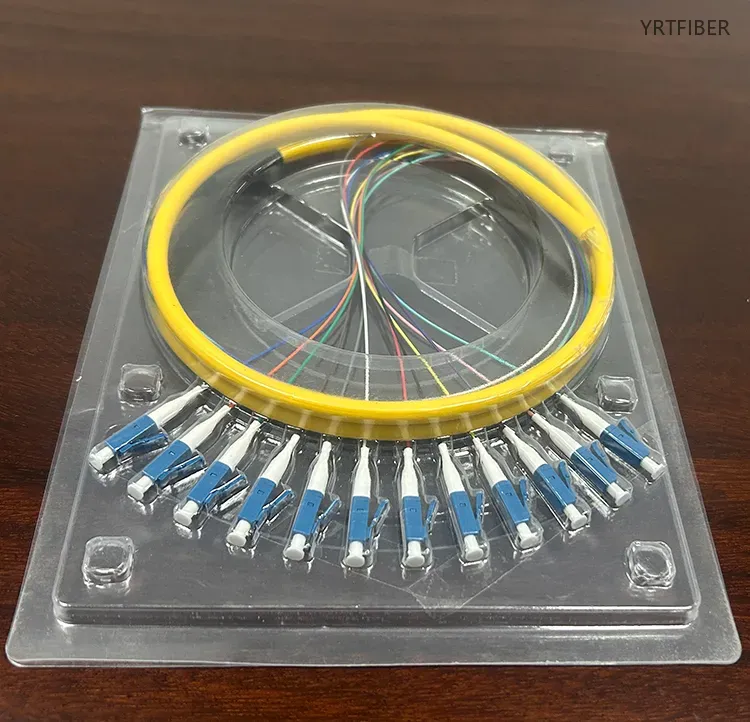

12-fiber LC/UPC simplex breakout pigtail assembly (yellow jacket, likely OS2 9/125 µm single-mode), with color-coded fan-out fibers.
12-fiber LC/UPC simplex breakout pigtail assembly (yellow jacket, likely OS2 9/125 µm single-mode), with blue protective boots and color-coded fan-out fibers.

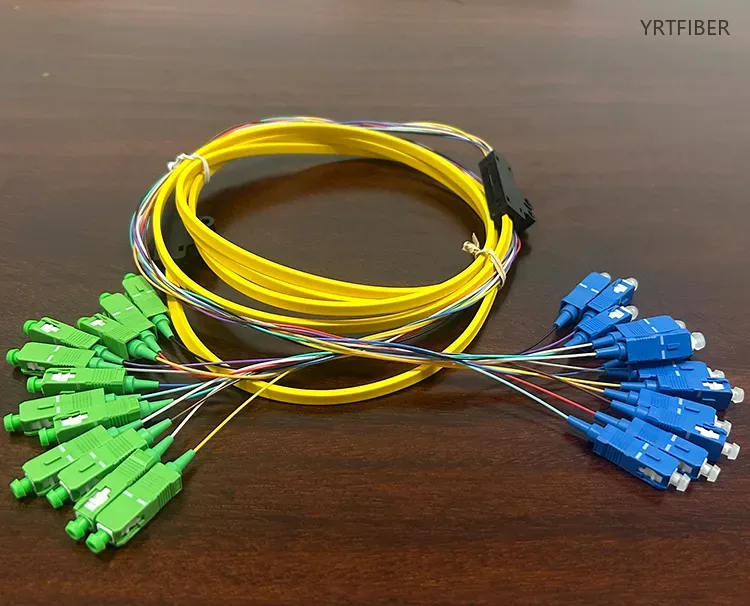

SC/APC to SC/UPC 12-fiber simplex breakout (harness) single-mode OS2 9/125 µm patch cord, with 12 green SC/APC connectors on one end and 12 blue SC/UPC connectors on the other.
Engineering Applications 12-core pigtail
Fiber optic splicing in high-density networks

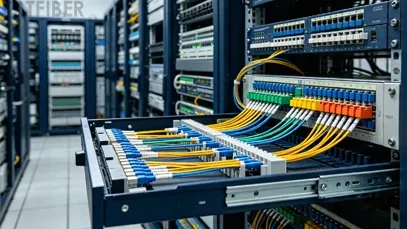

Data center fiber optic installations
Telecom network backbone and FTTH (Fiber to the Home) applications
Fiber distribution frames (ODFs), patch panels, and telecom equipment
Shipping & Packaging
Product Comparison：
12-core pigtail Selection Guide
12-Core Pigtail Installation Instructions
Prepare – Strip 30–40mm of the main cable jacket; strip the pigtail’s buffer tube to expose the 12 color-coded fibers.
Clean – Inspect and clean all connector ferrules with lint-free wipes and isopropyl alcohol.
Splice – Match fibers by color, cleave precisely, and fusion splice each core to the corresponding main cable fiber.
Secure – Organize splices in the tray/cassette, route with gentle bends (avoid sharp bends), and secure with cable ties.
Test – Verify insertion loss and return loss with an optical power meter and light source.
Safety: Wear safety glasses; work in a clean, dust-free environment.
Download YRTFIBER Product Catalog
Factory Real Shot
Frequently Asked Questions & Quick Inquiry
12-core pigtail FAQ
Q1: What are fiber bundle pigtails used for?
A1: Fiber bundle pigtails are used for fast and efficient splicing in high-density fiber optic networks, such as telecom, data centers, and FTTH installations.
Q2: How many cores do these pigtails have?
A2: These fiber bundle pigtails have 12 cores for high-density applications.
Q3: What types of fiber are available for these pigtails?
A3: Available in both singlemode (G652D, G657A) and multimode (OM1. OM2. OM3. OM4) fibers.
Q4: Can I customize the connector type for fiber bundle pigtails?
A4: Yes, connectors such as SC, LC, FC, ST, MTRJ are available, and custom options can be made upon request.
Q5: Are these pigtails factory-terminated?
A5: Yes, our 12-core fiber bundle pigtails are factory-terminated for fast and easy installation with minimal preparation time.
