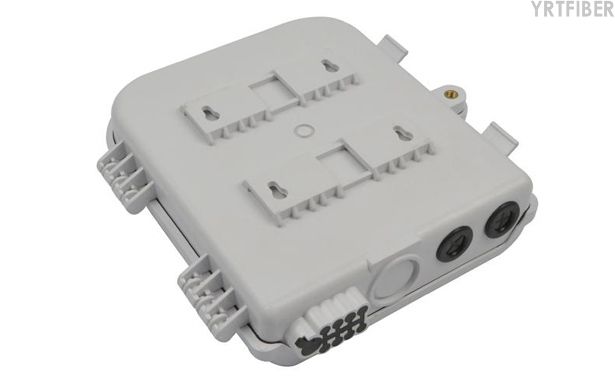

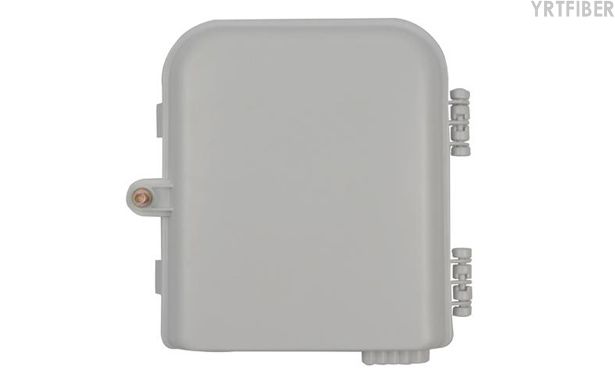

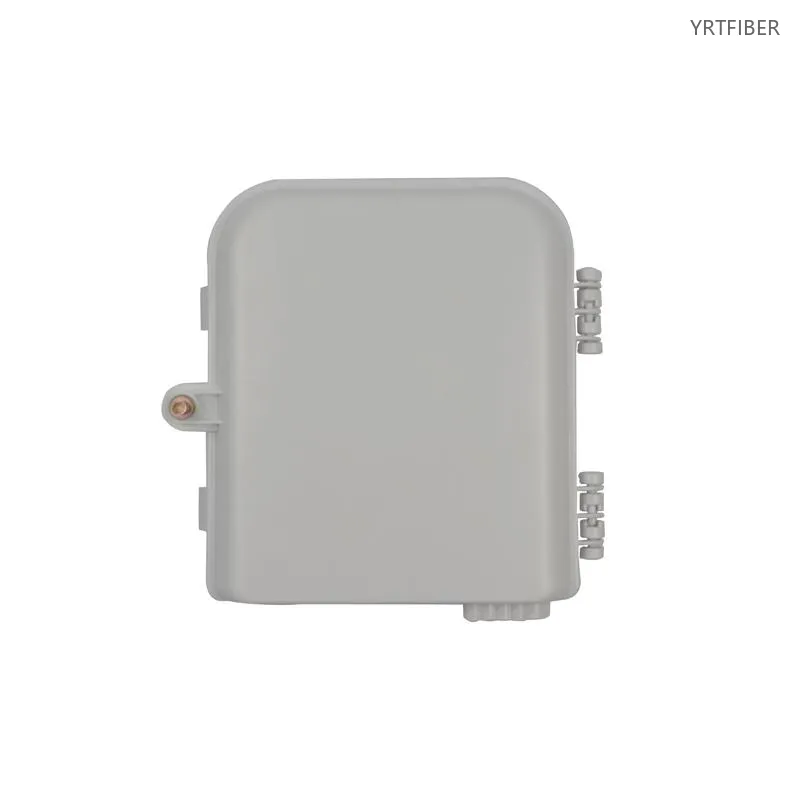

8-Port Fiber Terminal Box – Compact Indoor/Outdoor Enclosure for FTTH Drop Cable Termination
FTTH/FTTB and last‑mile fiber access.
Up to 8 output ports for drop cables.
Integrates splicing, termination, storage & protection in a compact box.
Connects feeder, distribution & drop cables.
Supports SC/LC/APC/UPC or other adapters as required.
Optional PLC splitter (depending on internal structure).
Compact for tight installation spaces.
Internal routing ensures bend radius and low loss.
Wall or pole mount (model‑dependent).
Ideal for homes, villas, shops, offices, residential buildings, and ISP FTTH.
What is an 8 Ports Fiber Terminal Box?
An 8 Ports Fiber Terminal Box is a compact fiber optic enclosure used to splice, terminate, protect and manage optical fibers in FTTH access networks. It provides up to 8 output ports for drop cable connection, making it suitable for small user groups and low-density fiber distribution points.
8 Ports Fiber Terminal Box Specification parameters
- Specification parameters
- OPTICAL CHARACTERISTICS
| Name | Size | Weight (kg) | Number of Packages per Piece (pcs) |
|---|---|---|---|
| 8-Core fiber (white, black circle) | 210×180×50 | 0.7 | 30 |

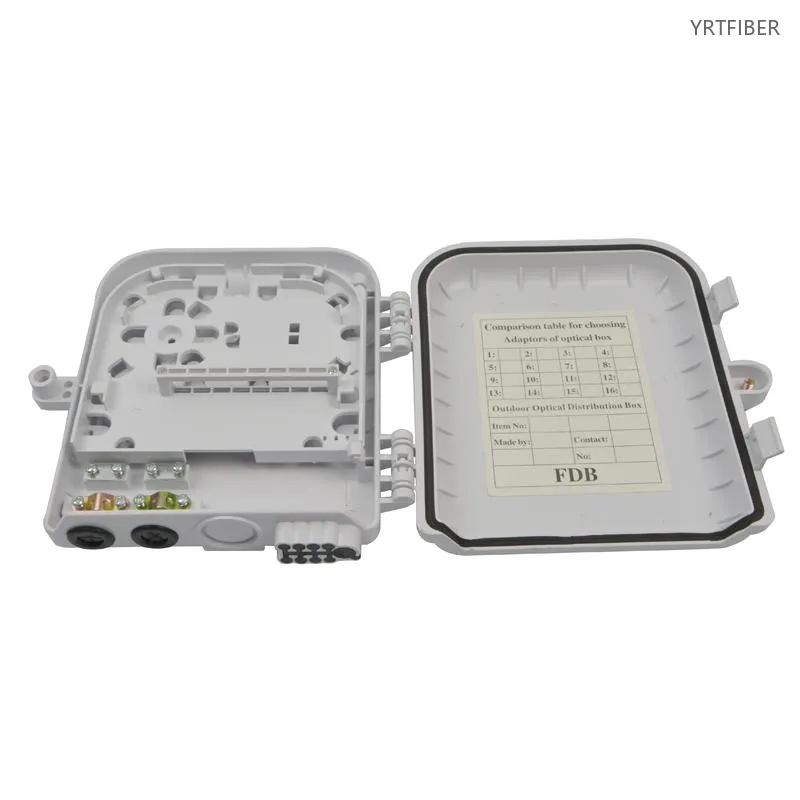

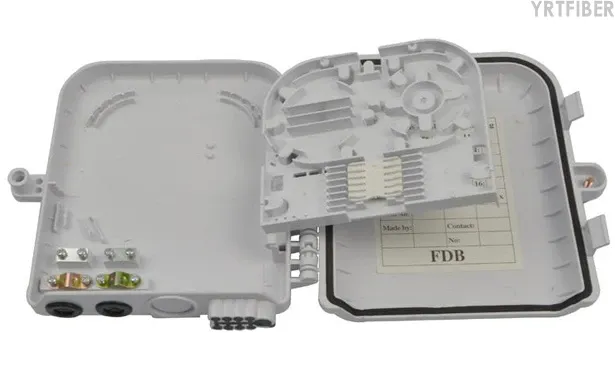

Product Structure & Composition
Outer Enclosure: Protects fibers from dust, moisture, and impact; suitable for indoor/outdoor use.
Cable Entry Area: Allows safe cable entry and reduces pulling force with fixing parts.

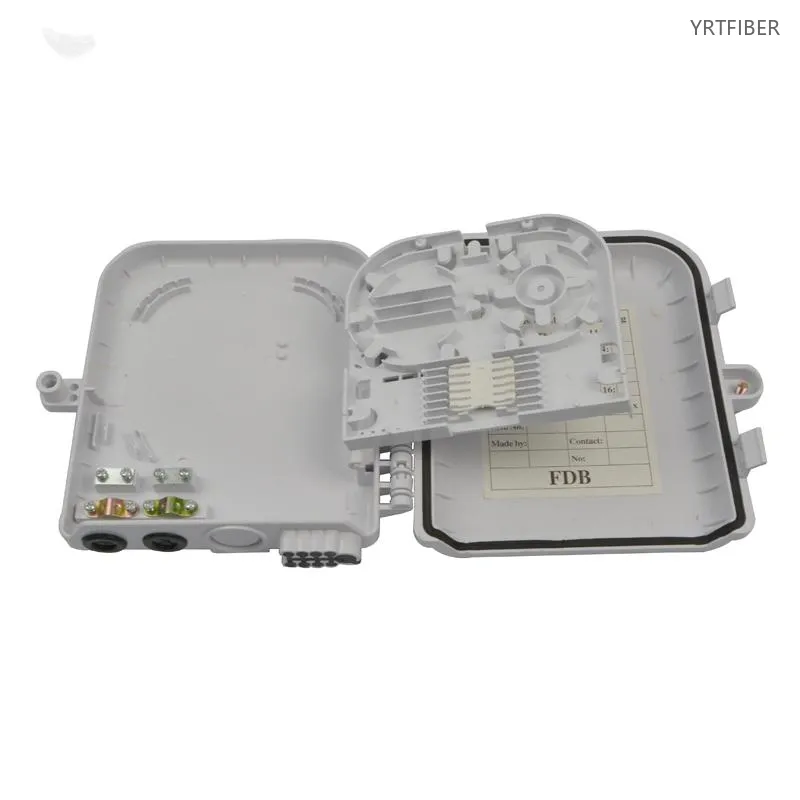

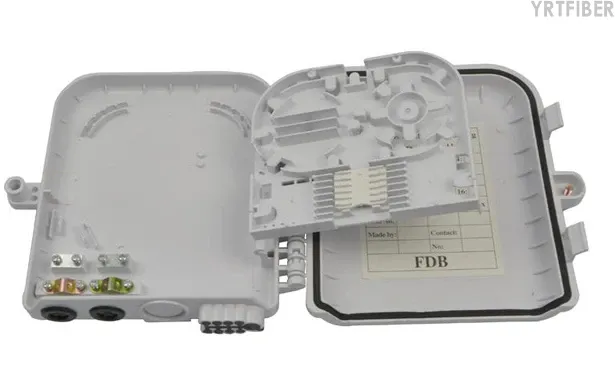

Splice Tray: Stores and protects fusion splices while keeping routing neat.
Adapter Panel: Supports up to 8 ports with SC, LC, or other adapter types.
Splitter & Storage Area: Accommodates a small PLC splitter and spare fiber storage for FTTH.
Benefits of 8 Ports Fiber Terminal Box
Compact 8-Port FTTH Access Design
The 8-port design is ideal for small FTTH access points where only a limited number of subscriber connections are required. It provides essential termination and protection functions without unnecessary extra capacity.
Integrated Splicing and Termination
The box integrates fiber splicing, adapter connection, cable storage and drop cable management in one unit, helping simplify field installation and maintenance.
Flexible Adapter and Splitter Options
The terminal box can be configured with different adapter types such as SC or LC. It can also support PLC splitter installation depending on the product structure and project design.
Easy Installation and Maintenance
The clear internal layout helps technicians route fibers neatly, identify ports quickly and maintain fiber connections more easily during installation or future network changes.
Engineering Applications 8 Ports Fiber Terminal Box

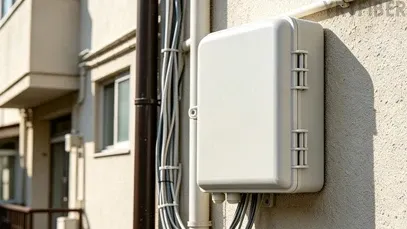

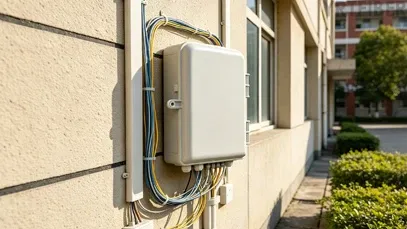

FTTH Home Access
In FTTH networks, the 8 Ports Fiber Terminal Box is used as a compact access point between feeder cables and subscriber drop cables.

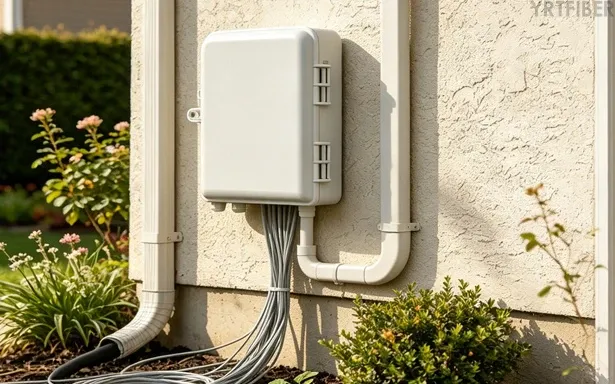

Villa and Small Residential Network
For villas and small residential areas, the box provides an organized fiber termination point for a small number of users.

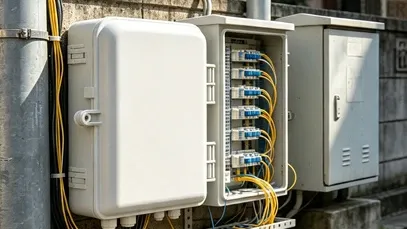

ISP Last-Mile Deployment
For ISPs and telecom operators, the 8-port terminal box is suitable for low-density FTTH access nodes and last-mile subscriber drop cable management.
Shipping & Packaging
Product Comparison：
8 Ports Fiber Terminal Box vs 16 Ports Fiber Terminal Box
| Feature / Dimension | 8 Ports Fiber Terminal Box | 16 Ports Fiber Terminal Box |
|---|---|---|
| Port Capacity | Supports up to 8 fiber output ports. | Supports up to 16 fiber output ports. |
| Best Application | Suitable for homes, villas, shops, small offices and low-density FTTH access points. | Suitable for small and medium FTTH access points with more subscriber connections. |
| Installation Space | More compact and easier to install in limited spaces. | Larger than 8-port models but provides more capacity. |
| Expansion Capacity | Suitable for small user groups with limited expansion needs. | Better for projects that may need more subscriber ports in the future. |
| Cost Position | More economical for small-scale fiber access projects. | Higher initial cost but better for larger access points. |
| Recommended Use | Choose when compact size and low port capacity are enough. | Choose when more drop cable connections are required. |
8 Ports Fiber Terminal Box Selection Guide
Choose 8 Ports for Small FTTH Access Points
If the project only needs to serve a small number of users, the 8 Ports Fiber Terminal Box is a practical and cost-effective option. It provides basic fiber splicing, termination and protection in a compact enclosure.
Choose Based on Adapter Type
Before selection, confirm the required connector type, such as SC/APC, SC/UPC, LC or other adapter formats. This helps ensure compatibility with pigtails, patch cords and subscriber drop cables.
Choose Based on Installation Environment
Confirm whether the box will be installed indoors, outdoors, on a wall or on a pole. The material, sealing design and mounting accessories should match the working environment.
Installation Instructions
Check the Box and Accessories. Inspect the box, trays, adapters, fasteners, seals, and mounting accessories.
Mount the Box. Secure the box to a wall, pole, or mounting surface using screws or brackets.
Introduce and Fix the Cables. Introduce and fix the cables, using clamps to reduce stress on the optical fibers.
Splice and Connect the Fibers. Splice or cold-splice the fibers as planned, arrange the optical fibers, and connect them to the adapter ports.
Close and Test the Box. Close the box, test the optical path continuity and insertion loss, and put it into use after confirming stability.
Download YRTFIBER Product Catalog
Factory Real Shot
Frequently Asked Questions & Quick Inquiry
8 Ports Fiber Terminal Box FAQ
What functions does this terminal box serve?
It acts as a central point for fiber splicing, splitting, distribution, and drop cable termination-all in one compact unit.
Is it suitable for outdoor installations?
Yes-the ABS construction and waterproof design enable reliable performance in both indoor and outdoor settings.

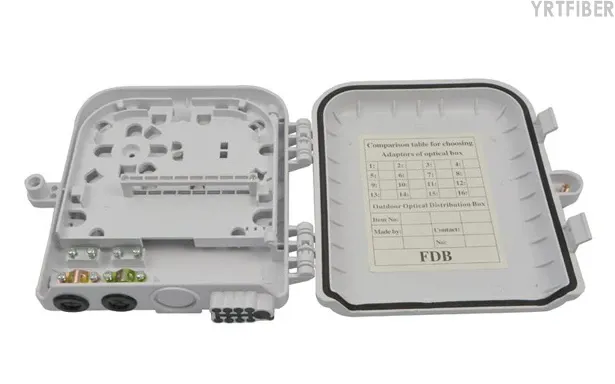

How is the cable organization arranged inside the box?
The box uses a two-layer design: the lower layer for splitters or fiber storage, and the upper layer for splicing and cross-connection, ensuring tidy cable arrangement and manageable bend radius.
Where can this terminal box be mounted?
It can be wall-mounted or pole-mounted, providing flexibility for varied deployment needs in FTTH networks.
How many fibers can the box accommodate?
The box supports up to 8 fiber connections and is splitter-compatible, making it suitable for small-scale subscriber access scenarios.
