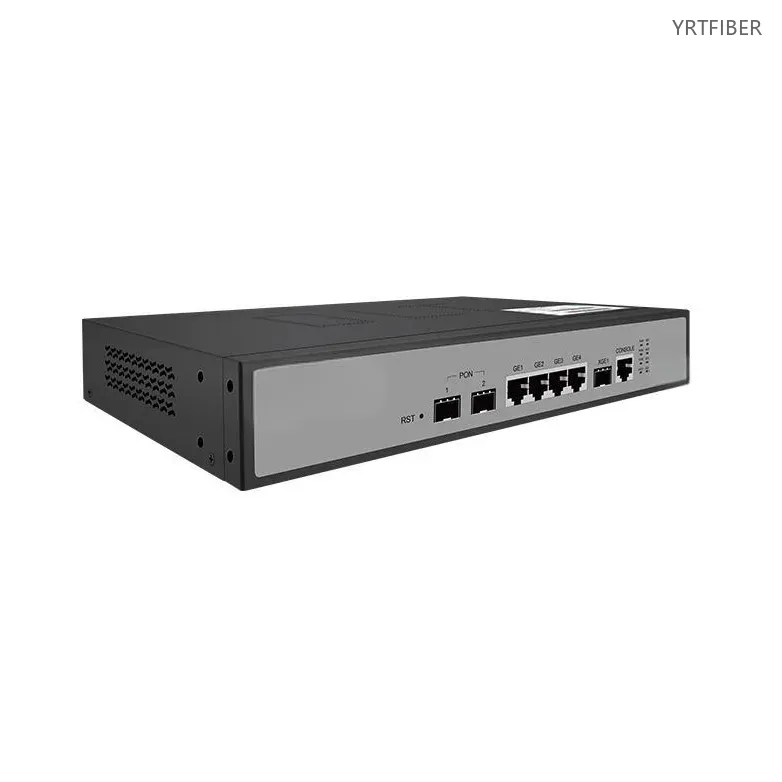

2-Port GPON OLT – Supports 256 ONUs with 2.5Gbps Downstream per Port, 10G SFP+ Uplink, 1U Rackmount
2×GPON ports, 1:128 split – up to 256 ONUs total.
Per port: 1.244G upstream / 2.488G downstream.
4×GE RJ45 uplink ports.
1U 19" rack/desktop chassis, ≤25W power.
Management: CLI, WEB, SNMP, Telnet, SSH.
QoS, DBA, VLAN (4096), IGMP snooping, ACL, port isolation.
ONU auto‑discovery, auto‑config, remote firmware upgrade
What is a 2‑Port GPON OLT?
The 2‑Port GPON OLT is a compact, cost‑effective optical line terminal designed for small‑ to medium‑scale fiber access networks. With two GPON ports supporting up to 256 ONUs and four Gigabit uplink ports, it delivers reliable broadband connectivity in a space‑saving 1U chassis – perfect for rural FTTH, campus buildings, and small ISP deployments.
2‑Port GPON OLT Specification parameters
- Specification parameters
- OPTICAL CHARACTERISTICS
| Hardware & Interfaces | Specification | PON Features | Specification |
|---|---|---|---|
| Item | HSGQ-G02 | PON Standard | ITU.T G.984.x / G.988 |
| GPON Interfaces | 2 × GPON | Authentication Modes | Password authentication modes |
| GE RJ45 Ports | 4×GE RJ45 | Transmission Distance | Terminal access up to 60km |
| 10G SFP+ Port | 1×10G SFP+ | Split Ratio | 1:128 split ratio on single PON port |
| Console Port | Console port | DBA Algorithm | DBA algorithm, particle 64Kbit/s |
| Flash | 128MB | OMCI Management | Standard OMCI management function |
| GDR (Memory) | 512M | Batch Upgrade | ONU batch software upgrade |
| Dimensions | 250mm×180mm×44mm | Optical Power Detection | PON port optical parameter detection |
| Weight | ＜5kg | Auto‑registration | Auto registration ONU bound with default profile |
| Data Encryption | Encryption of PON port transmitting data |
| Environment & Power Supply | Specification | Management & Maintenance | Specification |
|---|---|---|---|
| Operating Temperature | -10°C ~ 55°C | Configuration Methods | CLI, WEB, SNMP, NMS, CLOUD |
| Storage Temperature | -40°C ~ 70°C | Upgrade Methods | Software/bootrom upgrade by TFTP/FTP |
| Storage Humidity | 5%~95% (non-condensing) | CLI Language | Chinese/English command prompt |
| Power Input | DC 12V | Diagnostic Tools | Ping and Debug diagnosis |
| Redundancy Design | Dual power supply can be choose, support AC+DC input | Log & Alarm Management | User/Log/Alarm management |
| Power Consumption | ＜10W | Platform Management | Device list, Project management, Version release, License management, Permission management, User management |
| Status Monitoring | Specification | L2 Functions | Specification |
|---|---|---|---|
| PON Status | PON Status | VLAN | Support VLAN |
| Uplink Status | Uplink Status | Port Mirroring | Support port mirror |
| Performance Monitoring | Performance Monitor | Storm Control | Support storm control |
| System Monitoring | System Monitor | Multicast (IGMP) | Support IGMP snooping/proxy |
| MAC Blackhole | Support MAC black hole | ||
| Port Isolation | Support port isolation |

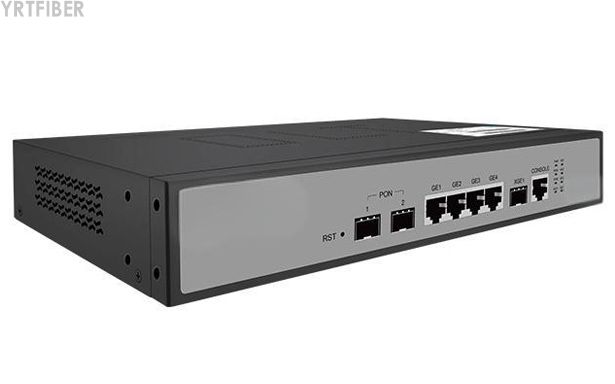

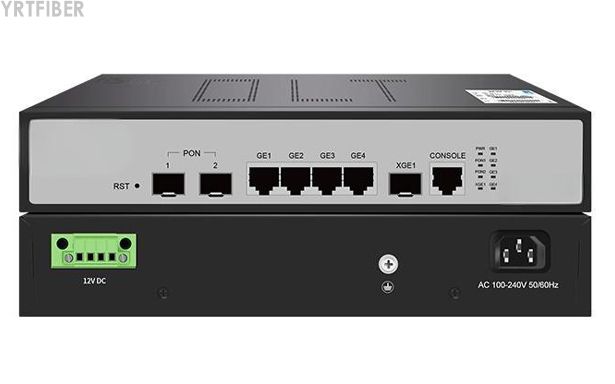

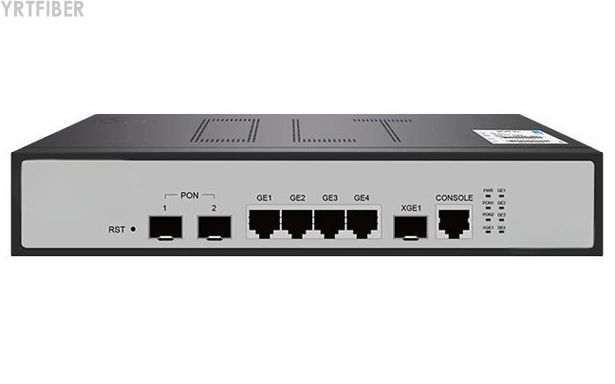

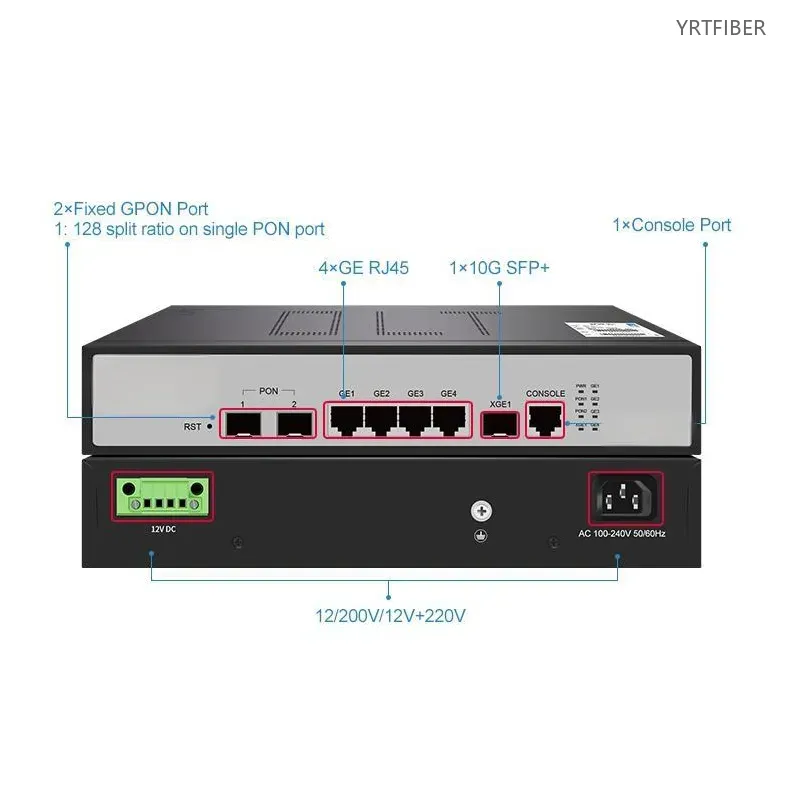

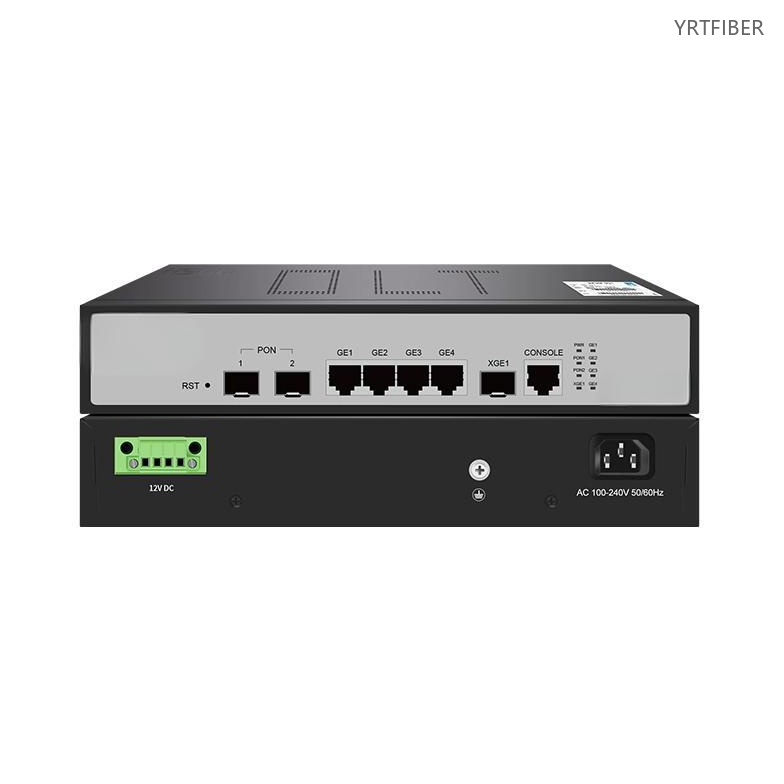

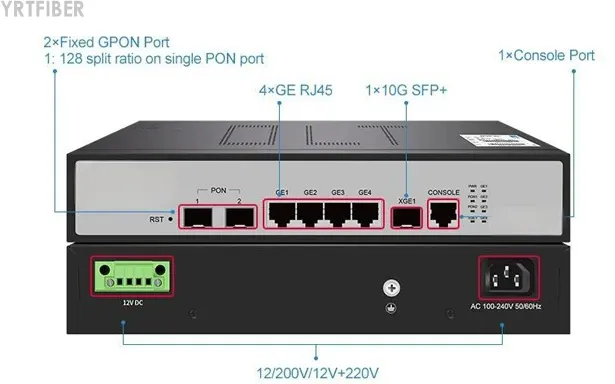

Product Structure & Composition
Chassis: 1U 19‑inch metal housing (can also be desktop‑mounted) with passive or low‑speed fan cooling for quiet operation.
GPON Ports: Two SC/UPC ports, each delivering 2.488G downstream/1.244G upstream, supporting 20km reach with Class B+ optics.
Uplink Interfaces: 4×10/100/1000M RJ45 ports for connection to core switches or routers.
Management: Console port (RJ45) and out‑of‑band Ethernet management port.
Power: Built‑in AC power supply (100‑240V), dual‑power option available.
Benefits of 2‑Port GPON OLT
Balanced Capacity for Growing Networks
Two GPON ports offer a sweet spot for small ISPs and campus deployments – supporting up to 256 subscribers (at 1:128 split) while keeping hardware costs low.
Flexible Uplink and Compact Form Factor
With 4 Gigabit uplink ports, you can aggregate upstream traffic efficiently. The 1U chassis fits standard racks or can be placed on a desktop, saving space in small equipment rooms.
Easy Management and Zero‑Touch ONU Provisioning
WEB/CLI management, combined with auto‑discovery and auto‑configuration of ONUs, simplifies setup and maintenance – reducing operational costs.
Engineering Applications 2‑Port GPON OLT

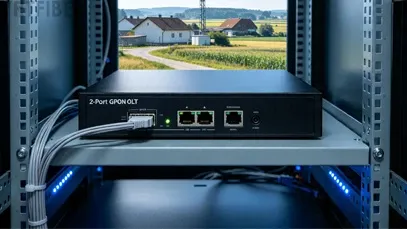

Small‑Scale ISP and Rural FTTH
Deploy in villages or small towns to connect up to 256 homes via passive optical splitters – a cost‑effective alternative to larger OLTs.
Campus Buildings and Multi‑Tenant Offices
Provide fiber connectivity to each floor or tenant in a single building, supporting high‑speed internet, IPTV, and VoIP services.
Remote Work and Edge Deployments
Perfect for remote work hubs, construction sites, or temporary offices – quick to deploy and simple to manage.
Shipping & Packaging
Product Comparison：
2‑Port OLT vs. 4‑Port OLT
| Feature | 2‑Port OLT | 4‑Port OLT |
|---|---|---|
| GPON Ports | 2 | 4 |
| Max ONUs | 256 | 512 |
| Uplink Ports | 4×GE RJ45 | 4×GE + 4×10G SFP+ |
| Chassis Size | 1U (rack/desktop) | 1U |
| Power Consumption | ≤25W | ≤45W |
| Typical Use | Small ISPs, campus edge | Medium‑density urban networks |
| Cost | Moderate | Higher |
2‑Port GPON OLT Selection Guide
How to Choose the 2‑Port GPON OLT
This OLT is ideal when you need a balance between capacity and cost – up to 256 subscribers. Choose it for small ISPs, single‑building campuses, or distributed remote sites. For larger subscriber bases, consider a 4‑port or 8‑port model. Ensure your uplink bandwidth requirements match the Gigabit ports.
Installation Instructions
Rack or Desktop Mounting
Mount in a 19‑inch rack using the provided brackets, or place on a flat desktop. Ensure adequate airflow.
Fiber and Uplink Connections
Insert GPON SFP modules, connect fiber to splitters. Connect GE uplink ports to your core network.
Initial Configuration
Power on, access the WEB interface or CLI, set up VLANs, DBA profiles, and enable ONU auto‑provisioning.
Download YRTFIBER Product Catalog
Factory Real Shot
Frequently Asked Questions & Quick Inquiry
2‑Port GPON OLT FAQ
How many ONUs can this OLT support?
Up to 256 ONUs total (128 per port) with a 1:128 split ratio.
What is the maximum transmission distance?
Up to 20km with Class B+ optics (standard).
Does it support multi‑vendor ONUs?
Yes, it complies with ITU‑T G.984/G.988 and standard OMCI.
Can it be rack‑mounted?
Yes, it is a 1U 19‑inch rack‑mountable chassis with included brackets.
What management interfaces are available?
CLI, WEB, SNMP, Telnet, and SSH.
What is the power consumption?
≤25W typical.
