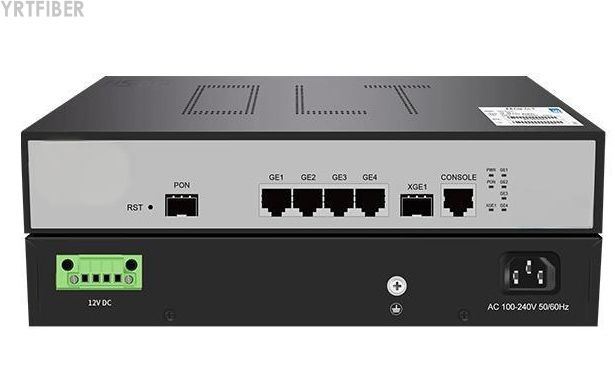

1-Port Mini GPON OLT – Supports 128 ONUs with 2.5Gbps Downstream for FTTH Networks
Single GPON downlink port with 1:128 split ratio – supports up to 128 ONUs.
GPON speeds: 1.244Gbps upstream, 2.488Gbps downstream.
Uplink: 1×GE RJ45 + 1×GE SFP combo port for flexible upstream connectivity.
Compact, fanless design – ultra‑low power consumption (≤12W).
Management: CLI, WEB, SNMP, Telnet, SSH.
Supports DBA, QoS, VLAN (4096), IGMP snooping, and ACL security.
ONU auto‑discovery and auto‑configuration.
Ideal for rural FTTH, small offices, and remote cell sites.
What is a Mini 1‑Port GPON OLT?
The Mini 1‑Port GPON OLT is a compact, low‑cost optical line terminal designed for small‑scale fiber access networks. With one GPON port supporting up to 128 ONUs and flexible Gigabit uplinks, it delivers reliable broadband connectivity for FTTH, SOHO, remote campuses, and rural deployments in a space‑saving, fanless chassis.
Mini 1 Port GPON OLT Specification parameters
- Specification parameters
- OPTICAL CHARACTERISTICS
| Item | Specification |
|---|---|
| Item | HSGQ-G01 |

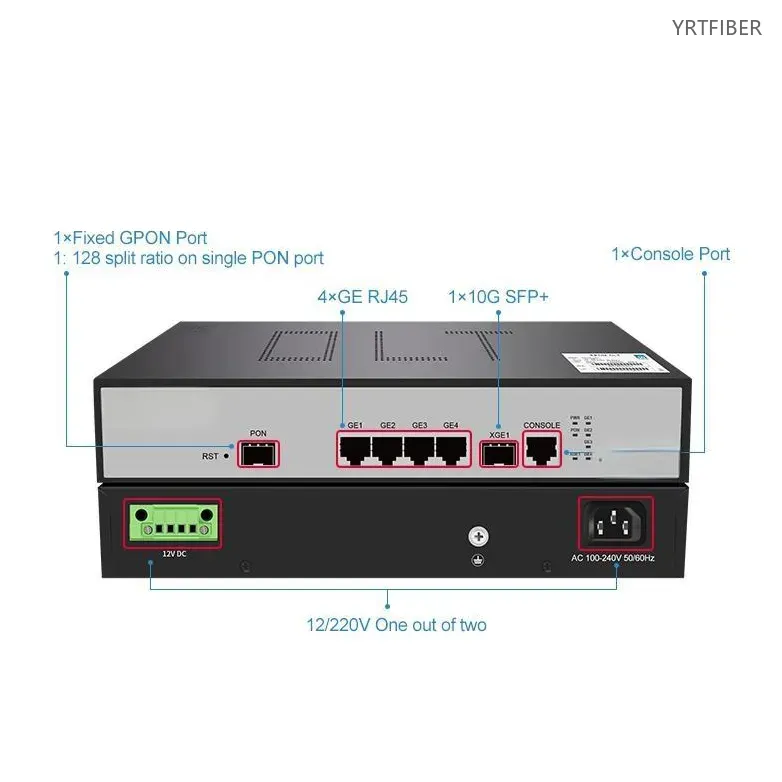

| Interface | 1 * GPON |
| 4 * GE RJ45 | |
| 1 * 10G SFP+ | |
| PON | ITU.T G.984.x / G.988 |
| Password authentication modes | |
| Terminal access up to 60km on a single fiber | |
| 1:128 split ratio on single PON port | |
| DBA algorithm, and the particle is for 64Kbit/s | |
| Standard OMCI management function | |
| ONU batch software upgrade | |
| PON port optical parameter detection | |
| Auto registration ONU bound with default profile | |
| Flash | 16MB |
| GDR | 512MB |

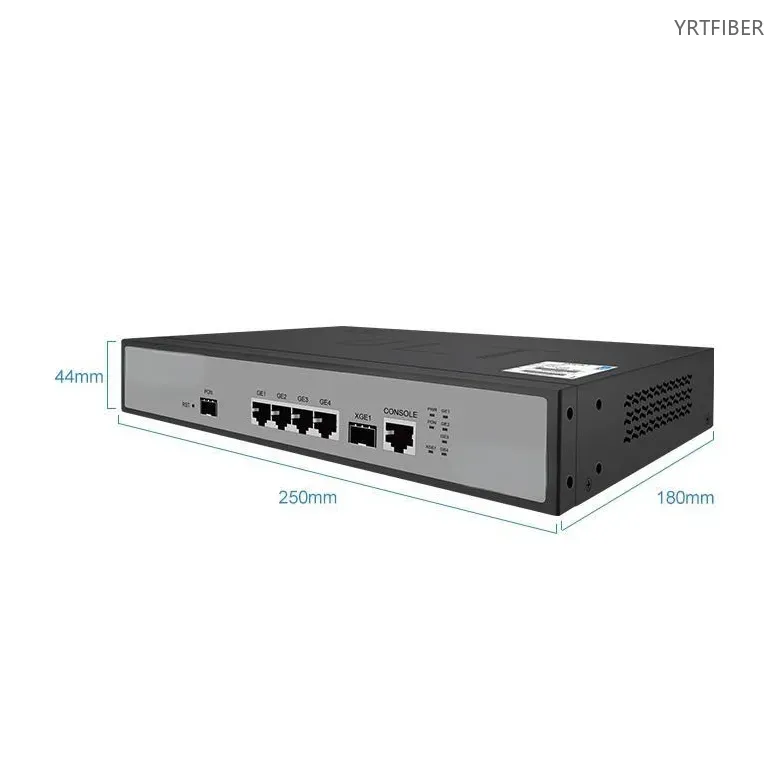

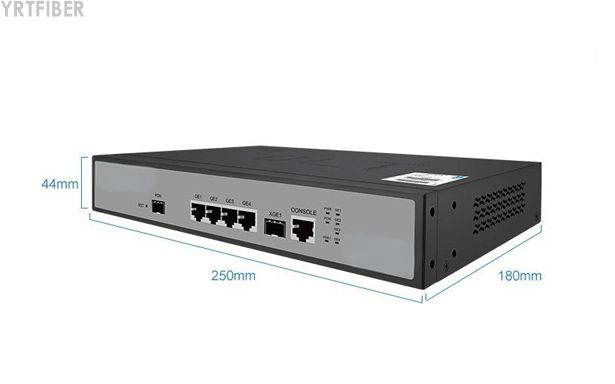

| Size | 250mm x 180mm x 44mm |
| Weight | ＜5kg |
| Management Ports | Console port |
| Environment | Operating temperature: -10°C~55°C |
| Storage temperature: -40°C~70°C | |
| Storage humidity: 5%~95% (non-condensing) | |
| Power Supply | DC 12V |
| Power Consumption | ＜10W |
| Platform Management Features | Device list |
| Project management | |
| Version Release | |
| Lisense management | |
| Permission management | |
| User management | |
| Configuration and Management | CLI, WEB, SNMP, NMS and CLOUD |
| Software and bootrom Upgrade by TFTP and FTP | |
| Chinese/English command prompt | |
| Ping and Debug diagnosis | |
| User/Log/Alarm management | |
| Status | PON Status |
| Uplink Status | |
| Performance Monitor | |
| System Monitor | |
| L2 Function | Support VLAN |
| Support Port mirror | |
| Support Storm control | |
| Support IGMP Snooping/proxy | |
| Support MAC Black Hole | |
| Support Port isolation | |
| Encryption of PON port transmitting data |
Product Structure & Composition
Chassis: Compact metal enclosure (approx. 160×120×30mm) – fanless design for silent operation.
GPON Port: One SC/UPC port delivering 2.488G downstream/1.244G upstream, supporting 20km reach with Class B+ optics.
Uplink Interfaces: 1×10/100/1000M RJ45 + 1×GE SFP combo port for network uplink.
Management: Dedicated console port and Ethernet management port.
Power: External 12V DC adapter (included), low power consumption ≤12W.
Benefits of Mini 1 Port GPON OLT
Ultra‑Compact Fanless Design
Small footprint and passive cooling make this OLT ideal for desktop installation, small cabinets, and outdoor enclosures. Silent operation suits office and residential environments.
Cost‑Effective GPON Access
Single‑port design significantly lowers entry cost for small‑scale FTTH projects. Supports up to 128 subscribers, offering a balanced solution for rural ISPs, private networks, and temporary deployments.
Easy Management and Zero‑Touch Provisioning
Intuitive WEB interface and CLI simplify configuration. Auto‑discovery and auto‑configuration of ONUs reduce installation time and operational overhead.
Engineering Applications Mini 1 Port GPON OLT
Rural FTTH and Remote Communities
Deliver high‑speed broadband to underserved areas with a single OLT per village or cluster, connected via passive splitters to up to 128 homes.
SOHO and Small Office Networks
Connect multiple devices (PCs, IP phones, Wi‑Fi APs) via fiber – ideal for small businesses requiring reliable, high‑bandwidth connectivity.
Temporary or Pop‑Up Deployments
For events, construction sites, or emergency networks, the Mini OLT provides a quick, portable GPON solution.
Shipping & Packaging
Product Comparison：
Mini 1‑Port OLT vs. Standard 4‑Port OLT
| Feature | Mini 1‑Port OLT | 4‑Port OLT (1U) |
|---|---|---|
| GPON Ports | 1 | 4 |
| Max ONUs | 128 | 512 |
| Uplink Ports | 1×GE + 1×GE SFP | 4×GE + 4×10G SFP+ |
| Chassis Size | Desktop (fanless) | 1U rack (with fans) |
| Power Consumption | ≤12W | ≤45W |
| Typical Use | Small sites, rural, SOHO | Medium‑density urban networks |
| Cost | Low | Moderate |
Mini 1 Port GPON OLT Selection Guide
How to Choose the Mini 1‑Port GPON OLT
This OLT is ideal when you need a low‑cost, low‑power, and space‑saving solution for up to 128 subscribers. Choose it for rural FTTH, small campuses, or temporary installations. For larger deployments, consider a 4‑port or 8‑port model.
Installation Instructions of Mini 1 Port GPON OLT
Desktop or Wall Mount
Place the device on a flat surface or mount on a wall using the provided brackets. Ensure adequate ventilation.
Connect Fiber and Uplink
Insert the GPON SFP module and connect the fiber to the splitter. Connect the GE uplink port to your router or switch.
Power On and Configure
Connect the 12V adapter, power on, and access the WEB interface for initial setup. Configure VLANs, DBA profiles, and ONU auto‑provisioning.
Download YRTFIBER Product Catalog
Factory Real Shot
Frequently Asked Questions & Quick Inquiry
Mini 1 Port GPON OLT FAQ
How many ONUs can this 1‑port OLT support?
It supports up to 128 ONUs connected to the single GPON port.
What are the uplink connectivity options?
Options include GE (RJ45), SFP (1 G), and SFP+ (10 G) uplinks, providing flexible integration with different network backbones.
Which management interfaces are supported?
Management is available through CLI, Web GUI, SNMP, Telnet, and cloud platforms; it supports OMCI for remote ONU control.
Does it meet industry standards?
Yes, it complies with GPON standards ITU‑T G.984 and G.988. including support for authentication, encryption, DBA, VLAN, and multicast.
What deployment scenarios suit this OLT?
Its compact size and high-performance make it ideal for FTTH, small enterprises, SOHO offices, ISP multi-dwelling units, and video surveillance networks.
How many ONUs can this OLT support?
Up to 128 ONUs with a 1:128 split ratio.
What is the maximum transmission distance?
Up to 20km with standard GPON optics (Class B+).
Does it support multi‑vendor ONUs?
Yes, it complies with ITU‑T G.984/G.988 and standard OMCI.
Can it be powered via PoE?
No, it uses an external 12V DC power adapter.
Is the device manageable via SNMP?
Yes, SNMP, CLI, WEB, Telnet, and SSH are supported.
