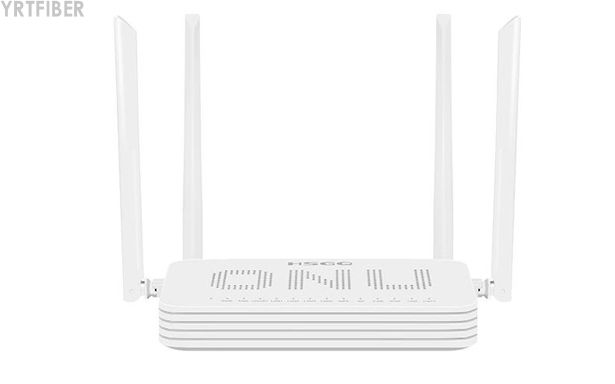

WiFi 5 CATV ONU – One Device for Broadband, Cable TV, and VoIP Over a Single Fiber
High-speed GPON ONU performance for fiber access networks.
Dual-band WiFi 5 (802.11ac) wireless coverage with stable signal quality.
CATV support to converge data and video services in one device.
Designed for ISPs: easy rollout, remote monitoring, and reduced maintenance cost.
What is a WiFi 5 CATV ONU?
The WiFi 5 CATV ONU is an all-in-one fibre optic terminal device that combines GPON/EPON broadband access, dual-band Wi-Fi 5, CATV RF output, and VoIP telephony in a single compact unit. Designed for FTTH and FTTx deployments, it enables service providers to deliver triple-play services – high-speed Internet, digital/analogue TV, and voice – over a single fibre connection. With four Gigabit Ethernet ports, AC1200 wireless coverage, and remote management capabilities, it is the ideal CPE solution for residential, SOHO, and small enterprise applications.
WiFi 5 CATV ONU Specification parameters
- Specification parameters
- OPTICAL CHARACTERISTICS
| User interface | 4*10/100/1000M RJ45 port 1*POTS 1*USB 300 Mbps (2.4GHz) / 866 Mbps (5GHz) |
| PON | EPON&GPON mode adaptive lnterface Type:SC-APC Security: ONU authentication mechanism Network coverage radius: 20KM GPON: upstream 1.25Gbps /downstream 2.5Gbps Optical receive sensitivity:-7dBm~-28dBm Continuous light power: 0.5dBm~+5dBm EPON: upstream 1.25Gbps /downstream 1.25Gbps Optical receive sensitivity:-7dBm~-27dBm Continuous light power: 0dBm~4dBm |
| Ethernet | 4*10/100/1000M adaptive Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance |

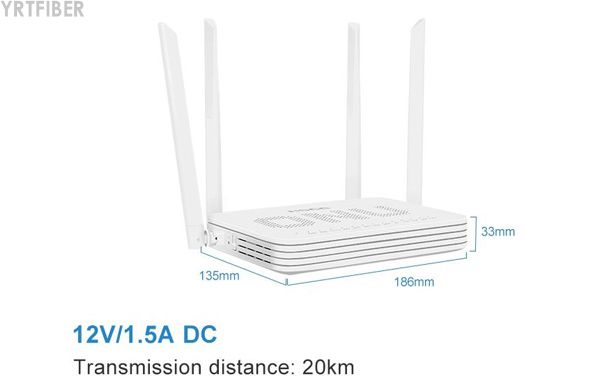

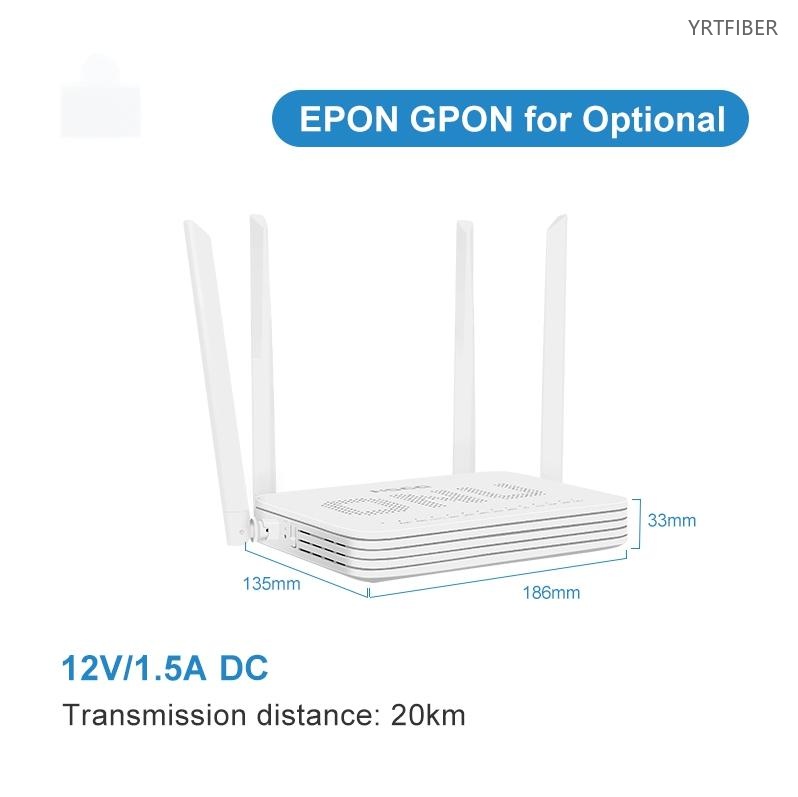

| Size | 160mm(L)×112mm(W) × 30mm(H) |
| Environment | Operating temperature: 0℃～60℃ Operating humidity: 10%~85% non-condensing Storage temperature: -40℃～80℃ Storage humidity: 5%～95% non-condensing |
| Power supply | 12V1.5A DC Power interface size:2.1mm/5.5mm |
| Power consumption | |
| POTS Port | 1*RJ11 Max 1km distance Balanced Ring, 55V RMS |
| Management | WEB/TELNET/TR069/ONUI/OAM |
| CATV | Bandwidth 54-870MHz Qutput resistance 75 ohms |

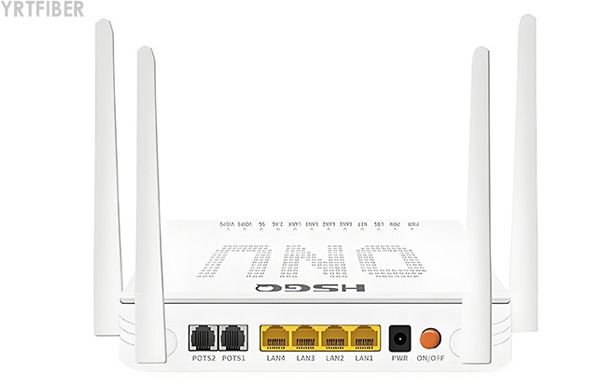

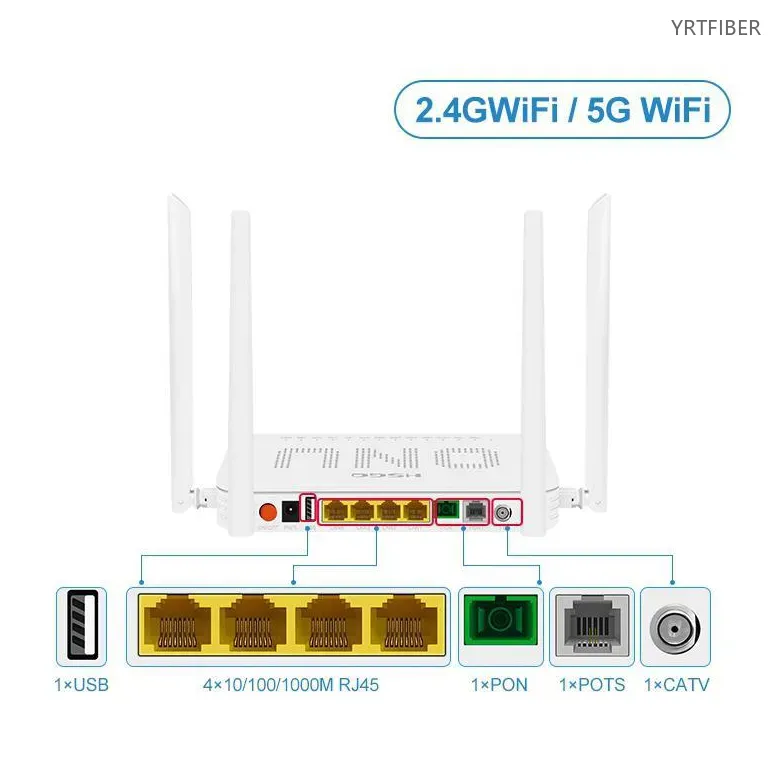

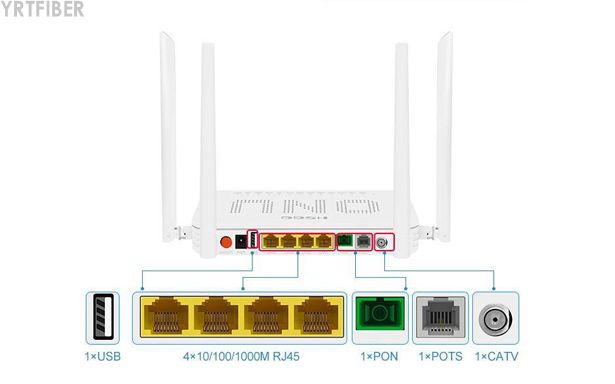

Product Structure & Composition
PON Interface: One SC/APC port for GPON/EPON fibre connection, auto-adapting to the OLT mode. Supports up to 20km transmission distance.
Ethernet Ports: 4×RJ45 10/100/1000M auto-negotiation ports for wired devices such as PCs, IPTV boxes, and gaming consoles.
CATV Output: One 75Ω RF port (F-type connector) for analogue cable TV output. Supports AGC (Automatic Gain Control) for stable signal levels.
Wi-Fi Module: Built-in 802.11ac dual-band (2.4GHz/5GHz) with 2×2 MIMO and external antennas (5dBi gain), delivering combined wireless speeds up to 1200Mbps.
Voice Interface: One RJ11 POTS port with SIP protocol support for VoIP telephony.
USB Port: USB 2.0/3.0 for storage devices, printer sharing, or firmware upgrades.
Benefits of WiFi 5 CATV ONU
Integrated Triple‑Play Gateway
Combines broadband, CATV, and VoIP in one device – eliminates separate modems/STBs, simplifies cabling, and reduces equipment costs.
Wired and Wireless Connectivity
AC1200 dual‑band Wi‑Fi (2.4GHz/5GHz) with EasyMesh for seamless roaming; 4×Gigabit Ethernet ports for high‑speed wired devices (PCs, IPTV, NAS).
XPON Dual‑Mode and Remote Management
Auto‑adapts to GPON or EPON for OLT compatibility (Huawei, ZTE, etc.). Supports TR‑069. OMCI, WEB, and Telnet for remote configuration, firmware upgrades, and troubleshooting – reducing on‑site visits and OPEX.
Engineering Applications WiFi 5 CATV ONU

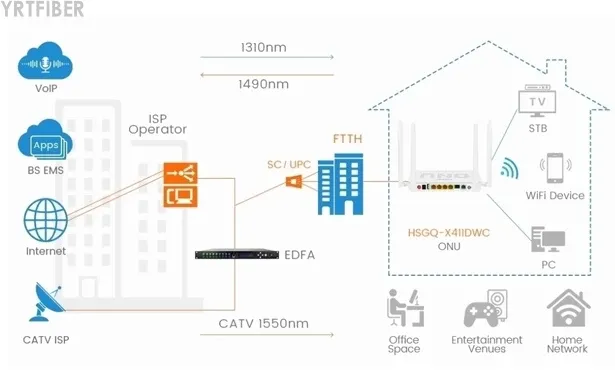

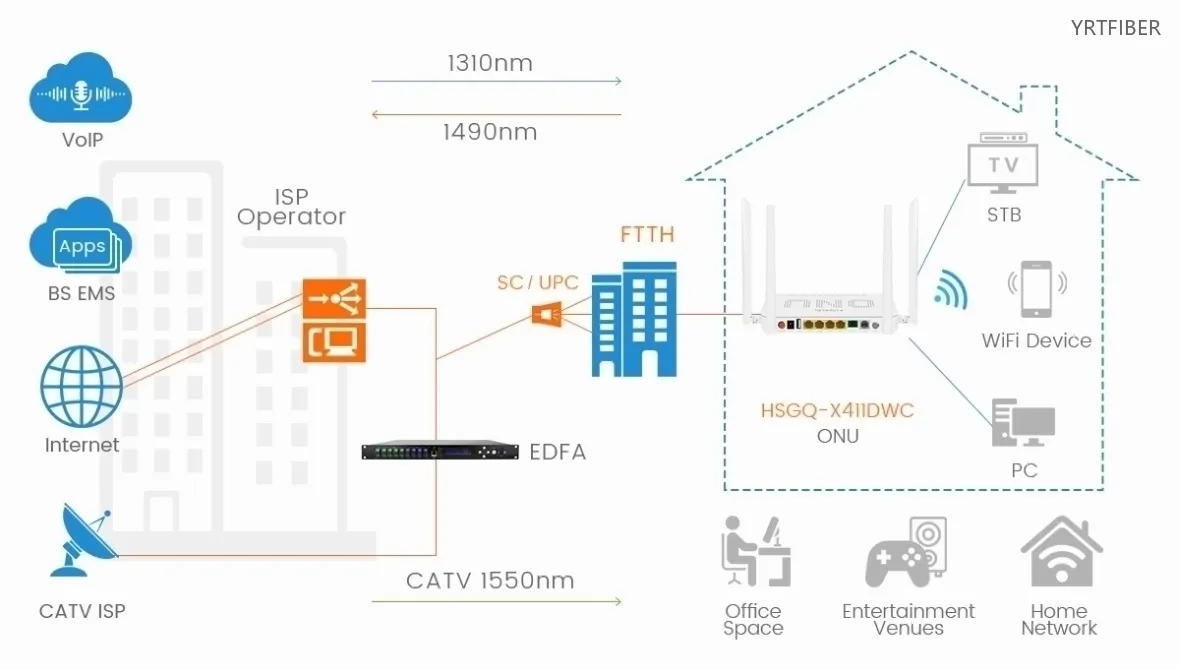

Residential FTTH / FTTB
Provides a single-box solution for home broadband, cable TV, and VoIP – eliminating multiple devices and simplifying user experience. Ideal for apartment buildings and residential communities.
SOHO and Small Offices
Four Gigabit ports and dual-band Wi-Fi support multiple users and devices simultaneously. Perfect for small businesses requiring reliable Internet, phone, and TV services.
Cable Operator Multi-Service Networks
CATV RF output enables cable operators to deliver analogue TV alongside broadband services over a single fibre network. Ideal for hybrid fibre-coax (HFC) migration to FTTH.
Shipping & Packaging
Product Comparison：
WiFi 5 CATV ONU vs. WiFi 6 CATV ONU
| Feature | WiFi 5 CATV ONU | WiFi 6 CATV ONU |
|---|---|---|
| Wi-Fi Standard | IEEE 802.11ac (Wi-Fi 5) | IEEE 802.11ax (Wi-Fi 6) |
| Max Combined Speed | AC1200 (300+866Mbps) | AX1800 or higher |
| MU-MIMO | Support | Support (enhanced) |
| OFDMA | Not supported | Supported |
| Target Wake Time | Not supported | Supported (IoT battery saving) |
| Typical Use | Residential, SOHO | High-density, smart home |
| Cost | Lower | Higher |
WiFi 5 CATV ONU Selection Guide
How to Choose the WiFi 5 CATV ONU
Select this ONU when you need a cost-effective triple-play gateway for residential or SOHO deployments. It is ideal for service providers rolling out FTTH with analogue CATV overlay.
Consider the port configuration: models range from 2×GE to 4×GE. Choose 4×GE for households/offices with multiple wired devices.
Verify OLT compatibility: The XPON auto-adaptation feature ensures compatibility with most major OLT brands.
For higher-density or future-proof deployments, consider WiFi 6 models. For basic triple-play services, WiFi 5 offers the best value.
Installation Instructions
Fibre Connection
Connect the fibre optic cable to the SC/APC PON port. Ensure the connector is clean and properly seated.
Power On and Initialisation
Connect the 12V DC power adapter. Wait for the PON LED to stabilise – indicating successful registration with the OLT.
Wi-Fi Configuration
Access the WEB interface (default IP: 192.168.1.1). Set SSID and password for 2.4GHz and 5GHz bands. Enable EasyMesh if multiple nodes are deployed.
CATV Connection
Connect the RF coaxial cable from the CATV port to the TV set-top box or directly to the TV's analogue tuner.
Download YRTFIBER Product Catalog
Factory Real Shot
Frequently Asked Questions & Quick Inquiry
WiFi 5 CATV ONU FAQ
1. What does the WiFi 5 CATV ONU do?
Combines GPON, dual-band WiFi 5. and CATV output for Internet, TV, and voice in one device.
2. Is there a warranty?
Yes. Two-year warranty, three-month free return, and one-year free maintenance.
3. sample available?
Yes!
4. Do you offer OEM/ODM?
Yes. Custom configurations, branding, and packaging available.
5. How is after-sales service handled?
We track orders, reply within 24h, and provide quick solutions.
How many ONUs can this OLT support?
Up to 256 ONUs total (128 per port) with a 1:128 split ratio.
What is the maximum transmission distance?
Up to 20km with Class B+ optics (standard).
Does it support multi‑vendor ONUs?
Yes, it complies with ITU‑T G.984/G.988 and standard OMCI.
Can it be rack‑mounted?
Yes, it is a 1U 19‑inch rack‑mountable chassis with included brackets.
What management interfaces are available?
CLI, WEB, SNMP, Telnet, and SSH.
What is the power consumption?
≤25W typical.
