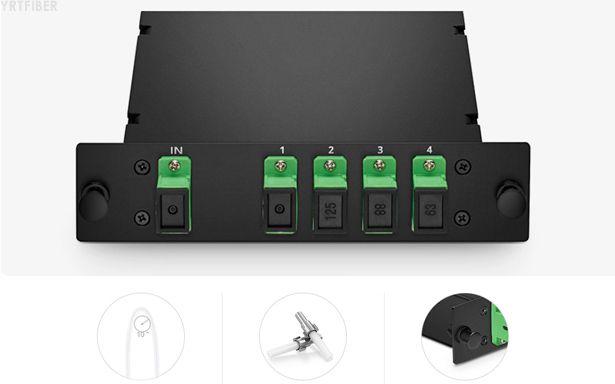

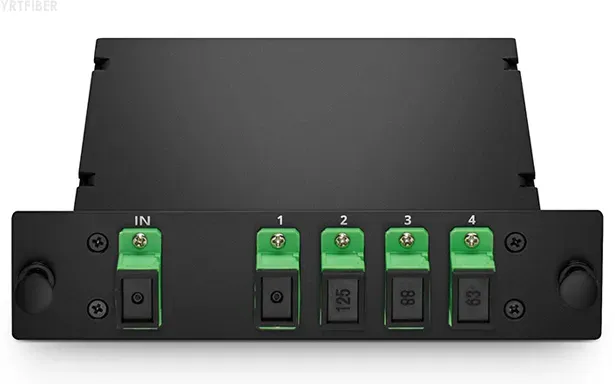

1×4 PLC Fiber Optic Splitter – LGX Cassette, Singlemode G652D/G657A, SC/APC
1x4 splitter design for balanced optical signal division
Space-saving LGX cassette enclosure
Compatible with singlemode G652D and G657A fibers
Default with SC/APC connectors and 2.0mm pigtails
Connector customization: LC, FC, ST; polish: UPC/APC
Low insertion loss, stable performance, and high reliability
What is a 1×4 PLC Fiber Optic Splitter LGX Cassette?
A 1×4 PLC fiber optic splitter LGX cassette is a device with a compact LGX cassette design, used for efficient optical signal distribution in FTTH and PON systems. It splits one optical signal into four paths, is compatible with G652D and G657A single - mode fibers, has default SC/APC connectors with 2.0mm pigtails and offers customization options for connectors and polish, while providing low insertion loss, stable performance, and high reliability.
1×4 LGX Cassette Fiber Optic Splitter Specification parameters
- Specification parameters
- OPTICAL CHARACTERISTICS
| Package Style | LGX Box | Configuration Type | 1x4 |
| Fiber Grade | G.657A1 | Fiber Mode | Singlemode |
| Connector Type | SC/APC | Split Ratio | Symmetrical |
| Insertion Loss | ≤ 7.3dB | Return Loss | ≥ 55dB |
| Loss Uniformity | ≤ 0.6dB | Directivity | ≥ 55dB |
| Polarization Dependent Loss | ≤ 0.2dB | Temperature Dependent Loss | ≤ 0.5dB |
| Wavelength Dependent Loss | ≤ 0.3dB | Operating Wavelength | 1260~1650nm |
| Dimensions (HxWxD) | 1.14"x5.08"x6.10" (29x129x155mm) | Temperature | Operating -40 to 85°C (-40 to 185°F) Storage -40 to 85°C (-40 to 185°F) |
Product Structure & Composition
Optical Splitting Core: The splitter’s core is a PLC-based optical splitter that evenly divides the input signal from one port into four outputs, ensuring consistent, low-loss signal distribution across all channels.

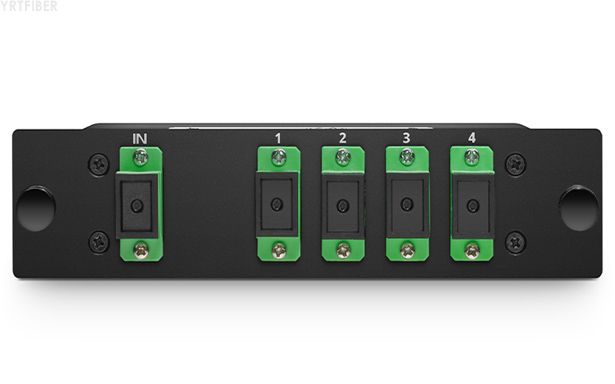

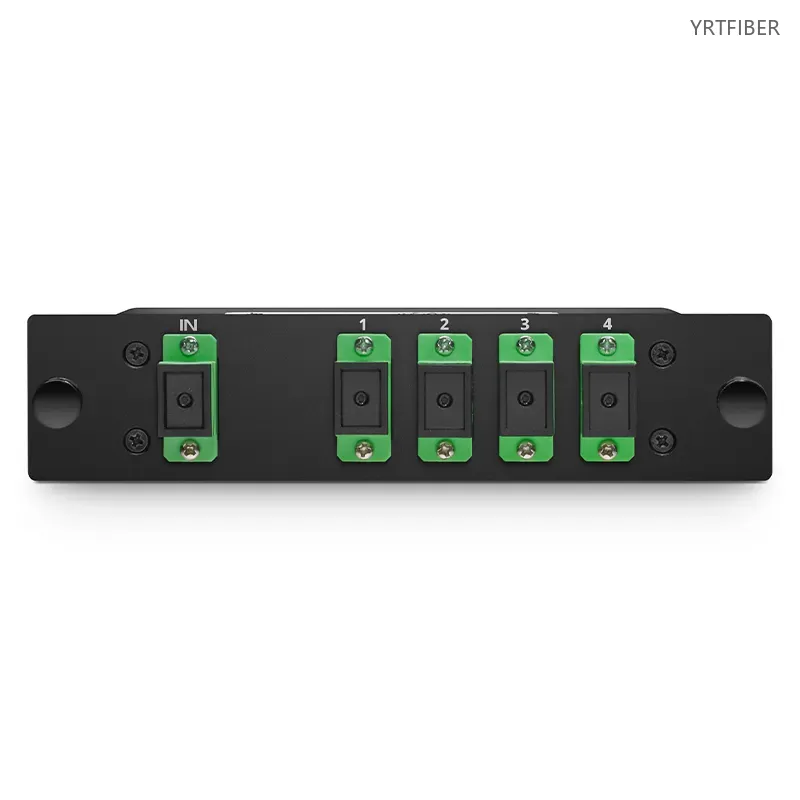

LGX Cassette Enclosure: This compact LGX cassette houses the splitting core, fits standard patch panels and enclosures, saves space, and protects internal components from physical damage, dust, and environmental factors.
Connectors and Pigtails: Default SC/APC connectors with 2.0mm pigtails (single-mode G652D or G657A) reduce back-reflection via APC polish, improving return loss. Other connector types (LC, FC, ST) and polish options (UPC or APC) are available upon request.
Benefits of 1×4 LGX Cassette Fiber Optic Splitter
Balanced Signal Distribution
The 1x4 splitter design ensures that the optical signal is evenly distributed among the four output channels. This balanced distribution is essential for applications where each output needs to receive a consistent optical signal, such as in FTTH systems where multiple households are served from a single optical source.
Space - saving in Compact Enclosure
The LGX cassette design is highly space - efficient. In FTTH and PON systems, where space in distribution cabinets or wall - mounted enclosures is often limited, the compact LGX cassette can be easily installed in a standard patch panel, optimizing the use of available space and simplifying the cabling process.
Fiber Compatibility for Long - distance Transmission
Compatibility with G652D and G657A single - mode fibers makes the splitter suitable for long - distance transmission applications. These fiber types are known for their low - loss characteristics over long distances, and the splitter's ability to work with them ensures efficient signal distribution over extended network spans.
Engineering Applications 1×4 LGX Cassette Fiber Optic Splitter
FTTH and FTTx optical access networks

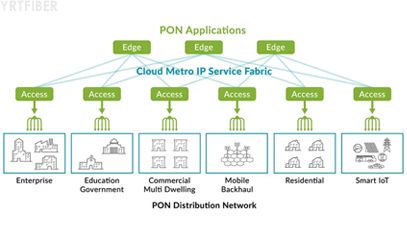

Passive Optical Network (PON) distribution
Central office fiber management
CATV and enterprise data wiring systems
Shipping & Packaging
Please contact the sales manager for specific shipping costs
Product Comparison：
| Feature / Dimension | 1×4 LGX Cassette PLC Splitter | 1×4 ABS Module PLC Splitter |
|---|---|---|
| Housing / Package | Standardized metal cassette (aluminum or steel frame) | Compact thermoplastic (ABS) housing |
| Dimensions (H×W×D) | 1.14″ × 5.08″ × 6.10″ (29 × 129 × 155 mm) | Significantly smaller, varies by manufacturer (typically ~4×4×1 cm for 1×4) |
| Mounting / Installation | Slides into standard LGX-compatible 19″ racks, ODF frames, or wall-mount enclosures | Flexible mounting with tie-points or screws; fits into FAT boxes, FDB enclosures, pole-mounted CTO boxes |
| Front Panel Interface | Front-panel LC/SC/FC/ST adapter ports for easy patching | Pigtails or adapter ports (varies by design); typically no front-panel access |
| Typical Applications | Indoor structured cabling: central office ODF racks, 19″ data center cabinets, MDU communication rooms | Outdoor FTTH distribution: pole-mounted FAT/CTO boxes, compact FDB enclosures, rural ODN deployment |
| Split Ratio Options | 1×4 (also available in 1×2, 1×8, 1×16, 1×32, 1×64) | 1×4 (also available in 1×2, 1×4, 1×8, 1×16, 1×32) |
| Relative Cost | Higher (metal cassette, rack-compatible form factor) | Lower (plastic housing, simpler packaging) |
| Maintenance & Reconfiguration | Hot-swappable; easy module replacement without disrupting other cables | Requires opening the enclosure; less convenient for frequent changes |
1×4 LGX Cassette Fiber Optic Splitter Selection Guide
Choose the 1×4 LGX Cassette PLC Splitter when:
Deploying in indoor structured cabling environments such as central offices, data centers, or telecom equipment rooms with 19-inch racks or ODF frames.
Requiring front-panel access for easy patching, testing, and reconfiguration.
Needing hot-swappable modules that can be replaced or upgraded without disrupting adjacent fibers or cables.
Managing high-density rack installations where standardized, professional cable management is critical.
Working in environments where maintenance and scalability are top priorities.
Choose the 1×4 ABS Module PLC Splitter when:
Deploying in outdoor FTTH distribution – pole-mounted FAT boxes, FDB enclosures, or CTO terminals.
Space is limited in compact outdoor enclosures where a small plastic module is easier to fit.
Installation requires flexible, versatile mounting options with tie-points or screw holes.
The deployment is in rural ODN or drop-level distribution where rack compatibility is not needed.
Budget is constrained – ABS modules typically cost less than metal LGX cassettes.
Mixed deployment strategy:
Use LGX cassettes in the central office or data center headend for professional rack-based management, and ABS modules in the field at distribution points, pole-mounted cabinets, or outdoor FDB enclosures. This leverages the strengths of each format: rack-based modularity indoors, and compact, weather-resistant packaging outdoors.
Key decision factors:
| Factor | LGX Cassette | ABS Module |
|---|---|---|
| Best for | Indoor racks, ODF, data centers | Outdoor FTTH, FAT/FDB/CTO boxes |
| Mounting | Slides into 19″ racks or LGX enclosures | Tie-points, screws, or adhesive |
| Density | Lower per rack unit (larger footprint) | Higher (compact size) |
| Maintenance | Hot-swappable, front access | Requires opening enclosure |
| Cost | Higher | Lower |
| Environmental | Indoor, controlled climate | Outdoor, weather-resistant housing |
Installation Instructions of 1×4 LGX Cassette Fiber Optic Splitter
Pre‑installation Inspection
Check the LGX cassette for damage; ensure SC/APC connectors are clean and pigtails are intact. Verify port labeling is clear.
Installation in the Enclosure

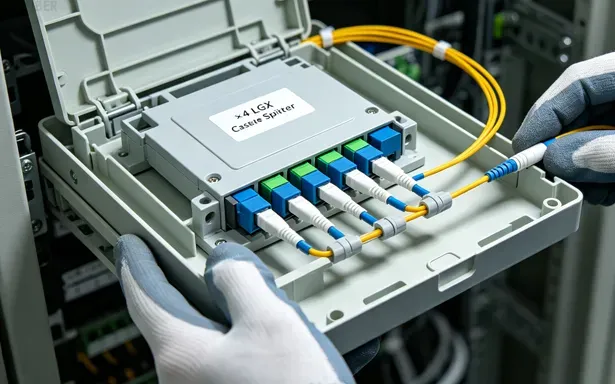

Insert the cassette into the patch panel slot, align properly, and secure it (screws or locking mechanism if needed).
Fiber Connection
Connect the input fiber (G652D/G657A) to the input port; align the SC/APC key and push until it locks. Connect output fibers to the four ports and label each clearly.
Testing
Measure insertion loss at each output port with an optical power meter. If values exceed specification, re‑clean connectors, check connections, and inspect the splitter. Also verify return loss meets standards.
