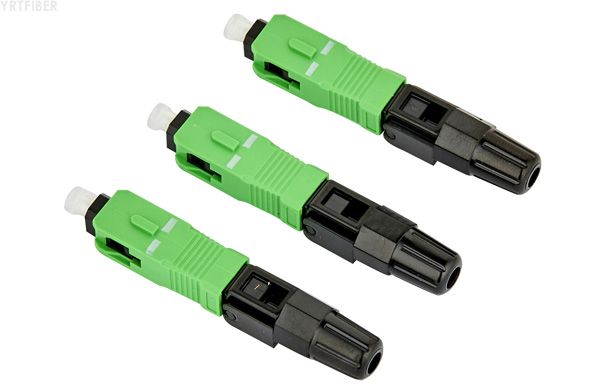

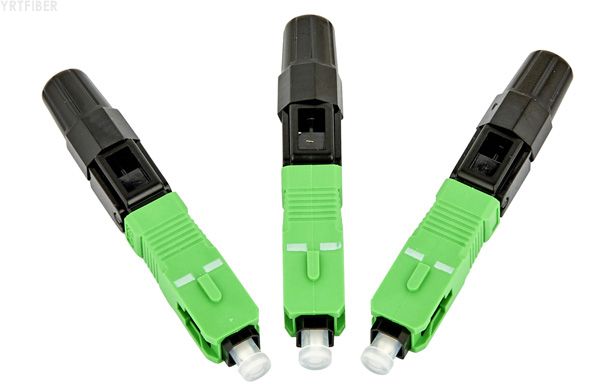

SC/APC Fiber Fast Connector | No Fusion Splicing, Tool-Free Termination
Push-Pull SC Design: Quick installation with a square shell housing.
8° APC Polished End: Minimizes back reflection, RL ≥ 60dB.
Tool-Free Assembly: No need for fusion splicing or polishing tools.
Pre-embedded Fiber: Simplifies on-site termination, reducing installation time.
Reliable & Stable: Tested for vibration, temperature cycling, and flooding conditions.
Wide Compatibility: Suitable for CATV, FTTH, security, and data networks.
What is SC/APC fiber fast connector
The SC/APC fiber fast connector is a game - changing solution in the field of optical fiber connectivity. It offers a field - installable option that combines the high - performance, low - reflection capabilities of APC (Angled Physical Contact) technology with a tool - free, quick - assembly feature. This makes it an ideal choice for rapid network deployments where time is of the essence, while also maintaining strict control over high return loss to ensure reliable optical signal transmission.
SC/APC Fiber Fast Connector Specification parameters
- Specification parameters
- OPTICAL CHARACTERISTICS
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 40 dB |
| Fiber Diameter | 125 μm - 900 μm |
| Operating Temperature | -40 °C to +85 °C |
| Interpolation Loss | ≤ 0.5 dB |
| Temperature Cycle (IL Change) | ≤ 0.3 dB |
| Repeatability (IL Change) | ≤ 0.3 dB |
| Vibration (IL Change) | ≤ 0.3 dB |
| Environmental Adaptability | Field‑tested |
| Customization | Available per requirement |

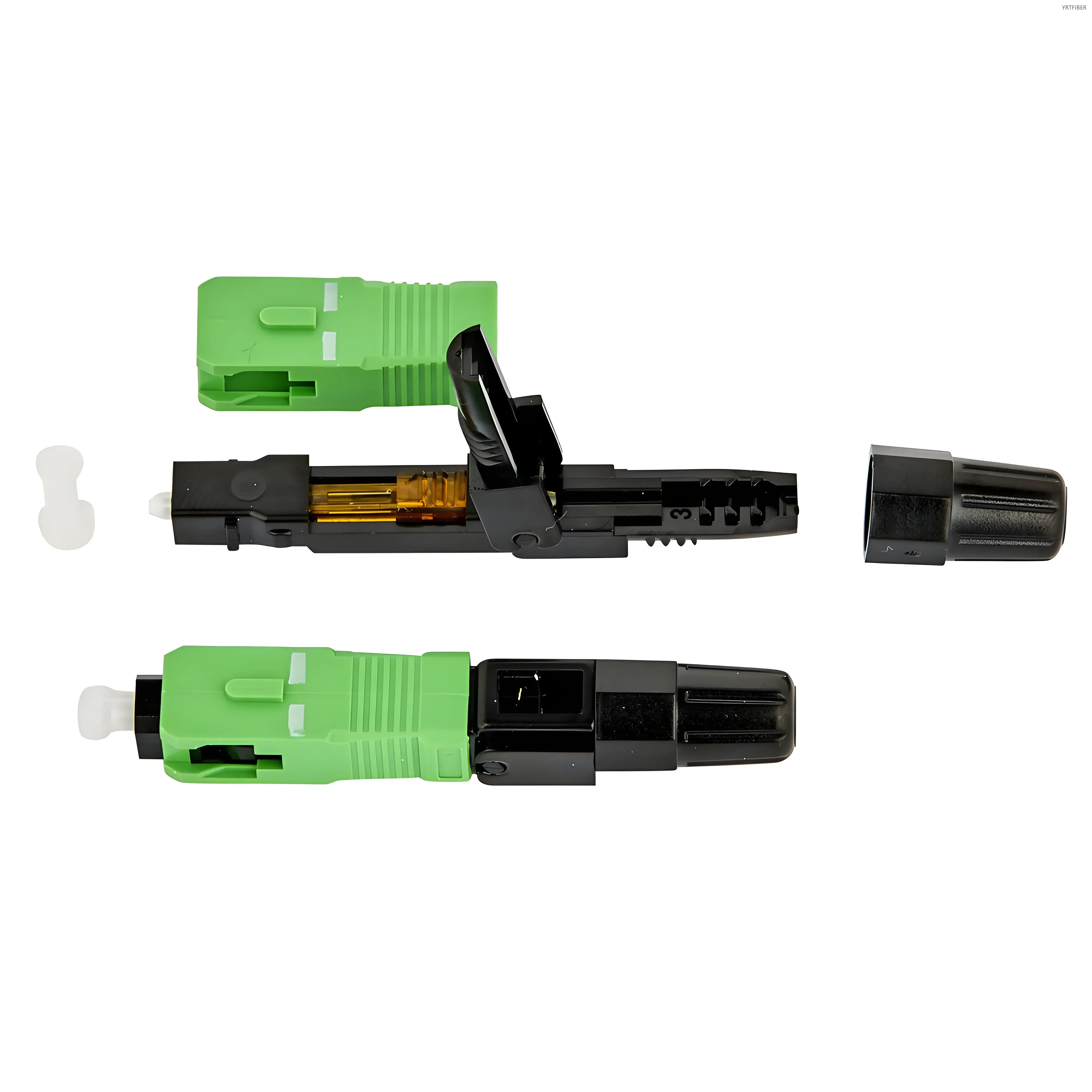

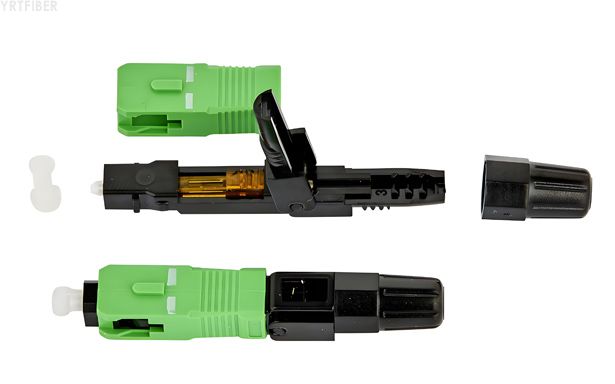

Product Structure & Composition
Pre-polished ceramic ferrule – End face with an 8° APC angle, factory pre-polished, with a built-in fiber stub, no on-site polishing required.
V-groove mechanical coupling – Precisely aligns the on-site bare fiber with the stub inside the ferrule to achieve a physical connection.
Refractive index matching gel – Fills the mating gap to reduce insertion loss.
SC-type green housing – Standard rectangular plug-in shell with a latch.
Boot and locking nut – Protects the fiber exit, locks the fiber in place when tightened.
During on-site installation, you just need to strip, clean, cut, insert, and lock, no fusion splicing or epoxy needed. Typical insertion loss ≤0.35dB, return loss ≥50dB.
Benefits of SC/APC Fiber Fast Connector
Push-Pull SC Design & 8° APC Polished End
The square-shell push-pull housing enables quick plug/unplug with a secure, ergonomic grip, reducing accidental disconnections. The 8° APC end face delivers RL ≥ 60 dB, drastically suppressing back-reflection to preserve signal integrity in high‑speed, long‑haul transmission.
Tool‑Free Assembly & Pre‑embedded Fiber
Eliminating fusion splicing and polishing tools, the connector allows any technician to terminate on‑site instantly. The pre‑embedded fiber further simplifies field work by removing alignment steps, cutting installation time, labor costs, and error risks.
Reliable & Stable
Rigorously tested under vibration, thermal cycling, and flooding, it maintains consistent performance in harsh industrial, climatic, or wet environments.
Wide Compatibility
Supports CATV, FTTH, security, and data networks—offering low reflection for broadcast, quick deployment for home terminals, stable links for surveillance, and low‑loss connectivity for high‑speed data transmission.
Engineering Applications SC/APC Fiber Fast Connector
FTTH (Fiber‑to‑the‑Home)
Quick, tool‑free termination for subscriber premises, supporting high‑speed internet, IPTV, and VoIP. Reduces installation time and improves customer satisfaction.
Data Center Migration
Used for rack interconnects and temporary patching during reconfiguration. Rapid plug‑and‑play capability minimizes network downtime and speeds up migration.
CATV (Cable Television)
8° APC polish delivers high return loss to minimize reflections, ensuring high‑quality, interference‑free broadcast signal delivery to end‑users.
Shipping & Packaging
Product Comparison：

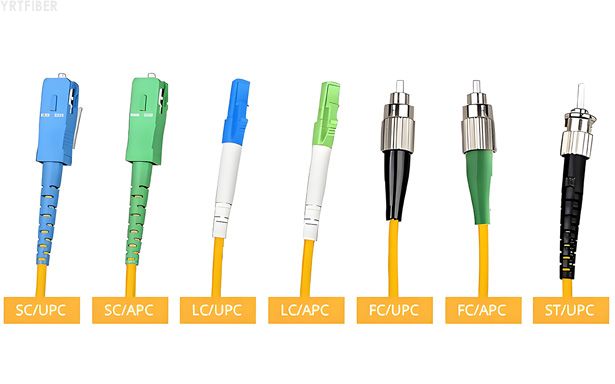

| Feature / Dimension | SC/APC Fast Connector | SC/UPC Fast Connector | LC/APC Fast Connector |
|---|---|---|---|
| Connector Type | SC (Standard Connector) with Angled Physical Contact (APC) polish | SC (Standard Connector) with Ultra Physical Contact (UPC) polish | LC (Lucent Connector) with Angled Physical Contact (APC) polish |
| Ferrule / Polishing | 2.5mm ceramic ferrule, 8° angled polish for superior return loss | 2.5mm ceramic ferrule, flat ultra-smooth polish for low insertion loss | 1.25mm ceramic ferrule, 8° angled polish for superior return loss |
| Typical Applications | FTTH/FTTx, CATV, analog RF over fiber, PON uplinks, long-haul single-mode networks | Standard single-mode digital links, telecom rooms, LAN, general data communication | High-density FTTH/FTTx, data centers, high-speed 10G/40G/100G links |
| Insertion Loss (Typical) | ≤ 0.35 dB | ≤ 0.3 dB | ≤ 0.3 dB |
| Return Loss (Typical) | ≥ 50 dB (some up to 60dB) | ≥ 50 dB | ≥ 55 dB |
| Key Advantage | Excellent back-reflection suppression; minimal signal degradation | Simple installation; standard for most digital applications; lower cost | High-density and high-performance; compact size saves space |
| Key Disadvantage | Larger footprint than LC; not for high-density panels | Higher back-reflection; not suitable for analog or PON uplinks | Higher cost than SC; more delicate due to smaller size |
| Color Code | Green | Blue | Green |
| Cable Compatibility | Supports 0.9mm, 2.0mm, 3.0mm single-mode and multimode fibers | Supports 0.9mm, 2.0mm, 3.0mm single-mode and multimode fibers | Supports 0.9mm, 2.0mm, 3.0mm single-mode and multimode fibers |
| Field Installation Tools | Fiber stripper, alcohol wipes, and a precision cleaver | Fiber stripper, alcohol wipes, and a precision cleaver | Fiber stripper, alcohol wipes, and a precision cleaver |
SC/APC Fiber Fast Connector Selection Guide
Choose the SC/APC Fast Connector when:
Deploying FTTH/FTTx networks where signal integrity is critical. The angled 8° polish significantly reduces back-reflection (return loss ≥50dB), which is essential for PON (Passive Optical Network) uplinks and RF-over-fiber applications like CATV.
Working with analog or sensitive video transmission systems, as the superior return loss minimizes signal degradation caused by reflected light.
Operating in standard telecom rooms or ODN (Optical Distribution Network) environments where the larger SC connector's push-pull mechanism provides durability and consistent alignment.
Needing field termination without epoxy or polishing. The pre-polished ferrule and mechanical splice technology allow for quick, reliable terminations in the field.
Choose the SC/UPC Fast Connector when:
The application is standard digital communication (e.g., LAN, CCTV, general data links) where high return loss is not a primary requirement.
Budget is a primary constraint. SC/UPC connectors are generally more cost-effective than their APC counterparts while still offering low insertion loss.
The network does not require analog or PON uplink performance. For standard point-to-point digital links, UPC polishing provides adequate performance.
Choose the LC/APC Fast Connector when:
Space is at a premium. The LC connector's 1.25mm ferrule occupies half the space of an SC connector, making it ideal for high-density patch panels and data centers.
High-speed transmission (10G/40G/100G) and high performance are required, especially in single-mode networks where low back-reflection is critical.
Deploying modern FTTH networks in space-constrained environments like MDUs (Multi-Dwelling Units) or small telecom cabinets.
Note: Green connectors indicate APC, and blue indicates UPC. Never mix APC and UPC connectors in a link, as this will cause high insertion loss and damage the ferrule end-faces.
Summary Decision Matrix:
| Factor | SC/APC | SC/UPC | LC/APC |
|---|---|---|---|
| Best for | FTTH, CATV, Analog RF | LAN, Standard Digital | High-Density, Data Centers |
| Return Loss | Excellent | Good | Excellent |
| Space Efficiency | Moderate | Moderate | High |
| Cost | Medium | Low | Medium-High |
| Field Termination | Tool-less, Quick | Tool-less, Quick | Tool-less, Quick |
Installation Instructions
Check – Make sure the housing has no cracks, the APC end face is clean and scratch-free, and the pre-installed fiber has no bends or cuts.
Fiber Preparation – Strip the jacket to expose 125~900μm of the fiber core, then wipe it clean with a non-woven cloth and cleaner.
Connector Installation – Align the prepared fiber with the pre-installed fiber, push it in along the SC push-pull mechanism until it locks.
Testing – Measure insertion loss ≤0.3dB, overall return loss ≥40dB, APC end ≥60dB; if it exceeds limits, recheck alignment, connection, or the APC end face.
Download YRTFIBER Product Catalog
Factory Real Shot
Frequently Asked Questions & Quick Inquiry
SC/APC Fiber Fast Connector FAQ
Why is the 8° APC polish important for minimizing back - reflection?
The 8° angled surface of the APC polish causes the reflected light to be redirected at an angle, reducing the amount of light that is reflected back towards the source. In a standard flat - polished connector, a significant portion of the light can be reflected straight back, causing interference. The angled surface of the APC polish scatters the reflected light, resulting in a much higher return loss, typically RL ≥ 60dB in this case, which effectively minimizes back - reflection and improves signal quality.
Can the SC/APC fiber fast connector be used in outdoor applications?
Yes, it can be used in outdoor applications. It has been tested for temperature cycling (operating temperature from -40 to +85°;C), vibration, and environmental adaptability. These tests ensure that it can withstand the harsh environmental conditions often associated with outdoor use, such as temperature variations, wind - induced vibrations, and exposure to moisture. However, it may be necessary to use appropriate protective enclosures or coatings depending on the specific outdoor environment.
What is the advantage of pre - embedded fiber in the connector?
The pre - embedded fiber simplifies the on - site termination process. Instead of having to carefully insert and align the fiber during installation, which can be a complex and time - consuming task, especially in the field, the pre - embedded fiber is already in place. This reduces the installation time significantly and also reduces the risk of installation errors, as there is less room for misalignment. It allows for a more efficient and reliable installation, even by installers with limited experience in fiber optic termination.
