YRTFIBER GYTA light armored cable with stranded loose tube, aluminum tape armor, steel wire strength member, PE sheath, G.652D/G.655 fibers. Ideal for duct networks requiring EMI protection.
  • Product ModelGYTA
  • Fiber Core Count2-144 Cores
  • Fiber TypeSM
  • Fiber ModeG652D/G657
  • Outer JacketPE

What is GYTA Fiber Optic Cable

The GYTA cable places a 250 μm fiber in a loose sleeve made of high modulus plastic. The sleeve is filled with waterproof filler, and there is a steel wire in the center as a metal reinforcement. For high-core cables, PE is sometimes coated. The sleeve and filler are twisted around the reinforcement to form a compact round cable core. The cable core is covered with a layer of APL and filled with waterproof filler to prevent water from penetrating. Finally, the cable is completed with a PE jacket.

GYTA armored Fiber Optic Cable Specification parameters

Technical parameters

ModelFiber coresTubesDiameter(mm)Weight(kgs)Tensile(N)Crush(N)Bending radius





Long termShort termLong termShort termStatic/ Dynamic
GYTA-12 ~ 36F12~362~69.2808001500300100010D/20D
GYTA-38 ~ 72F38~722~610.58010003000300100010D/20D
GYTA-74 ~ 96F74~967~813.212515003000300100010D/20D
GYTA-98 ~ 120F98~1209~1014.618018003000300100010D/20D
GYTA-122 ~ 144F122~14411~1216.522020003000300100010D/20D

Optical properties

G.652 G.655 50/125μm 62.5/125μm
attenuation (+20℃) ≤3.0dB/km @850nm ≤3.0dB/km @850nm
≤1.0dB/km @1300nm ≤1.0dB/km @1300nm
≤0.36dB/km @1310nm --
≤0.22dB/km @1550nm ≤0.23dB/km @1550nm
bandwidth
(Class A)
≥500MHZ·km @850 ≥500MHZ·km @850
≥1000MHZ·km @1300 ≥600MHZ·km @1300
Numerical
aperture
0.200±0.015NA 0.275±0.015NA
cutoff
wavelength
≤1260nm ≤1480nm

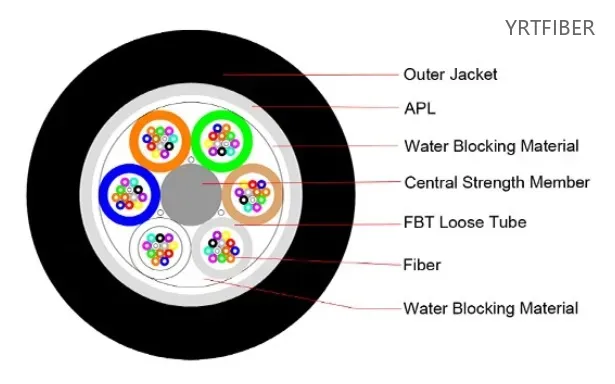

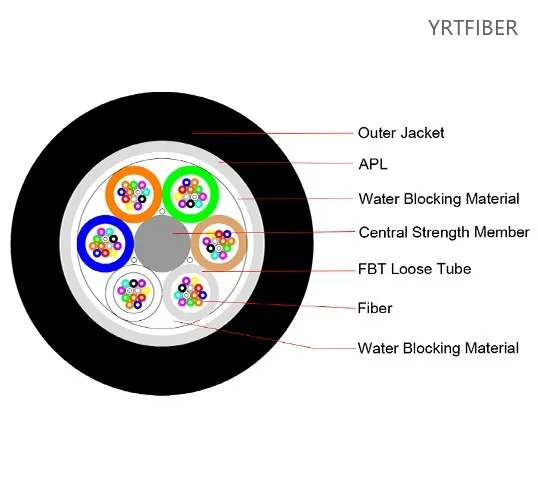

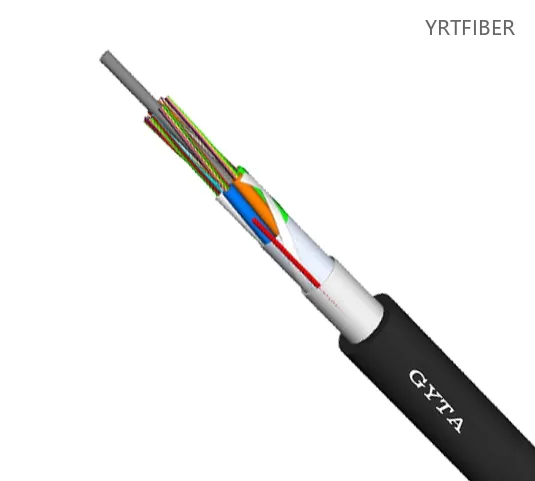

Product Structure & Composition


Outer sheath: Black PE, UV‑, corrosion‑, and abrasion‑resistant; protects the cable core.

APL (aluminum‑plastic composite tape): Longitudinally wrapped, provides moisture resistance, water blocking, crush resistance, and EMI shielding.

Water‑blocking layer (inside the APL): Swellable tape/yarn that stops longitudinal water penetration.

Central strength member: Steel wire or FRP rod, bears tensile loads during installation and operation.

Loose tube (PBT): Houses fibers loosely, buffers external stress.

Optical fiber: Single‑mode (e.g., G.652D/G.655), ensures low‑loss, high‑bandwidth transmission.

Water‑blocking gel inside tube: Thixotropic, protects fibers, prevents moisture ingress, and does not affect micro‑bending performance.

GYTA Stranded Loose Tube Light Armored Fiber Optic Cable – Aluminum Tape Armor, Anti-EMI(Image1)

Benefits of  GYTA armored Fiber Optic Cable

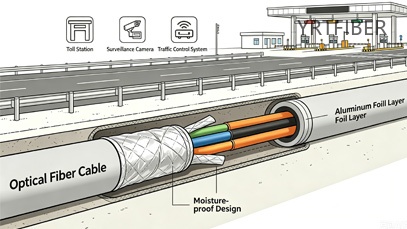

1. Mechanical and environmental protection

It offers good mechanical strength and high temperature resistance. The PE outer jacket provides effective UV protection, while the aluminum‑polyethylene laminate (APL) acts as a moisture barrier.

GYTA Stranded Loose Tube Light Armored Fiber Optic Cable – Aluminum Tape Armor, Anti-EMI(Image1)

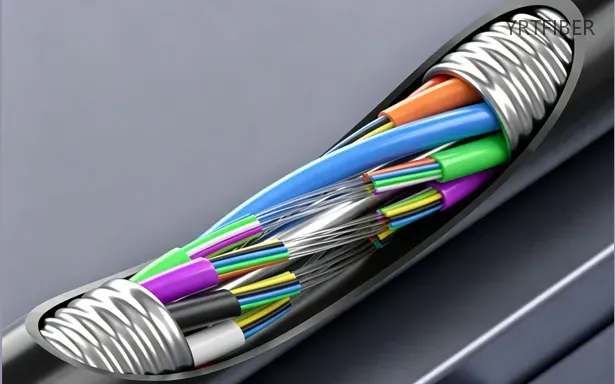

2. Fiber protection and structural design

It features a high‑strength, hydrolysis‑resistant loose tube. Special filling compounds inside the tube play a key role in protecting the optical fibers. The specially designed compact structure prevents loose tube shrinkage, ensuring long‑term stability.

GYTA Stranded Loose Tube Light Armored Fiber Optic Cable – Aluminum Tape Armor, Anti-EMI(Image2)

Engineering Applications  GYTA armored Fiber Optic Cable

GYTA Stranded Loose Tube Light Armored Fiber Optic Cable – Aluminum Tape Armor, Anti-EMI(Image1)

Outdoor duct networks

Use GYTA for a loose-tube link in ducts where the aluminium-laminate moisture barrier and confirmed cable ratings meet the route conditions. Check duct condition, pulling tension and water blocking; the aluminium layer is not equivalent to steel tape armour.

Selection guide: GYTA53 vs GYTS vs GYTA: Which is more suitable for your project?.

Selection guide: Stranded Fiber Optic Cable: Structure, Types and Selection Guide.

GYTA Stranded Loose Tube Light Armored Fiber Optic Cable – Aluminum Tape Armor, Anti-EMI(Image2)

Campus feeder distribution

Group fibres by destination for connections between outdoor campus distribution points. Use sealed closures and leave access space at handholes; where the route includes unprotected burial or greater crushing risk, evaluate a suitable steel-armoured double-sheath cable.

GYTA Stranded Loose Tube Light Armored Fiber Optic Cable – Aluminum Tape Armor, Anti-EMI(Image3)

Overhead route relocation

GYTA can form a supported overhead section only when the cable and separate messenger or support system are specified together. It has no integrated aerial messenger, and its metal barrier means it is not an all-dielectric cable.

Product Comparison:

GYTA vs GYTS vs GYXTW

Feature / DimensionGYTA (Aluminum Tape Armor)GYTS (Steel Tape Armor)GYXTW (Central Tube, Steel Tape Armor)
Structure TypeStranded loose tube around central metal strength memberStranded loose tube around central metal strength memberCentral tube with two parallel steel wires
Armor MaterialCorrugated aluminum tape (APL)Corrugated steel tape (PSP)Corrugated steel tape (PSP)
Outer SheathPolyethylene (PE) - UV resistantPolyethylene (PE) - UV resistantPolyethylene (PE) - UV resistant
Fiber Core Capacity2 - 144 cores (up to 432 cores in some designs)2 - 288 cores (up to 576 cores)2 - 24 cores (max 48 cores)
Typical ApplicationsDuct, aerial (with messenger), direct burial (light duty). Preferred for wet or coastal areas due to corrosion resistance.Duct, aerial (with messenger), direct burial. Suitable for harsh environments requiring high crush resistance.Aerial (with messenger), duct, light direct burial. Ideal for low‑core‑count access networks and FTTH.
Engineering ProsMoisture barrier and corrosion resistance (aluminum does not rust). Lighter than steel armor. Good for long‑term duct installation.High crush and tensile strength mechanical protection (rodent, bullet). for direct burial and rocky terrain.Compact, small diameter, light weight, low cost. Easy to install in ducts or on poles. Simple structure reduces installation time.
Engineering ConsLower crush resistance than steel armor. Aluminum is softer - not suitable for extreme mechanical stress. Requires careful handling during backfill.Heavier and stiffer than GYTA. Steel tape can corrode if sheath is damaged. Larger bending radius.Limited core count, poor crush resistance compared to stranded designs. Not recommended for long direct burial or high‑stress environments.
Corrosion / Moisture ResistanceExcellent (aluminum naturally resistant, full water‑blocking compound)Good, but steel can rust when coating is damaged; moisture ingress possible at cut pointsGood, same as GYTS (steel tape), but shorter water blocking path due to central tube
Crush ResistanceModerate (typical 1000 N/100mm)High (typical 3000 N/100mm or more)Moderate (similar to GYTA, but central tube structure less tolerant)
Installation FlexibilityMore flexible than GYTS, easier to handle in ductsStiffer, requires larger pulling force and bend radiusVery flexible due to small diameter, easy to route in congested ducts
Cost (Relative)Medium (aluminum tape is cheaper than steel tape)Medium to high (steel armor increases material and transport cost)Low (simple construction, best cost‑performance for low fiber counts)
Maintenance DifficultyLow - corrosion resistance reduces long‑term issues; mid‑span access easier than steel armorModerate - heavier armor makes repairs harder; must inspect for rust at sheath damage pointsLow - simple structure, easy to splice and maintain, but limited protection may lead to higher fault rate in harsh environments

GYTA armored Fiber Optic Cable  Selection Guide

GYTA Optical Cable - Installation Instructions

Minimum bending radius:During installation: 20 × cable diameter; after installation: 10 × cable diameter.

Tensile load:Maximum allowable pulling force: 1500-3000 N (depending on core count). Use a proper pulling grip to avoid stress on the fibers.

Crushing resistance:Short-term: 3000 N/100 mm; long-term: 1000 N/100 mm. Do not crush or impact the cable sharply.

Installation methods:Suitable for duct, aerial (with messenger wire), and direct burial (if additional protection is applied). Avoid sharp edges and excessive twisting.

Temperature range:Installation: -20°C to +60°C; operation: -40°C to +70°C.

Handling notes:Do not exceed the rated pulling force. Use lubricant for long duct runs. Keep the cable end sealed against moisture during and after installation.

GYTA Stranded Loose Tube Light Armored Fiber Optic Cable – Aluminum Tape Armor, Anti-EMI(Image1)

Download YRTFIBER Product Catalog

QUICKLY DOWNLOAD THE CATALOG
To save your time, please download our catalog

Factory Real Shot

Advanced In‑House Testing & Quality Assurance

Every production stage is validated: fiber attenuation (OTDR), loose tube dimensional check, aluminum tape lap‑welding integrity, and PE sheath spark test. A fully equipped mechanical lab performs tensile, crush, impact, and water‑blocking tests per IEC/TIA standards — no third‑party bottleneck.

GYTA Stranded Loose Tube Light Armored Fiber Optic Cable – Aluminum Tape Armor, Anti-EMI(Image1)

High‑Volume Production with Automated Lines

Dedicated SZ stranding lines, dual‑parallel sheathing extruders, and automatic take‑up systems run 24/7. Daily output exceeds 150 km of GYTA cable (up to 144 fibers). Real‑time line monitoring and data logging ensure consistent quality across every kilometer.

GYTA Stranded Loose Tube Light Armored Fiber Optic Cable – Aluminum Tape Armor, Anti-EMI(Image2)

Raw Material Supply Chain

On‑site silos for PE compounds, climate‑controlled storage for aluminum tapes and water‑blocking yarns, and just‑in‑time replenishment from qualified suppliers. No material substitution without customer approval — full lot traceability from fiber preform to final drum.

GYTA Stranded Loose Tube Light Armored Fiber Optic Cable – Aluminum Tape Armor, Anti-EMI(Image3)

Fully Integrated Optical Cable Manufacturing Facility

End‑to‑end process chain under one roof: fiber coloring, secondary coating, loose tube stranding, dual‑layer sheath extrusion. Segregated clean zones (coloring, extrusion, stranding, armoring, testing) ensure zero cross‑contamination and full traceability.

GYTA Stranded Loose Tube Light Armored Fiber Optic Cable – Aluminum Tape Armor, Anti-EMI(Image4)

Ordering & Delivery

Minimum order, lead time and the documents that ship with every order.

Ordering

  • Minimum order1 km (1 drum)
  • Lead time≤ 300 km: about 15 working days. Over 300 km: confirmed with your order.
  • PaymentT/T 30% deposit, balance against B/L copy. L/C at sight accepted.
  • InspectionFactory test report plus spot check on arrival. Third-party witness adds 7 working days.

How to order

  1. 1Send your specification and quantity.
  2. 2Quotation and datasheet within 24 hours.
  3. 3Confirm the PI, pay the deposit, production starts.

Delivery & loading

Container loading (reference)

Fiber countDrum weightDrums per 40HQkm per 40HQ
144F780 kg20–2380–92 km
288F1,350–1,550 kg16–2064–80 km

Based on 4,000 m drums of outdoor loose-tube cable. Final loading plan is confirmed before shipment.

Fiber and cable diameters vary by model, so the finished drum size — and the number of drums one 40HQ can hold — differ accordingly. The figures above are typical values close to actual loading; for the exact figure please consult our sales manager.

  • Port of shipmentQingdao · Guangzhou · Shenzhen
  • PackingWooden or steel drum, 2–5 km per drum, length marking every 1 m.

Documents with shipment

  • Mill test certificate
  • OTDR trace for every drum (bi-directional, 1310/1550 nm)
  • Drum no. / length / attenuation table
  • Packing list with gross and net weight
  • RoHS declaration and CE DoC
  • Lifting instructions

Packing & marking for this model

GYTA Stranded Loose Tube Light Armored Fiber Optic Cable – Aluminum Tape Armor, Anti-EMI(Image1)

GYTA Stranded Loose Tube Light Armored Fiber Optic Cable – Aluminum Tape Armor, Anti-EMI(Image2)GYTA Stranded Loose Tube Light Armored Fiber Optic Cable – Aluminum Tape Armor, Anti-EMI(Image3)

Packaging Requirements:

  • 1:All cables shall be wound on treated wooden spools that are not returnable

  • 2:Cable ends must be firmly secured to the spool and protected with waterproof shrink caps

  • 3:Each spool must include:

  • A protective outer layer of plastic wrapping

  • Reinforcing wooden slats to ensure stability

  • At least 1 meter of free cable end reserved for testing

  • A standard spool length of 3000 m (with a permissible tolerance of ±2%)



Cable Identification:

The outer jacket must display:

  • 1、Unique sequential numbering every 1m (±1% variance permitted)

  • 2、 Additional repeating markings at 1m intervals showing:

  • Product code and fiber count

  • Manufacturer identification

  • Production date (month/year)

  • Total cable length


Standard Packaging Dimensions:

LengthContainerSize (L×W×H)Net MassTotal Mass
2 kmWood spool90×75×90 cm156 kg220 kg
3 kmWood spool100×68×100 cm240 kg280 kg
4 kmWood spool109×75×109 cm300 kg368 kg
5 kmWood spool129×72×129 cm400 kg480 kg



Technical Reference:

  • 1、 Cable diameter and weight vary with fiber count and cable construction — see the specification table above.

  • 2、Maximum span depends on cable type and installation design — ask us to confirm for your route.

  • 3、Contact sales team for complete technical specifications



Spool Marking Standards:

Permanent markings (minimum 25-30mm height) must appear on both sides of each spool:

  1. 1、 Company name and trademark

  2. 2、Contained cable length

  3. 3、Cable specifications (type/fiber count)

  4. 4、Winding orientation

  5. 5、Weight measurements (gross/net)

Note: All wooden packaging materials must undergo proper fumigation treatment prior to use.

Frequently Asked Questions & Quick Inquiry

GYTA armored Fiber Optic Cable  FAQ

1. What is GYTA optical cable? What do the letters in the model mean?

GYTA is the standard model name for layered stranded metal-reinforced core aluminum strip armored outdoor optical cables. Where:

G stands for outdoor optical cable for communication;

Y stands for polyethylene sheath;

T stands for Filled structure;

A stands for Aluminum-Polyethylene bonded sheath (i.e., aluminum strip armor layer). The entire optical cable consists of a central metal-reinforced steel wire, loose sleeves filled with waterproof paste, longitudinally wrapped plastic-coated aluminum strips (APL), and an outer polyethylene sheath, offering waterproof and moisture-proof performance and moderate mechanical strength. This structure makes it especially suitable for pipeline laying and overhead installations, and is often referred to in the industry as "pipeline optical cable."

2. What are the core differences between GYTA and GYTS and GYTA53?

GYTA, GYTS, and GYTA53 are the three most commonly used layered outdoor optical cables, mainly distinguished by armor materials and protection levels. GYTS uses steel belt armor, while GYTA uses aluminum belt armor. Aluminum strips are about 30% lighter than steel strips, offer better moisture and rust resistance, and have some resistance to electromagnetic interference, thus extending their lifespan in pipeline threading scenarios; GYTS with steel strip armor has higher lateral compression strength and is more suitable for overhead installation.



The GYTA53 can be seen as GYTA's "enhanced protective version." In addition to GYTA's original aluminum strip sheath, it adds a layer of wrinkled steel strip armor and a polyethylene outer sheath, forming a three-layer composite structure of "inner sheath + steel band armor + outer sheath." This makes GYTA53's tensile strength and compressive force higher than ordinary GYTA, allowing it to be buried directly underground, resist rodent bites, and mechanical damage, but also increase cost and weight. Simply put: for general pipeline and overhead scenarios, GYTA offers the best cost-performance ratio; For direct burial or construction in areas with frequent animal activity or wilderness, GYTA53 must be used.

3. What should be noted when installing and laying GYTA optical cables?

The construction quality of GYTA optical cables directly affects their long-term service life. The following are the most critical points in the project:



Bending radius control: During construction (i.e., in dynamic scenarios), the bending radius should not be less than 20 times the cable diameter; After construction is completed (in static scenarios), the cable diameter should not be less than 10 times the diameter.



Traction force limitation: The tensile strength of GYTA optical cables is limited. The traction force in the conduit must be controlled within the rated range. Generally, the tension strength of optical cables is 100-300kg. Excessive traction can cause fiber deformation or even breakage.



Burial depth requirements: The single pulling length during pipeline laying should not exceed 1000 meters; For direct burial, the depth under the carriageway must reach at least 0.8 meters; the joint box must ensure IP68 protection and be filled with desiccant to prevent condensation.



Lightning protection: GYTA contains a metal reinforced core and aluminum strip armor. When introducing indoors, grounding protection must be ensured; otherwise, lightning may enter and damage the equipment.



Water blocking treatment: GYTA uses a full-section water-blocking design, but if the outer sheath is damaged and water enters, the damaged section of the cable should be immediately cut off and re-spliced.

4. What are the common specifications of GYTA optical cables? What is the approximate price range?

GYTA optical cables have a range of cores, expanding from 2 cores to 144 cores. Common fiber types include G.652D single-mode and multi-mode fibers, with waterproof grease filling inside loose sleeves and water-blocking yarns or tapes between cable core gaps to achieve full-cross-section water resistance.



In terms of price, there are significant differences depending on the number of cores and the batch size. Taking the retail market as an example, 288-core GYTA optical cable costs about 16.53 yuan per meter. In bulk purchases by operators, prices are lower: in China Tower's recent centralized procurement project, the tax-excluded benchmark price for GYTA G.652D single-mode 12-core optical cable is 2.028 yuan per pi length kilometer (about 2.03 yuan/meter), 72 cores about 5.486 yuan per pi length kilometer (about 5.49 yuan/meter), and 144 cores about 10.426 yuan per pi length kilometer (about 10.43 yuan/meter). There are significant price differences among manufacturers, purchase volumes, and chip counts, so it is recommended to consider project needs and budget comprehensively when selecting models.

5. What scenarios are GYTA optical cables suitable for? Can indoor wiring be used?

GYTA optical cables are designed for outdoor pipelines and overhead installation. Its aluminum strip armor and polyethylene outer sheath offer moisture resistance, UV resistance, and weather resistance, making them widely used in long-distance communication trunk lines, urban pipeline networks, highway electromechanical communication systems, and overhead connections between buildings.



However, GYTA optical cables are not suitable for direct indoor wiring. There are three reasons: first, the metal armor layer and metal reinforcement core pose lightning risk after being introduced indoors; Second, waterproof grease inside loose sleeves may leak due to gravity after being vertically deployed for several years, polluting the environment; Third, the GYTA outer sheath is quite hard, making installation inconvenient in confined indoor spaces. If indoor installation is required, GYTZA flame-retardant optical cables or flame-retardant sheathed cables should be used at the incoming section, with strict grounding protection.

Send Your Inquiry

Fill out the form below and we'll get back to you within 24 hours.

Related technologies

Explore the knowledge behind this product

x
Send Your Inquiry Today
We use cookie to improve your online experience. By continuing to browse this website, you agree to our use of cookie.

Cookies

Please read our Terms and Conditions and this Policy before accessing or using our Services. If you cannot agree with this Policy or the Terms and Conditions, please do not access or use our Services. If you are located in a jurisdiction outside the European Economic Area, by using our Services, you accept the Terms and Conditions and accept our privacy practices described in this Policy.
We may modify this Policy at any time, without prior notice, and changes may apply to any Personal Information we already hold about you, as well as any new Personal Information collected after the Policy is modified. If we make changes, we will notify you by revising the date at the top of this Policy. We will provide you with advanced notice if we make any material changes to how we collect, use or disclose your Personal Information that impact your rights under this Policy. If you are located in a jurisdiction other than the European Economic Area, the United Kingdom or Switzerland (collectively “European Countries”), your continued access or use of our Services after receiving the notice of changes, constitutes your acknowledgement that you accept the updated Policy. In addition, we may provide you with real time disclosures or additional information about the Personal Information handling practices of specific parts of our Services. Such notices may supplement this Policy or provide you with additional choices about how we process your Personal Information.


Cookies

Cookies are small text files stored on your device when you access most Websites on the internet or open certain emails. Among other things, Cookies allow a Website to recognize your device and remember if you've been to the Website before. Examples of information collected by Cookies include your browser type and the address of the Website from which you arrived at our Website as well as IP address and clickstream behavior (that is the pages you view and the links you click).We use the term cookie to refer to Cookies and technologies that perform a similar function to Cookies (e.g., tags, pixels, web beacons, etc.). Cookies can be read by the originating Website on each subsequent visit and by any other Website that recognizes the cookie. The Website uses Cookies in order to make the Website easier to use, to support a better user experience, including the provision of information and functionality to you, as well as to provide us with information about how the Website is used so that we can make sure it is as up to date, relevant, and error free as we can. Cookies on the Website We use Cookies to personalize your experience when you visit the Site, uniquely identify your computer for security purposes, and enable us and our third-party service providers to serve ads on our behalf across the internet.

We classify Cookies in the following categories:
 ●  Strictly Necessary Cookies
 ●  Performance Cookies
 ●  Functional Cookies
 ●  Targeting Cookies


Cookie List
A cookie is a small piece of data (text file) that a website – when visited by a user – asks your browser to store on your device in order to remember information about you, such as your language preference or login information. Those cookies are set by us and called first-party cookies. We also use third-party cookies – which are cookies from a domain different than the domain of the website you are visiting – for our advertising and marketing efforts. More specifically, we use cookies and other tracking technologies for the following purposes:

Strictly Necessary Cookies
These cookies are necessary for the website to function and cannot be switched off in our systems. They are usually only set in response to actions made by you which amount to a request for services, such as setting your privacy preferences, logging in or filling in forms. You can set your browser to block or alert you about these cookies, but some parts of the site will not then work. These cookies do not store any personally identifiable information.

Functional Cookies
These cookies enable the website to provide enhanced functionality and personalisation. They may be set by us or by third party providers whose services we have added to our pages. If you do not allow these cookies then some or all of these services may not function properly.

Performance Cookies
These cookies allow us to count visits and traffic sources so we can measure and improve the performance of our site. They help us to know which pages are the most and least popular and see how visitors move around the site. All information these cookies collect is aggregated and therefore anonymous. If you do not allow these cookies we will not know when you have visited our site, and will not be able to monitor its performance.

Targeting Cookies
These cookies may be set through our site by our advertising partners. They may be used by those companies to build a profile of your interests and show you relevant adverts on other sites. They do not store directly personal information, but are based on uniquely identifying your browser and internet device. If you do not allow these cookies, you will experience less targeted advertising.

How To Turn Off Cookies
You can choose to restrict or block Cookies through your browser settings at any time. Please note that certain Cookies may be set as soon as you visit the Website, but you can remove them using your browser settings. However, please be aware that restricting or blocking Cookies set on the Website may impact the functionality or performance of the Website or prevent you from using certain services provided through the Website. It will also affect our ability to update the Website to cater for user preferences and improve performance. Cookies within Mobile Applications

We only use Strictly Necessary Cookies on our mobile applications. These Cookies are critical to the functionality of our applications, so if you block or delete these Cookies you may not be able to use the application. These Cookies are not shared with any other application on your mobile device. We never use the Cookies from the mobile application to store personal information about you.

If you have questions or concerns regarding any information in this Privacy Policy, please contact us by email at . You can also contact us via our customer service at our Site.
