MGTSV Armored Mining Fiber Optic Cable – Flame-Retardant PSP Steel Tape Armor
- Product ModelMGTSV
- Outer SheathPE
- Sheath MaterialLSZH
What is MGTSV Fiber Optic Cable?
MGTSV is a flame-retardant loose tube optical cable primarily used in coal mines. Its design places 250 μm optical fibers into high-modulus loose tubes filled with waterproof compound, which are then stranded around a central metal strength member. The cable core is filled with water-blocking material, wrapped with double-sided plastic-coated steel strip (PSP), and finished with an inner and outer polyethylene sheath. It complies with the MT386‑1995 flame retardancy standard for coal mine cables.
MGTSV fiber optic cable Specification parameters
- Specification parameters
- OPTICAL CHARACTERISTICS
structural parameters
| Cable Type | Fiber Count | Tubes Fills | diameter (mm) | weight (Kg/km) | Allowable tensile force (N) Long-term/ short-term | Allowable crushing force (N/100m) Long-term/ short-term | Bending radius (mm) Static/Dynamic |
|---|---|---|---|---|---|---|---|
| MGTSV-2~60 | 2~60 | 5 | 12.2 | 156 | 1000/2000 | 500/1500 | 15D/30D |
| MGTSV-62~72 | 62~72 | 6 | 13.8 | 210 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-74~96 | 74~96 | 8 | 15.1 | 242 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-98~120 | 98~120 | 10 | 17.2 | 280 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-122~144 | 122~144 | 12 | 19.0 | 320 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-146~216 | 146~216 | 18 | 19.0 | 320 | 1750/3500 | 500/1500 | 15D/30D |
Optical properties
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
|---|---|---|---|---|
| attenuation (+20℃) | ≤3.0dB/km @850nm | ≤3.0dB/km @850nm | ||
| ≤1.0dB/km @1300nm | ≤1.0dB/km @1300nm | |||
| ≤0.36dB/km @1310nm | -- | |||
| ≤0.22dB/km @1550nm | ≤0.23dB/km @1550nm | |||
|
bandwidth (Class A) |
≥500MHZ·km @850 | ≥500MHZ·km @850 | ||
| ≥1000MHZ·km @1300 | ≥600MHZ·km @1300 | |||
|
Numerical aperture |
0.200±0.015NA | 0.275±0.015NA | ||
|
cutoff wavelength |
≤1260nm | ≤1480nm |

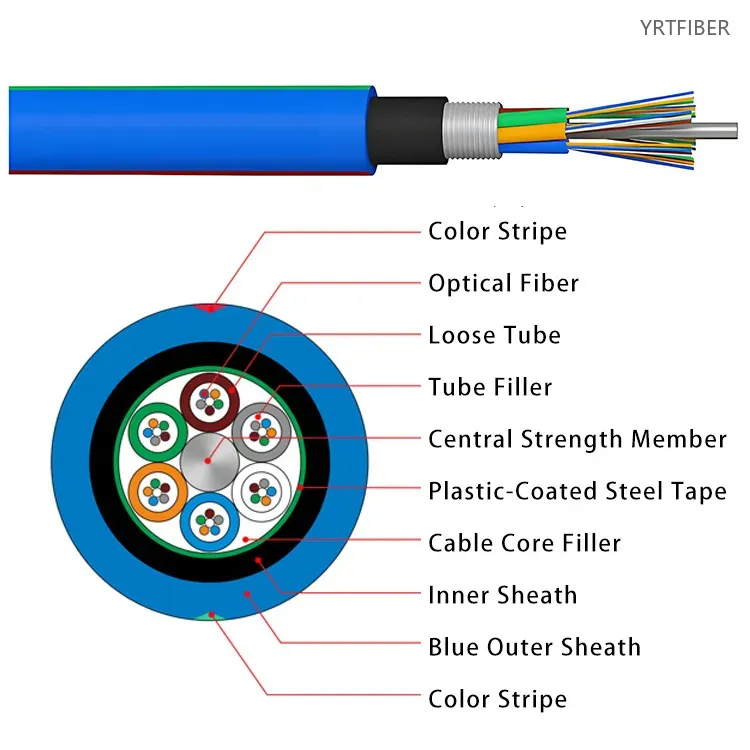

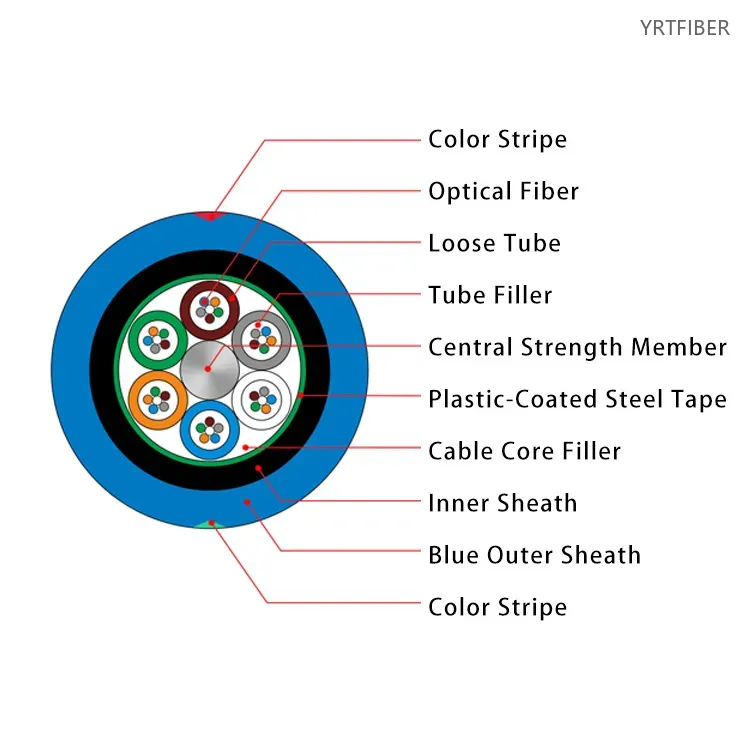

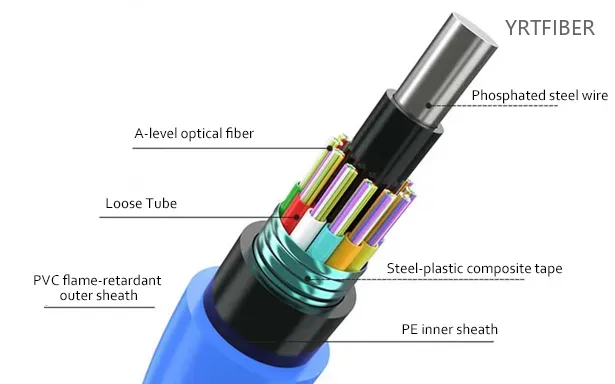

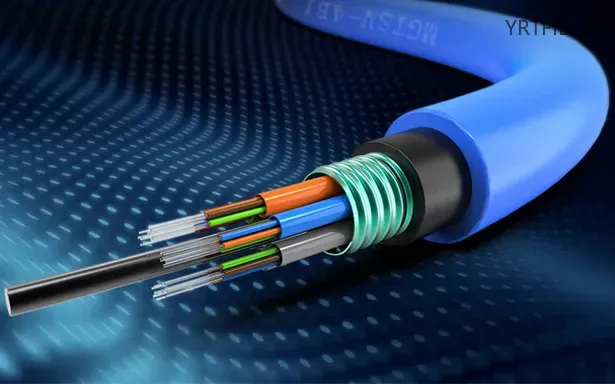

Product Structure & Composition
Central Strength Member - Located at the cable core center, typically a metal reinforcing core.
Loose Tubes - Stranded around the central strength member. Each tube contains optical fibers and is filled with tube filler (water-blocking compound).
Cable Core Filler - Fills the gaps between the loose tubes and the central strength member to provide longitudinal water blocking.
Plastic-Coated Steel Tape (PSP) - Longitudinally wrapped around the cable core to provide moisture resistance, crush resistance, and rodent protection.
Inner Sheath - Extruded over the steel tape, typically made of polyethylene (PE).
Blue Outer Sheath - The outermost layer made of flame-retardant blue PVC, with color stripes for identification.

Benefits of MGTSV fiber optic cable
Mechanical Robustness
Mechanical and temperature properties ensure stable operation under harsh conditions. Good pressure resistance protects the cable from crushing forces.
Two parallel steel wires provide high tensile strength, allowing the cable to withstand pulling during installation and mining use.

Fiber Protection Inside Loose Tubes
The loose tube material offers water resistance and high strength, keeping optical fibers safe in wet environments. Special ointment (water-blocking compound) inside the tube provides critical protection against moisture and mechanical shock.
Together, the tube and ointment prevent fiber damage and signal loss over long-term operation.

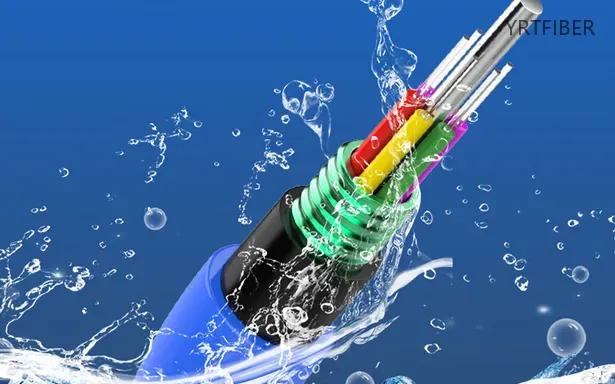

Moisture and Rodent Resistance
Double-sided plastic-coated steel strip (PSP) enhances moisture resistance and includes an anti-mouse function to prevent rodent bites. Water-blocking filler in the cable core prevents water seepage in the longitudinal direction.
This dual protection ensures performance even in underground mines or outdoor damp environments.

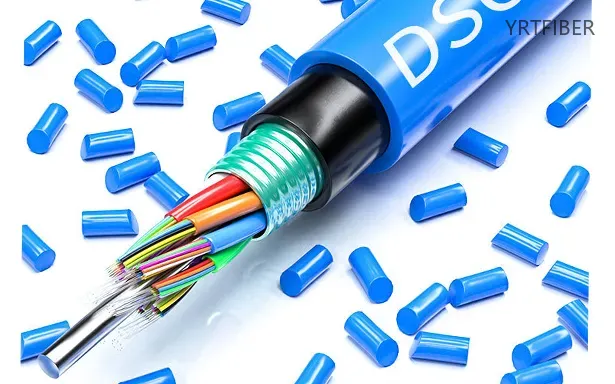

Flame Retardancy
The blue flame-retardant PVC secondary sheath delivers flame retardant effect. It meets coal mine safety standards (MT386-1995) by resisting fire propagation and reducing smoke.
This outer sheath is a key safety feature for underground mining and other high-risk installations.

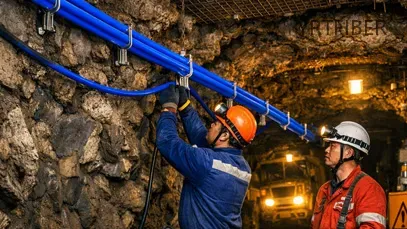

Engineering Applications MGTSV fiber optic cable
Product Comparison:
Mining Armored Optical Cable Series Comparison: MGTSV vs MGXTSV vs MGTSV33 vs GYTA53
| Dimension | MGTSV (Mining Stranded) | MGXTSV (Mining Central Tube) | MGTSV33 (Mining Double Steel Wire Armored) | GYTA53 (Non-mining Direct Burial Armored) |
|---|---|---|---|---|
| Application Scenario | Mining main trunk lines, ring networks, moderate mechanical stress environments | Mining branch lines, short-distance installation, high electromagnetic interference areas | Mining shafts, inclined shafts, high-stress roof areas, heavy load and tensile resistance required | Outdoor direct burial, duct, underwater, non-flammable/explosive environments |
| Structure | Central strength member + stranded loose tubes + PSP longitudinal armor + blue flame-retardant PVC sheath | Single central loose tube + 2 parallel steel wires + PSP armor + blue flame-retardant PVC sheath | Double steel wire armor added on top of MGTSV | Central strength member + stranded loose tubes + APL aluminum tape + PSP steel tape + black PE sheath |
| Fiber Count | 2-216 cores | 2-12 cores | 2-144 cores | 2-144 cores |
| Tensile Strength (Short-term) | 1500N | 1500N (corrected) | ≥8000N | ≥3000N |
| Crush Resistance (Short-term) | 1000N/100mm | 1000N/100mm (corrected) | ≥10000N/100mm | ≥3000N/100mm |
| Flame Retardant Certification | MT386-1995 mining flame retardant, blue sheath mandatory | MT386-1995 mining flame retardant, blue sheath | MT386-1995 mining flame retardant, blue sheath | No mining flame retardant requirement (standard PE sheath) |
| Water/Moisture Protection | Full cross-section water blocking (gel + filler + PSP) | Full cross-section water blocking | Full cross-section water blocking + wire armor gap sealing | Dual moisture barrier (APL + PSP), suitable for high water table environments |
| Cost Level | Medium | Lower | Very High | Medium to High |
Installation of ASU Fiber Optic Cable
YRTFIBER delivers GYTS fiber
Experts are available to give assistance

Download YRTFIBER Product Catalog
Factory Real Shot
Ordering & Delivery
Minimum order, lead time and the documents that ship with every order.
Ordering
- Minimum order1 km (1 drum)
- Lead time≤ 300 km: about 15 working days. Over 300 km: confirmed with your order.
- PaymentT/T 30% deposit, balance against B/L copy. L/C at sight accepted.
- InspectionFactory test report plus spot check on arrival. Third-party witness adds 7 working days.
How to order
- 1Send your specification and quantity.
- 2Quotation and datasheet within 24 hours.
- 3Confirm the PI, pay the deposit, production starts.
Delivery & loading
Container loading (reference)
| Fiber count | Drum weight | Drums per 40HQ | km per 40HQ |
|---|---|---|---|
| 144F | 780 kg | 20–23 | 80–92 km |
| 288F | 1,350–1,550 kg | 16–20 | 64–80 km |
Based on 4,000 m drums of outdoor loose-tube cable. Final loading plan is confirmed before shipment.
Fiber and cable diameters vary by model, so the finished drum size — and the number of drums one 40HQ can hold — differ accordingly. The figures above are typical values close to actual loading; for the exact figure please consult our sales manager.
- Port of shipmentQingdao · Guangzhou · Shenzhen
- PackingWooden or steel drum, 2–5 km per drum, length marking every 1 m.
Documents with shipment
- Mill test certificate
- OTDR trace for every drum (bi-directional, 1310/1550 nm)
- Drum no. / length / attenuation table
- Packing list with gross and net weight
- RoHS declaration and CE DoC
- Lifting instructions
Packing & marking for this model


Packaging Requirements:
1:All cables shall be wound on treated wooden spools that are not returnable
2:Cable ends must be firmly secured to the spool and protected with waterproof shrink caps
3:Each spool must include:
1、 Protective plastic wrapping layer
2、 Reinforcing wooden slats for stability
3、 Minimum 1m of free cable end for testing purposes
4、 Standard spool length: 3000 m (±2% tolerance allowed)
Cable Identification:
The outer jacket must display:
1、Unique sequential numbering every 1m (±1% variance permitted)
2、 Additional repeating markings at 1m intervals showing:
1、 Product code and fiber count
2、 Manufacturer identification
3、 Production date (month/year)
4、Total cable length
Standard Packaging Dimensions:
| Length | Container | Size (L×W×H) | Net Mass | Total Mass |
|---|---|---|---|---|
| 2 km | Wood spool | 90×75×90 cm | 156 kg | 220 kg |
| 3 km | Wood spool | 100×68×100 cm | 240 kg | 280 kg |
| 4 km | Wood spool | 109×75×109 cm | 300 kg | 368 kg |
| 5 km | Wood spool | 129×72×129 cm | 400 kg | 480 kg |
Technical Reference:
1、 Cable diameter and weight vary with fiber count and cable construction — see the specification table above.
2、Maximum span depends on cable type and installation design — ask us to confirm for your route.
3、Contact sales team for complete technical specifications
Spool Marking Standards:
Permanent markings (minimum 25-30mm height) must appear on both sides of each spool:
1、 Company name and trademark
2、Contained cable length
3、Cable specifications (type/fiber count)
4、Winding orientation
5、Weight measurements (gross/net)
Note: All wooden packaging materials must undergo proper fumigation treatment prior to use.
Frequently Asked Questions & Quick Inquiry
MGTSV fiber optic cable FAQ
Q1: What does MGTSV stand for?
MGTSV is a designated model for mining flame-retardant communication cables. The letters break down as follows:
M : stands for coal mine specific (mining-specific), G stands for optical fiber cable (communication),
T : indicates a Fill-type structure(water-blocking filled structure),
S : represents steel tape armor (double-sided coated steel strip)
V : denotes the blue flame-retardant PVC outer sheath. This naming convention helps users identify the cable's construction and intended application at a glance.
Q2: What is the difference between MGTSV and MGTS?
Although both are mining flame-retardant optical cables with a similar stranded loose tube construction (multiple loose tubes stranded around a central strength member), the key difference lies in the sheathing. MGTSV has a dual-layer sheath: a black PE inner sheath plus a blue flame-retardant PVC outer sheath. MGTS, by contrast, uses a single LSZH (Low Smoke Zero Halogen) sheath, which produces less toxic smoke in a fire but costs more. MGTSV is the standard certified model for coal mine applications; MGTS emerged later as a variant for users with higher environmental requirements.
Q3: What are the key installation requirements for MGTSV?
Proper installation is critical to avoid permanent damage. The pulling tension during laying should be controlled within 600N–1500N, and only the strength member and armor layers should bear the pulling force—never pull directly on the outer sheath or optical fibers. The minimum bending radius must be ≥20 times the cable's outer diameter during installation and ≥12.5 times during operation. Cables should be suspended with mine-approved flame-retardant hooks spaced 0.8–1.0m apart, maintaining a distance of at least 30cm from high-voltage power cables. Short-term crush resistance is 3000N/100mm, while long-term crush resistance is 1000N/100mm. Before installation, always verify the MA certification mark and ensure the cable type and fiber count match the project specifications.
Q4: How do I select the right MGTSV cable for my mine?
Fiber count is the primary factor: 4–12 cores are generally adequate for distances under 5km for monitoring and communication; for longer runs exceeding 5km, 24 cores or more are recommended to provide redundant links. The cable supports fiber counts from 2 to 144 cores, with a working temperature range of -40℃ to +60℃ and an IP67 protection rating. For wet environments, water-blocking MGTSV variants (e.g., MGTSV-33) are preferred; for areas with high impact risks, double-layer armored constructions offer protection. Always check that the product holds valid MA/KC mining safety certification.
Q5: What is the price range and where can I buy MGTSV?
MGTSV cable is typically sold in lengths starting from 1.000 meters (MOQ) at prices ranging from approximately US0.014 to US0.014 to US2.00 per meter, depending on fiber count, construction, and order volume. For example, a 12-core MGTSV is priced around $9.35 per unit in the Chinese domestic market. MGTSV costs about 30%–50% more than standard optical cables, but its service life can be three times longer, reducing long-term maintenance expenses. Suppliers can be found via major B2B platforms such as Made-in-China, Alibaba, and specialized cable manufacturers, many of which offer direct factory pricing.
