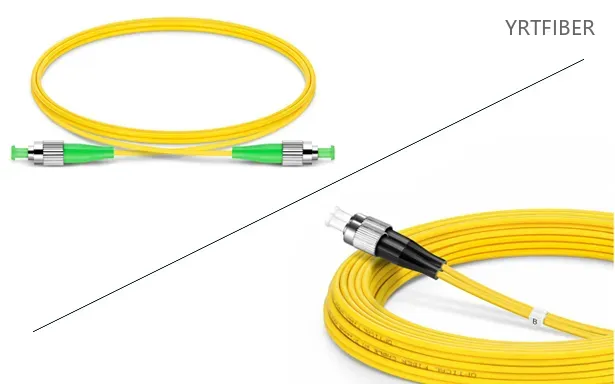

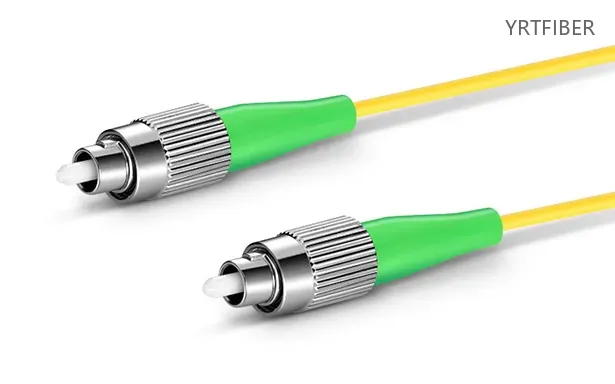

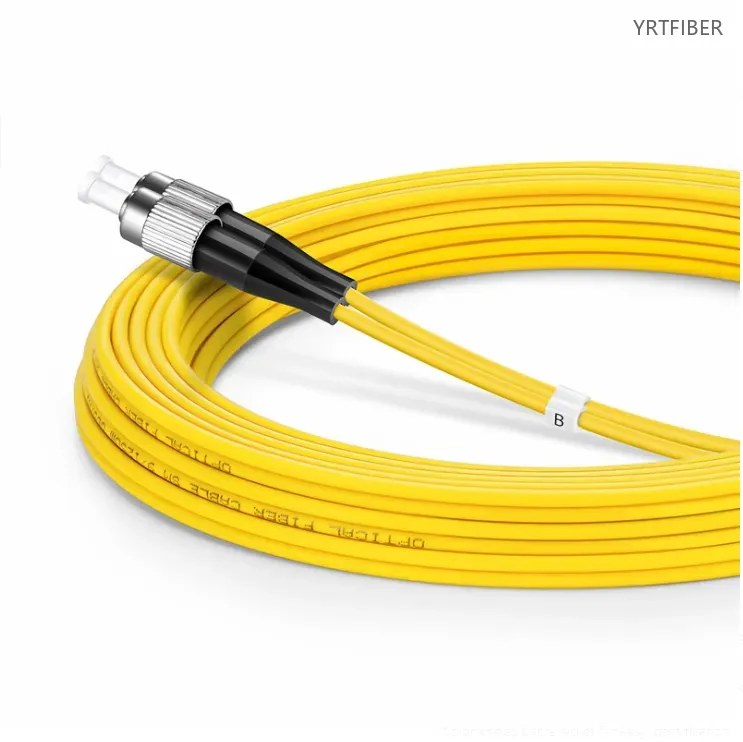

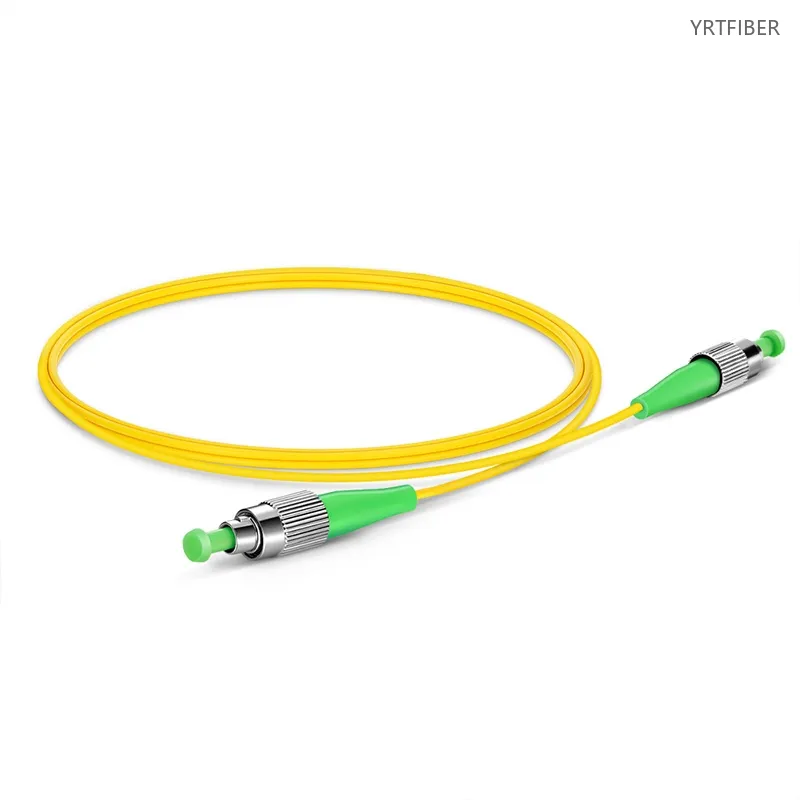

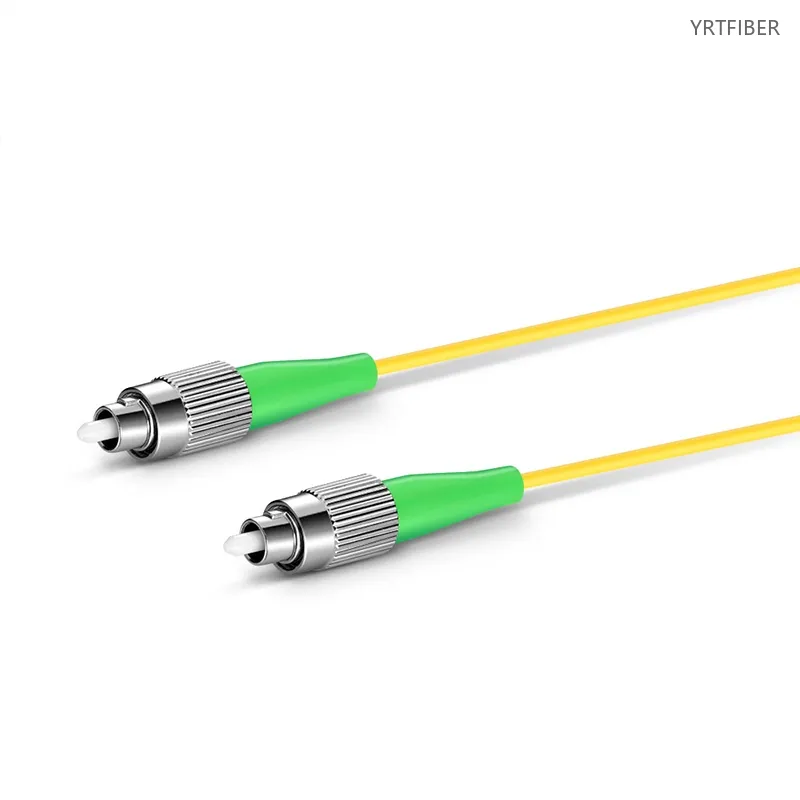

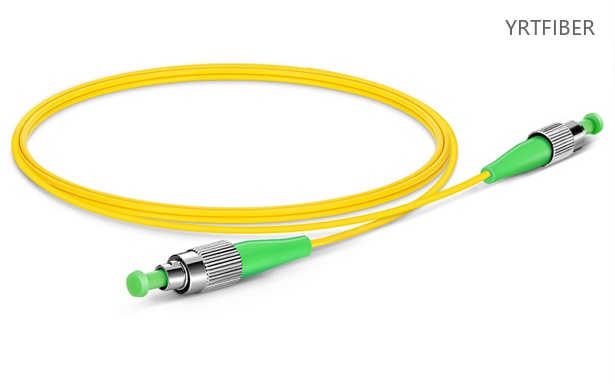

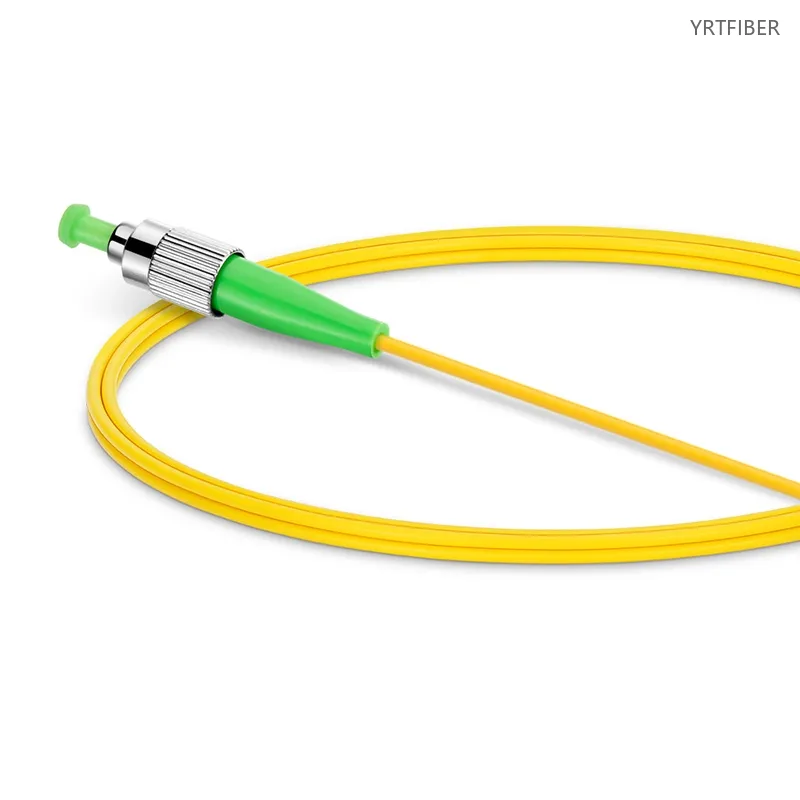

FC-FC APC Simplex Single-Mode Fiber Patch Cord – OS2, G.657.A1, OFNR
Utilizes high - quality single - mode G652D or G657A fiber for efficient optical signal transmission.
Exhibits low insertion loss and high return loss, ensuring stable signal performance.
Comes with factory - polished FC/APC connectors for a secure connection.
Features a flexible jacket made of PVC, LSZH, or OFNP, providing strong mechanical durability.
Undergoes 100% testing to meet or exceed international standards.
What is an FC - FC APC Simplex/Duplex Single - mode Optical Fiber Patch Cord?
An FC - FC APC Simplex/Duplex Single - mode Optical Fiber Patch Cord, also known as a fiber jumper cable, is designed to link fiber - optic devices equipped with FC interfaces. It offers stable and low - loss optical transmission, guaranteeing reliable connectivity within fiber communication networks. It is available in simplex or duplex configurations and uses high - quality single - mode G652D or G657A fiber along with factory - polished FC/APC connectors.
FC-FC APC Single mode fiber patch cord Specification parameters
- Specification parameters
- OPTICAL CHARACTERISTICS
FC APC Simplex
| Connector A | FC APC Simplex | Connector B | FC APC Simplex |
| Fiber Count | 1 Fiber | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| RoHS Compliancy Status | Compliant | Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 2.0mm | Flame Rating | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength | 60/100N (Long/Short Term) |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
| Attenuation at 1310nm | 0.4dB/km | Attenuation at 1550nm | 0.3dB/km |
| Operating Temperature | -10 to 70°C (14 to 158°F) | Storage Temperature | -20 to 70°C (-4 to 158°F) |
FC UPC Simplex
| Connector A | FC UPC Simplex | Connector B | FC UPC Simplex |
| Fiber Count | 1 Fiber | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| RoHS Compliancy Status | Compliant | Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 2.0mm | Flame Rating | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength | 60/100N (Long/Short Term) |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Attenuation at 1310nm | 0.4dB/km | Attenuation at 1550nm | 0.3dB/km |
| Operating Temperature | -20 to 70°C (-4 to 158°F) | Storage Temperature | -40 to 80°C (-40 to 176°F) |
Product Structure & Composition
Fiber Core and Cladding: 9/125 µm single‑mode G652D/G657A core guides optical signals; cladding confines light within the core.
Strength Members: Aramid yarns provide tensile strength, protecting fibers from pulling damage during installation and use.
Outer Jacket: PVC, LSZH, or OFNP – mechanical protection and environmental resistance; LSZH for low‑smoke/fire‑safe, OFNP for plenum spaces.

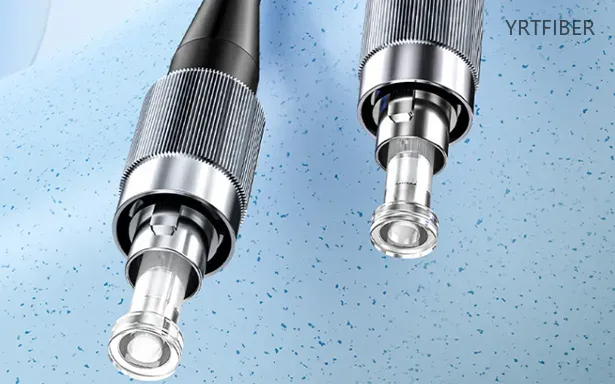

FC Connector: Threaded nickel‑plated brass body with 2.5 mm zirconia ferrule – secure, vibration‑resistant connection.

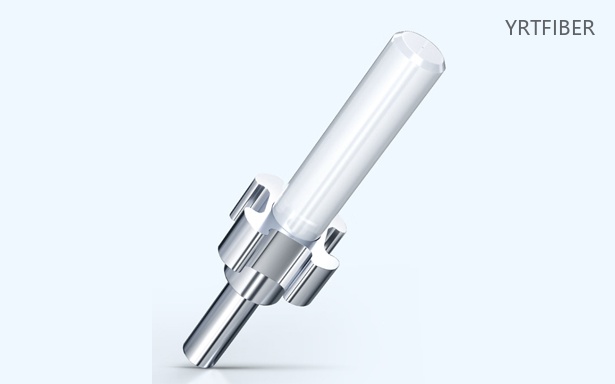

APC Polishing: Angled Physical Contact (8°) end‑face minimizes back‑reflection, delivering high return loss for low‑reflection applications.
Benefits of FC-FC APC Single mode fiber patch cord
Superior Signal Performance with APC Polishing
The APC polishing on the FC connectors results in a very high return loss. The angled end - face of the ferrule reduces back - reflection, which is critical for long - distance and high - bandwidth applications. This ensures stable signal transmission, especially in systems where signal integrity is of utmost importance, such as in telecommunications backbone networks and high - performance data centers.
High - quality Single - mode Fiber
Using high - quality single - mode G652D or G657A fiber offers excellent low - attenuation characteristics. G652D is a standard single - mode fiber widely used in general - purpose long - distance transmission, while G657A, especially G657A1 and G657A2, has bend - insensitive properties. This makes the patch cord suitable for various installation scenarios, from traditional long - haul setups to those with space - constrained or high - bend - requirement environments.
Secure and Durable FC Connector
The FC connector with its threaded nickel - plated brass body provides a vibration - resistant and secure connection. The 2.5 mm zirconia ceramic ferrule ensures precise alignment of the fibers, resulting in low insertion loss. The robust construction of the connector makes it suitable for use in harsh industrial environments, outdoor installations, and areas where the cable may be subject to mechanical stress.
Mechanical Durability with Flexible Jacket Options
The choice of flexible jackets (PVC, LSZH, or OFNP) provides mechanical durability. PVC jackets are cost - effective and suitable for general indoor use. LSZH jackets are ideal for environments where fire - safety is a concern, as they produce less smoke and no halogen - containing toxic gases when burned. OFNP jackets are designed for plenum spaces, where air circulation is high, and fire - retardant properties are crucial.
Engineering Applications FC-FC APC Single mode fiber patch cord
Telecommunications Backbone Networks
In telecommunications backbone networks, the FC - FC APC Simplex/Duplex Single - mode Optical Fiber Patch Cord is used to connect different nodes, such as between central offices, long - haul transmission links, and for inter - connecting large - scale optical networking equipment. The high return loss and low insertion loss of the patch cord ensure reliable long - distance signal transmission over extensive network distances.
Industrial and Outdoor Installations
For industrial applications like factory automation, power plants, and outdoor telecommunication installations, the robust FC connectors and durable outer jackets of the patch cord make it suitable. The threaded connection of the FC connectors can withstand vibrations and mechanical stress, while the choice of jacket materials (especially LSZH or OFNP for outdoor use) provides protection against environmental elements such as moisture, UV radiation, and fire risks.
High - Performance Data Centers
Within high - performance data centers, the FC - FC APC patch cord is used for inter - connecting servers, storage area networks (SANs), and high - speed switches. The low insertion loss and high return loss contribute to maintaining high - speed and stable data transfer, meeting the demanding requirements of data - intensive applications such as big - data analytics, cloud computing, and virtualization
Shipping & Packaging
Product Comparison：
FC - FC APC vs FC - FC UPC
| Feature / Dimension | FC - FC APC Fiber Patch Cable | FC - FC UPC Fiber Patch Cable |
|---|---|---|
| Structure / Form Factor | Both have a similar overall form factor with FC connectors featuring a threaded nickel - plated brass body and a 2.5 mm zirconia ceramic ferrule. However, the APC ferrule has an angled end - face (usually 8°) for reduced back - reflection. | FC connectors with a 2.5 mm zirconia ceramic ferrule. The UPC ferrule has a slightly domed end - face for good optical contact and low back - reflection, but less effective than APC in minimizing back - reflection. |
| Coupling Mechanism | Threaded coupling mechanism for a secure and vibration - resistant connection, which is common to both FC - FC APC and FC - FC UPC. | Same threaded coupling mechanism as FC - FC APC, providing a stable connection under mechanical stress. |
| Typical Applications | Used in applications where minimizing back - reflection is critical, such as long - distance telecommunications, high - performance data centers, and fiber - optic test and measurement equipment. | Commonly used in general - purpose fiber - optic connections, including telecommunications, data centers, and some industrial applications where the extreme reduction of back - reflection is not the top priority. |
| Key Engineering Pros | - Extremely high return loss due to the angled end - face, significantly reducing back - reflection. - Suitable for high - bandwidth and long - distance applications where signal integrity is crucial. - Robust FC connectors for vibration - resistant and secure connections. | - Good mechanical stability due to the threaded connector. - Low insertion loss, ensuring efficient signal transmission. - Widely used and well - understood in the industry, with a large base of compatible equipment. |
| Key Engineering Cons | - Higher manufacturing cost due to the precise angled polishing process. - Slightly more complex alignment during connection compared to UPC, as the angled end - face requires careful mating. - May not be necessary for applications with less stringent back - reflection requirements. | - Lower return loss compared to APC, which may lead to some signal reflection in high - performance applications. - The threaded connection can be time - consuming to connect and disconnect, not ideal for frequent patching. |
| Tolerance to Vibration / Shock | Excellent tolerance to vibration and shock due to the threaded FC connectors. The robust construction can withstand harsh industrial and outdoor environments. | Also has good tolerance to vibration and shock, but the overall performance is similar to FC - FC APC in this regard. |
| Cable Jacket Options | Available with PVC, LSZH, or OFNP jackets, providing options for different environmental requirements, from general indoor use to fire - safety - critical and plenum spaces. | Similar jacket options as FC - FC APC, including PVC, LSZH, and OFNP, to suit various installation environments. |
| Fiber Mode Options | Primarily uses single - mode G652D or G657A fiber, suitable for long - distance and high - performance applications. | Can use single - mode (e.g., OS2) and multimode (e.g., OM3, OM4) fibers, offering more flexibility in terms of fiber mode selection depending on the application's requirements. |
| Cost (Relative) | Relatively higher cost due to the more complex APC polishing process and the precision required for the angled end - face. | Generally has a lower cost compared to FC - FC APC, especially for large - scale deployments, as the UPC polishing process is more common and less expensive. |
| Maintenance & Handling | Cleaning and maintenance require special attention to the angled end - face to avoid damage. The threaded connection needs to be carefully tightened to ensure proper alignment and connection. | Cleaning is relatively straightforward, but care must be taken with the domed UPC end - face. The threaded connection also requires proper tightening to prevent loosening and ensure good optical contact. |
FC-FC APC Single mode fiber patch cord Selection Guide
FC - FC APC and FC - FC UPC fiber patch cables are tailored to different application needs. The decision between them is mainly influenced by factors such as back - reflection requirements, cost, and installation environment.
For applications where minimizing back - reflection is of utmost importance, such as long - distance telecommunications, high - performance data centers, and fiber - optic test and measurement equipment, FC - FC APC is the better choice.
The angled end - face of the APC connector provides an extremely high return loss, which is crucial for maintaining signal integrity over long distances and in high - bandwidth scenarios. For instance, in a long - haul telecommunications backbone network, the high return loss of FC - FC APC helps to prevent signal degradation due to back - reflection. However, the higher cost associated with the complex APC polishing process and the slightly more complex alignment during connection should be considered. Also, for applications where the reduction of back - reflection is not a critical factor, the additional cost may not be justifiable.
For general - purpose fiber - optic connections, including some telecommunications, data centers, and industrial applications where extreme back - reflection reduction is not the top priority, FC - FC UPC is a more suitable option.
It offers good mechanical stability with its threaded connector and low insertion loss, ensuring efficient signal transmission. In a data center where the focus is more on general connectivity and cost - effectiveness rather than ultra - low back - reflection, FC - FC UPC can be a cost - efficient solution. Additionally, the UPC polishing process is more common and less expensive, making it a better choice for large - scale deployments where cost is a significant factor. However, it should be noted that in applications where high - bandwidth and long - distance transmission with minimal back - reflection are required, FC - FC UPC may not perform as well as FC - FC APC.
Parameter - Best Fit
| Parameter | Best Fit |
|---|---|
| High - bandwidth long - distance transmission with low back - reflection | FC - FC APC |
| General - purpose fiber - optic connections with cost - effectiveness | FC - FC UPC |
| High - performance data centers with strict back - reflection requirements | FC - FC APC |
| Fiber - optic test and measurement equipment | FC - FC APC |
| Applications where cost is a major constraint and back - reflection requirements are moderate | FC - FC UPC |
| Environments with potential mechanical stress and vibration (both are suitable, but FC - FC APC has a slight edge in terms of overall robustness for high - performance applications) | FC - FC APC / FC - FC UPC |
| Installations where easy connection and disconnection are not a primary concern (due to the threaded connection of both types) | FC - FC APC / FC - FC UPC |
Mixed deployment guidance:
In cases where existing FC - based equipment with UPC connectors needs to interface with new equipment that requires APC - terminated fibers, special hybrid patch cords can be used. If the deployment involves a combination of high - performance areas (like high - speed data transmission sections) and general - purpose connection areas in a data center, FC - FC APC can be used for the high - performance areas, and FC - FC UPC for the general - purpose areas. In industrial settings, if there are some high - precision measurement devices that demand low back - reflection, FC - FC APC can be used for those connections, while FC - FC UPC can be used for other general - purpose connections within the same facility to balance cost and performance.
Installation Instructions of FC-FC APC Single mode fiber patch cord
Pre - installation
Visually check the patch cord for outer jacket damage and clean, undamaged FC connectors.
Clean the angled FC/APC ferrule end - faces with an isopropyl - alcohol - dipped lint - free swab, following the angle, then dry with a clean swab.
Connection
Align the connector key with the keyway in the adapter or port.
Thread the FC connector gently to avoid cross - threading until it's firmly tightened.
Cabling
Route the cord maintaining a minimum bending radius (about 10x cable diameter).
Secure the cord with cable ties or trays.
Testing
Use an optical power meter to check insertion loss.
Optionally, use an OTDR to detect fiber link issues.
Download YRTFIBER Product Catalog
Factory Real Shot
State-of-the-Art Manufacturing Facilities

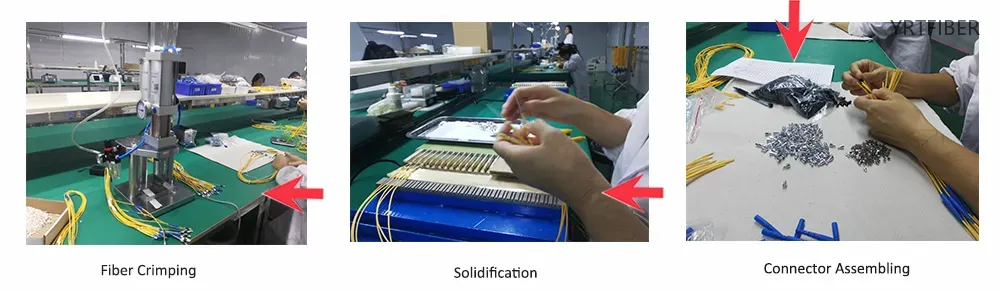

Our 60,000 sqm dust-proof workshop houses over 21+ automated production lines for single-core and MPO patch cords. Equipment includes high-precision fiber cutters (±0.08 mm tolerance), FLC automatic termination machines, and UV curing systems, enabling a daily output of thousands of connectors with consistent quality.
Precision Core Manufacturing Process
The process starts with micro-tolerance cutting (end-face angle ±0.5°) and six-axis fusion splicing (core deviation ≤1 μm). After multilayer jacketing with LSZH, PVC, or OFNP, connectors are polished on automated lines for PC, UPC, or APC finishes, achieving up to 7,000 connectors per 11-hour shift.
Rigorous Quality Assurance & Testing

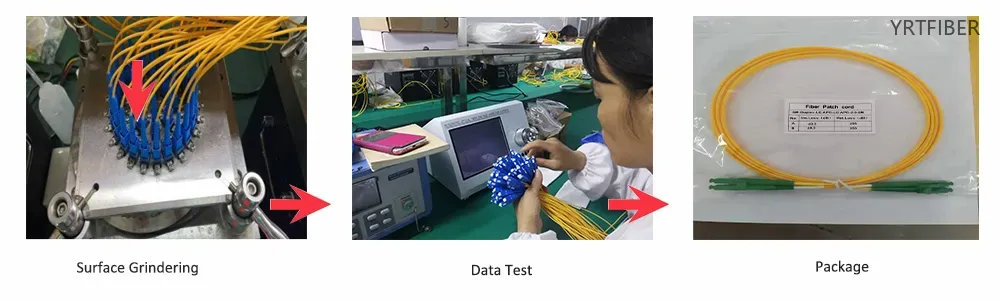

Every patch cord undergoes 100% inspection: interferometric end-face analysis (400x), automatic contamination detection, and insertion/return loss testing via OTDR. Environmental samples also pass temperature, humidity, and pull-force tests per IEC/TIA standards.
Frequently Asked Questions & Quick Inquiry
FC-FC APC Single mode fiber patch cord FAQ
Q3: Can I choose connector polish type?
A3: Yes, FC/UPC and FC/APC options are available.
Q4: Is the patch cord factory-tested?
A4: Yes, each cable is 100% tested for insertion loss and return loss.
Q5: What jacket materials can I choose?
A5: PVC, LSZH, and OFNP are available for different installation environments.
What is the main difference between FC - FC APC and FC - FC UPC in terms of signal performance?
The main difference lies in the return loss. FC - FC APC has a much higher return loss due to its angled end - face, which significantly reduces back - reflection. This makes it more suitable for applications where minimizing signal reflection is crucial, such as long - distance and high - bandwidth transmission. FC - FC UPC has a lower return loss compared to APC, although it still provides good optical performance for general - purpose applications.
Can the FC - FC APC patch cord be used in a multimode network?
Typically, the FC - FC APC patch cord is designed for single - mode applications, using single - mode G652D or G657A fiber. Multimode networks require fibers with different core and cladding dimensions (e.g., 50/125 µm or 62.5/125 µm) and may use different connector polishing techniques optimized for multimode transmission. Using an FC - FC APC patch cord in a multimode network would not be ideal and may result in poor signal performance.
How do I clean the FC - FC APC connectors to maintain good performance?
Use a lint - free cleaning swab dipped in isopropyl alcohol. Gently wipe the angled end - face of the ferrule in a direction following the angle. Be very careful not to damage the angled surface. After wiping, use a clean, dry swab to remove any remaining moisture. Regular cleaning helps to maintain low insertion loss and high return loss.
What is the maximum transmission distance of the FC - FC APC single - mode fiber patch cord?
The maximum transmission distance depends on factors such as the type of fiber (G652D or G657A), the power of the optical source, and the sensitivity of the receiver. In a well - designed system, it can achieve long - distance transmission of up to 40 - 80 kilometers or more at wavelengths like 1310 nm or 1550 nm. However, in practical applications, the actual distance may be limited by other factors in the network infrastructure.
Why is the cost of the FC - FC APC patch cord higher than that of FC - FC UPC?
The cost of the FC - FC APC patch cord is higher mainly because of the more complex APC polishing process. The angled end - face of the ferrule requires precise manufacturing and polishing techniques, which are more costly compared to the UPC polishing used in FC - FC UPC. Additionally, the higher precision required for the angled end - face may lead to higher rejection rates during manufacturing, further increasing the cost.
How do I ensure proper alignment when connecting FC - FC APC connectors?
When connecting FC - FC APC connectors, first, ensure that both the angled end - faces are clean. Align the key on the connector with the keyway in the adapter. Gently insert the connector into the adapter,
