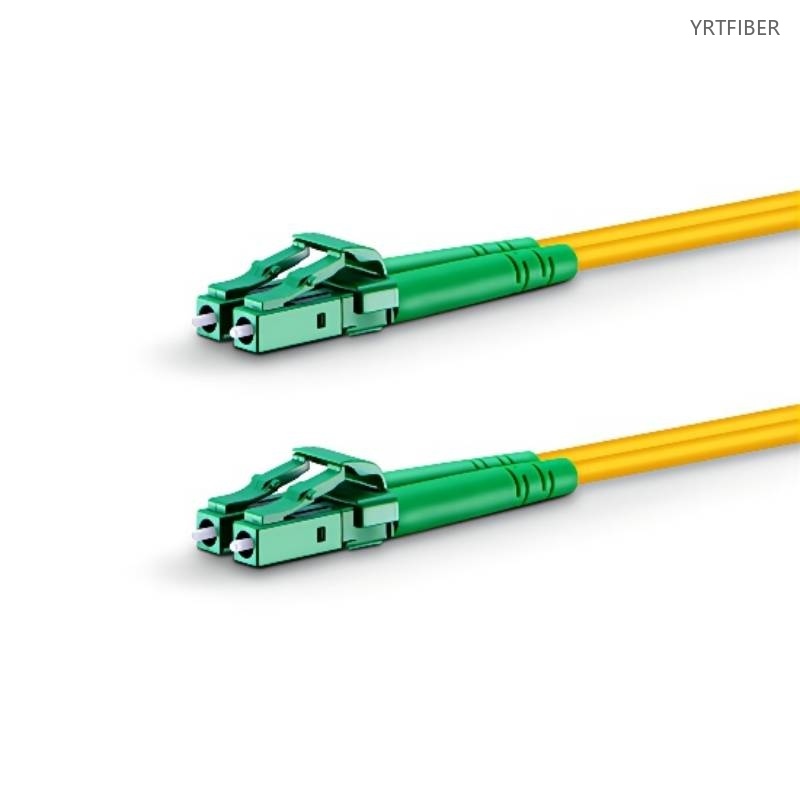

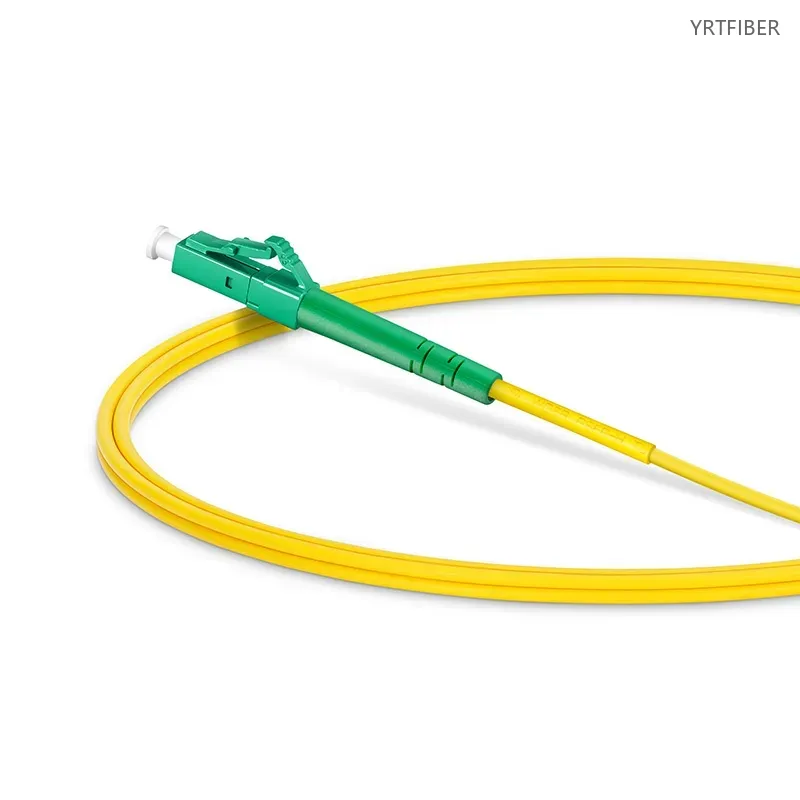

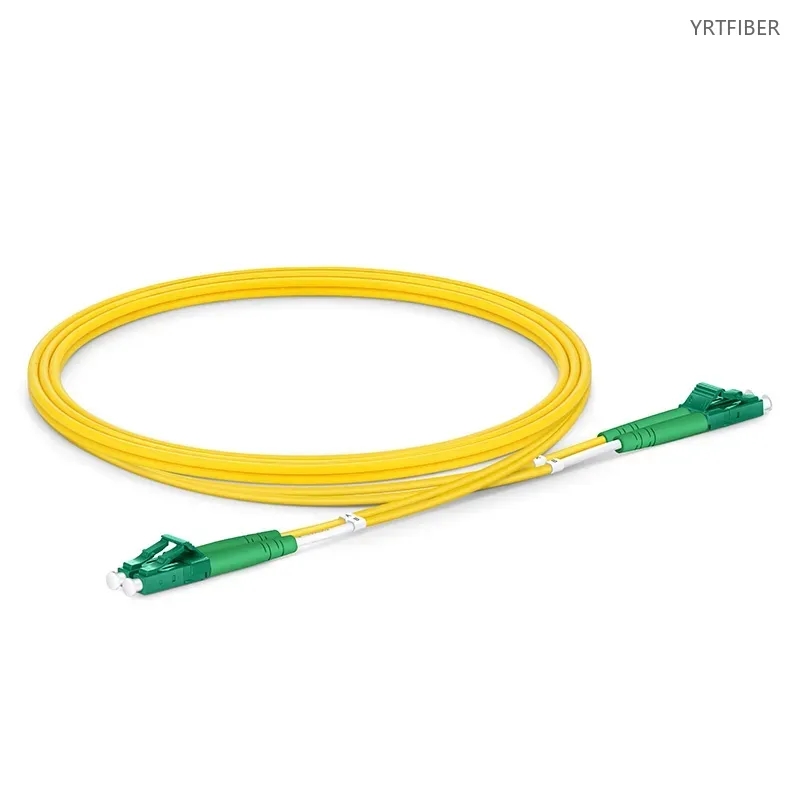

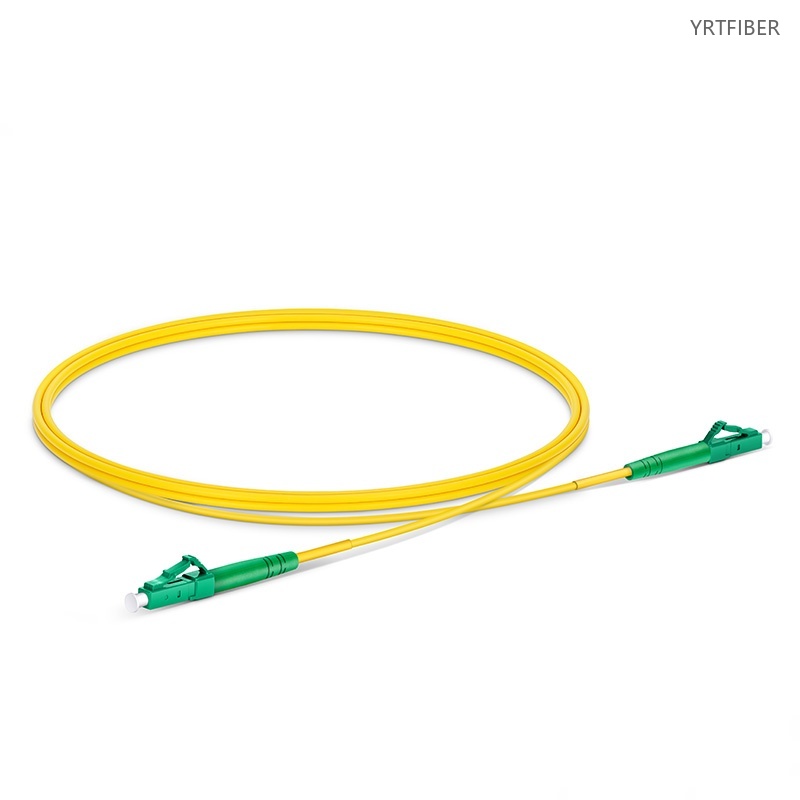

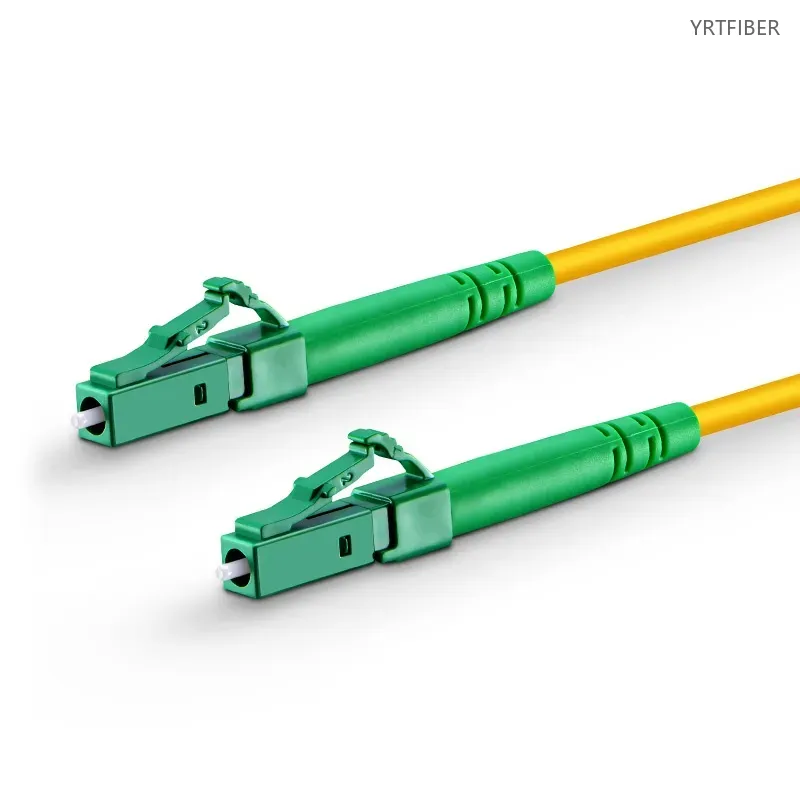

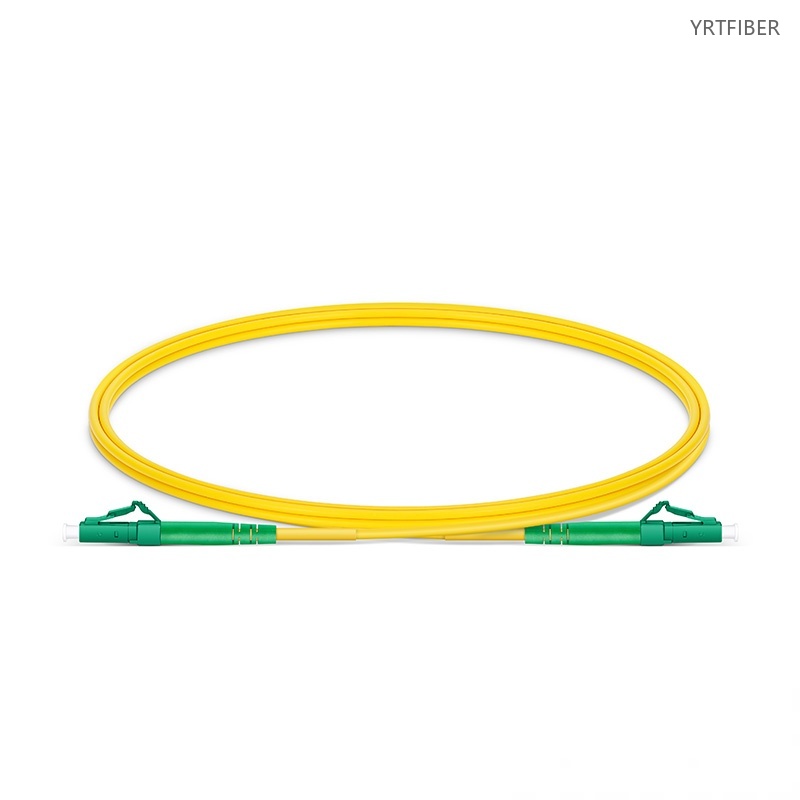

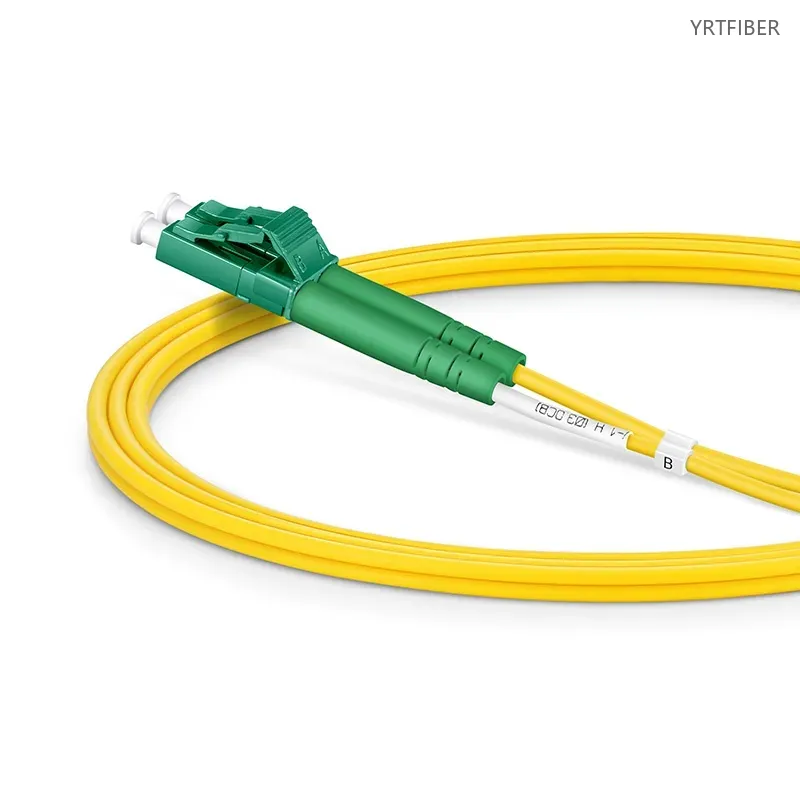

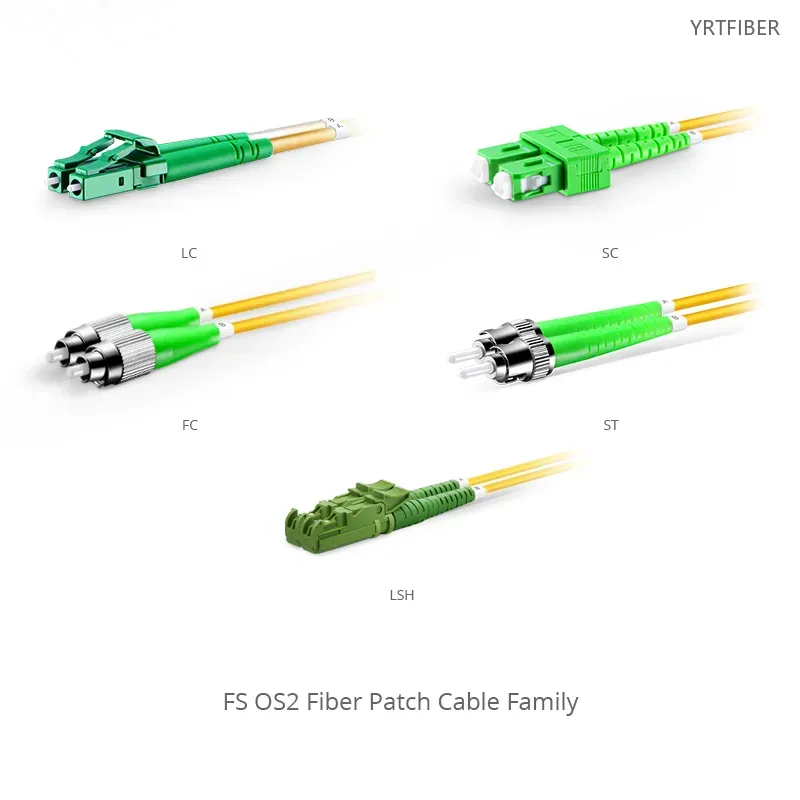

LC-LC APC Simplex/Duplex Single Mode (OS2) Fiber Patch Cord – G.657.A1, 2.0mm, Riser (OFNR)
LC - LC connectors offer compact and stable connections for LC - interface optical devices.
Available in both single - mode (G652D/G657A) and multimode (OM1/OM2/OM3/OM4) versions to meet diverse transmission requirements.
Exhibits low insertion loss, high return loss, ensuring excellent optical performance.
Features jacket materials like PVC, LSZH, or OFNP, which are flame - retardant and durable.
Provides custom lengths and connector polish types (UPC/APC) for flexibility.

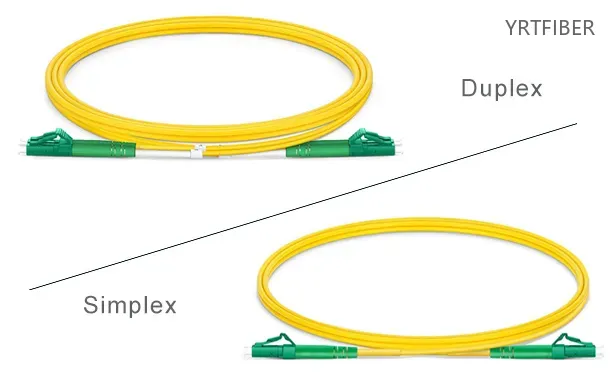

What is an LC - LC APC Simplex/Duplex Single Mode (OS2) Fiber Optic Patch Cord?
An LC - LC APC Simplex/Duplex Single Mode (OS2) Fiber Optic Patch Cord, also known as a fiber jumper cable, is designed to link optical devices with LC interfaces. It comes in single - mode (G652D/G657A) and multimode (OM1/OM2/OM3/OM4) variants, offers UPC or APC polish options for connectors, and features low insertion loss, high return loss, along with customizable lengths and durable jacket materials.
LC-LC APC Single Mode (OS2) Specification parameters
- Specification parameters
- OPTICAL CHARACTERISTICS
LC APC Simplex
| Connector A | LC APC Duplex | Connector B | LC APC Duplex |
| Fiber Count | 1 Fibers | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Polarity | Compliant | Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 2.0mm | Flame Rating | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength | 60/100N (Long/Short Term) |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
| Attenuation at 1310nm | 0.4dB/km | Attenuation at 1550nm | 0.3dB/km |
| Operating Temperature | -10 to 70℃ (14 to 158℉) | Storage Temperature | -20 to 70℃ (-4 to 158℉) |
LC APC Duplex
| Connector A | LC APC Duplex | Connector B | LC APC Duplex |
| Fiber Count | 2 Fibers | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Polarity | A (Tx) to B (Rx) | Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 2.0mm | Flame Rating | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength | 90/150N (Long/Short Term) |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
| Attenuation at 1310nm | 0.4dB/km | Attenuation at 1550nm | 0.3dB/km |
| Operating Temperature | -10 to 70℃ (14 to 158℉) | Storage Temperature | -20 to 70℃ (-4 to 158℉) |
Product Structure & Composition
Fiber Core and Cladding: Depending on the fiber type, for single - mode (G652D with 9/125 µm or G657A bend - insensitive fiber) the core is optimized for long - distance, low - loss transmission. Multimode fibers (OM1, OM2 with 62.5/125 µm or OM3, OM4 with 50/125 µm) are suitable for shorter - distance, higher - bandwidth applications. The cladding surrounds the core to contain the optical signal.

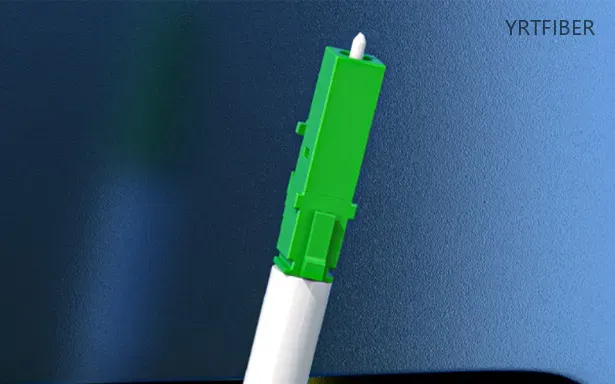

LC Connector: The LC connector has a small form - factor plastic body with a 1.25mm zirconia ceramic ferrule. It uses a push - pull latching mechanism for quick and secure connection. In the case of APC polish, the end - face of the ferrule is angled (usually 8°) to reduce back - reflection.
Outer Jacket: Made of PVC, LSZH, or OFNP materials. PVC is a common general - purpose jacket, LSZH is low - smoke and zero - halogen for fire - safety - conscious environments, and OFNP is plenum - rated for use in spaces where air circulation is high. The jacket provides mechanical protection to the inner fiber.
Benefits of LC-LC APC Single Mode (OS2)
Compact and Stable LC - LC Connectors
The LC - LC connectors' small form - factor design allows for high - density installations, especially in data centers and patch panels. The push - pull latching mechanism ensures a stable connection, with low insertion loss and high return loss. The 1.25mm zirconia ceramic ferrule provides precise fiber alignment.
Versatile Fiber Type Support
With support for both single - mode (G652D, G657A) and multimode (OM1 - OM4) fibers, the patch cord can be used in a wide range of applications. Single - mode fibers are ideal for long - distance, high - bandwidth transmission, while multimode fibers are suitable for shorter - distance, high - speed local - area networks.
Excellent Optical Performance
Featuring low insertion loss and high return loss, the LC - LC APC patch cord ensures reliable optical signal transmission. The APC polish on the connectors, especially in single - mode applications, significantly reduces back - reflection, enhancing signal integrity over long distances.
Durable and Flame - retardant Jacket Options
The choice of jacket materials (PVC, LSZH, OFNP) provides durability and safety. PVC is cost - effective for general use, LSZH is suitable for environments where fire - safety is crucial, and OFNP is designed for plenum spaces, ensuring the patch cord can withstand various environmental conditions.
Engineering Applications LC-LC APC Single Mode (OS2)
Fiber - to - the - Home (FTTH) and LAN/WAN Fiber Connections
In FTTH applications, the LC - LC APC patch cord provides a reliable connection between the optical network unit (ONU) and the optical distribution network (ODN). In LAN/WAN setups, it can be used to connect network devices, offering high - speed and stable data transmission over fiber.
Optical Distribution Frames (ODF) and Patch Panels
Within ODFs and patch panels, the compact size of the LC - LC connectors allows for high - density cabling. The low insertion loss and high return loss ensure efficient signal distribution and connection management in these optical infrastructure components.
Data Centers and High - density Communication Environments
Data centers require high - density, reliable connections. The LC - LC APC patch cord meets these needs with its small form - factor connectors and excellent optical performance. It can be used to connect servers, switches, and storage devices, enabling high - speed data transfer within the data center.
Fiber Equipment and Testing Scenarios
When connecting fiber - optic equipment such as optical time - domain reflectometers (OTDRs), optical spectrum analyzers (OSAs), or other testing devices, the LC - LC APC patch cord's low insertion loss and high return loss ensure accurate testing results and reliable signal transfer between the equipment and the device under test.
Shipping & Packaging
Product Comparison：
LC - LC APC vs LC - LC UPC
| Feature / Dimension | LC - LC APC Fiber Patch Cable | LC - LC UPC Fiber Patch Cable |
|---|---|---|
| Structure / Form Factor | Both have LC - LC connectors with a small form - factor plastic body and 1.25mm zirconia ceramic ferrule. The APC ferrule has an angled end - face (usually 8°) for reduced back - reflection. | LC - LC connectors with 1.25mm zirconia ceramic ferrule. The UPC ferrule has a slightly domed end - face for good optical contact and low back - reflection, but less effective than APC in minimizing back - reflection. |
| Coupling Mechanism | Push - pull latching mechanism for quick and easy connection and disconnection, common to both LC - LC APC and LC - LC UPC. | Same push - pull latching mechanism as LC - LC APC, enabling fast patching in high - density environments. |
| Typical Applications | Used in applications where minimizing back - reflection is critical, such as long - distance telecommunications, high - performance data centers, and fiber - optic test and measurement equipment. | Commonly used in general - purpose fiber - optic connections, including data centers, enterprise LANs, and some short - distance applications where extreme reduction of back - reflection is not the top priority. |
| Key Engineering Pros | - Extremely high return loss due to the angled end - face, significantly reducing back - reflection. - Suitable for high - bandwidth and long - distance applications where signal integrity is crucial. - Compact size for high - density installations. | - Good mechanical stability due to the push - pull latching mechanism. - Low insertion loss, ensuring efficient signal transmission. - Widely used and well - understood in the industry, with a large base of compatible equipment. |
| Key Engineering Cons | - Higher manufacturing cost due to the precise angled polishing process. - Slightly more complex alignment during connection compared to UPC, as the angled end - face requires careful mating. - May not be necessary for applications with less stringent back - reflection requirements. | - Lower return loss compared to APC, which may lead to some signal reflection in high - performance applications. - The push - pull mechanism may be less secure in high - vibration environments if not properly installed. |
| Tolerance to Vibration / Shock | Good for normal indoor environments, but the angled end - face may be more sensitive to misalignment under high - vibration conditions if not properly secured. | Good for normal indoor environments, but the push - pull latching mechanism may loosen under sustained high - vibration or shock. |
| Cable Jacket Options | Available with PVC, LSZH, or OFNP jackets, providing options for different environmental requirements, from general indoor use to fire - safety - critical and plenum spaces. | Similar jacket options as LC - LC APC, including PVC, LSZH, and OFNP, to suit various installation environments. |
| Fiber Mode Options | Supports both single - mode (G652D, G657A) and multimode (OM1 - OM4) fibers, suitable for a wide range of applications. | Also supports single - mode and multimode fibers, offering flexibility in fiber mode selection depending on the application's requirements. |
| Cost (Relative) | Relatively higher cost due to the more complex APC polishing process and the precision required for the angled end - face. | Generally has a lower cost compared to LC - LC APC, especially for large - scale deployments, as the UPC polishing process is more common and less expensive. |
| Maintenance & Handling | Cleaning and maintenance require special attention to the angled end - face to avoid damage. The push - pull latching mechanism needs to be checked for proper locking. | Cleaning is relatively straightforward, but care must be taken with the domed UPC end - face. The push - pull latching mechanism also requires proper locking to ensure good optical contact. |
LC-LC APC Single Mode (OS2) Selection Guide
LC - LC APC and LC - LC UPC fiber patch cords are designed to meet different application requirements. The choice between them is predominantly determined by factors such as optical performance needs, cost considerations, installation environment conditions, and maintenance & handling requirements.
For applications where minimizing back - reflection is crucial, like long - distance telecommunications, high - performance data centers, and fiber - optic test and measurement equipment, LC - LC APC is the more appropriate choice.
The angled end - face of the APC connector results in an extremely high return loss. This is vital for preserving signal integrity over long distances and in high - bandwidth scenarios. For example, in a long - distance telecom link, the high return loss of LC - LC APC effectively reduces signal degradation caused by back - reflection. However, it's important to take into account the higher cost associated with the intricate APC polishing process. Also, the alignment during connection is slightly more complex due to the angled end - face. Moreover, for applications where back - reflection reduction is not a critical factor, the extra cost of LC - LC APC may not be justifiable.
For general - purpose fiber - optic connections, including certain telecommunications, data centers, and industrial applications where extreme back - reflection reduction is not the top priority, LC - LC UPC is a more suitable option.
It provides good mechanical stability with its push - pull latching mechanism and offers low insertion loss, ensuring efficient signal transmission. In a data center focused more on general connectivity and cost - effectiveness rather than ultra - low back - reflection, LC - LC UPC can be a cost - efficient solution. Additionally, the UPC polishing process is more common and less expensive, making it a better choice for large - scale deployments where cost is a significant factor. Nevertheless, it should be noted that in applications demanding high - bandwidth and long - distance transmission with minimal back - reflection, LC - LC UPC may not perform as well as LC - LC APC.
Parameter - Best Fit
| Parameter | Best Fit |
|---|---|
| High - bandwidth long - distance transmission with low back - reflection | LC - LC APC |
| General - purpose fiber - optic connections with cost - effectiveness | LC - LC UPC |
| High - performance data centers with strict back - reflection requirements | LC - LC APC |
| Fiber - optic test and measurement equipment | LC - LC APC |
| Applications where cost is a major constraint and back - reflection requirements are moderate | LC - LC UPC |
| High - vibration environments (both need proper securing, but APC's angled end - face may be more sensitive to misalignment) | LC - LC APC / LC - LC UPC |
| Installations in fire - safety - critical areas (both should choose appropriate jacket materials like LSZH or OFNP) | LC - LC APC / LC - LC UPC |
| Applications with frequent connection and disconnection (UPC is relatively easier to handle in terms of connector maintenance) | LC - LC UPC |
Mixed deployment guidance:
When existing LC - based equipment with UPC connectors needs to interface with new equipment that requires APC - terminated fibers, special hybrid patch cords can be utilized. In a data center with a mix of high - performance areas (such as high - speed data transmission sections) and general - purpose connection areas, LC - LC APC can be employed for the high - performance areas, while LC - LC UPC can be used for the general - purpose areas. In industrial settings, if there are high - precision measurement devices that demand low back - reflection, LC - LC APC can be used for those connections, and LC - LC UPC can be used for other general - purpose connections within the same facility to balance cost and performance.
Installation Instructions of LC-LC APC Single Mode (OS2)
Before installation, visually inspect the LC - LC APC Simplex/Duplex Single Mode (OS2) Fiber Optic Patch Cord. Check the outer jacket for any signs of damage, such as cuts, abrasions, or bulges. Examine the LC connectors to ensure the push - pull latching mechanism is in good working condition and that the ferrules are clean and free from scratches.
Clean the LC - LC APC connectors using a lint - free cleaning swab dipped in isopropyl alcohol. Gently wipe the angled end - face of the ferrule in a direction following the angle. Be careful not to apply excessive pressure or scratch the polished surface. After wiping, use a clean, dry swab to remove any remaining moisture.
Align the key on the LC connector with the keyway in the adapter or the receiving port of the optical device. Gently insert the connector into the adapter or port until you hear a click, indicating
Download YRTFIBER Product Catalog
Factory Real Shot
State-of-the-Art Manufacturing Facilities
Our 60.000 m²; dust-free workshop is equipped with over 21 automated production lines for both single-core and MPO patch cords. Key machinery includes high-precision fiber cutters (tolerance: ±0.08 mm), FLC automatic termination machines, and UV curing systems. This setup enables a daily output of thousands of connectors while maintaining consistent quality.
Precision Core Manufacturing Process
The process begins with micro-tolerance cutting (end-face angle tolerance:±0.5°) and six-axis fusion splicing (core deviation ≤1 μm). After multilayer jacketing with LSZH, PVC, or OFNP materials, connectors undergo automated polishing for PC, UPC, or APC finishes. The line achieves up to 7.000 connectors per 11-hour shift.
Rigorous Quality Assurance & Testing
Every patch cord is subject to 100% inspection, including interferometric end-face analysis (400x magnification), automated contamination detection, and insertion/return loss testing via OTDR. Additionally, environmental samples must pass temperature, humidity, and pull-force tests in compliance with IEC/TIA standards.
Frequently Asked Questions & Quick Inquiry
LC-LC APC Single Mode (OS2) FAQ
Q1: What types of LC-LC patch cords are available?
A1: Both singlemode (G652D/G657A) and multimode (OM1~OM4) versions.
Q2: What is the connector polish type?
A2: UPC and APC options are available for LC connectors.
Q3: Can I customize the length?
A3: Yes, we offer patch cords in custom lengths per your request.
Q4: What jacket types can I choose?
A4: PVC, LSZH, and OFNP flame-retardant options are available.
Q5: Where can LC-LC patch cords be used?
A5: They are ideal for FTTH, data centers, ODFs, and LAN/WAN networks.
What is the main difference between LC - LC APC and LC - LC UPC in terms of optical performance?
The main difference lies in the return loss. LC - LC APC has a much higher return loss due to its angled end - face, which significantly reduces back - reflection. This makes it more suitable for applications where minimizing signal reflection is crucial. LC - LC UPC has a lower return loss compared to APC, although it still provides good optical performance for general - purpose applications.
How do I clean the LC - LC APC connectors to maintain good performance?
Use a lint - free cleaning swab dipped in isopropyl alcohol. Gently wipe the angled end - face of the ferrule in a direction following the angle. Be very careful not to damage the angled surface. After wiping, use a clean, dry swab to remove any remaining moisture. Regular cleaning helps to maintain low insertion loss and high return loss.
What is the maximum transmission distance of the LC - LC APC single - mode fiber patch cord?
The maximum transmission distance depends on factors such as the type of single - mode fiber (G652D or G657A), the power of the optical source, and the sensitivity of the receiver. In a well - designed system, it can achieve long - distance transmission of up to 40 - 80 kilometers or more at wavelengths like 1310 nm or 1550 nm.
Why is the cost of the LC - LC APC patch cord higher than that of LC - LC UPC?
The cost of the LC - LC APC patch cord is higher mainly because of the more complex APC polishing process. The angled end - face of the ferrule requires precise manufacturing and polishing techniques, which are more costly compared to the UPC polishing used in LC - LC UPC. Additionally, the higher precision required for the angled end - face may lead to higher rejection rates during manufacturing, further increasing the cost.
How do I ensure proper alignment when connecting LC - LC APC connectors?
When connecting LC - LC APC connectors, first, ensure that both the angled end - faces are clean. Align the key on the connector with the keyway in the adapter. Gently insert the connector into the adapter, making sure to seat it properly. The push - pull latching mechanism should engage smoothly, and you may need to visually inspect or use testing equipment to confirm proper alignment and connection.
