ADSS-D Fiber Optic Cable | Double Jacket | 2–288 Cores | G.652D/G.655 | Outdoor Aerial Self-Supporting
- Product ModelADSS-D
- Fiber Core Count2-288 Cores
- Fiber TypeG652D/G655
- Outer JacketPE/AT
what is an adss-d Fiber optic cable

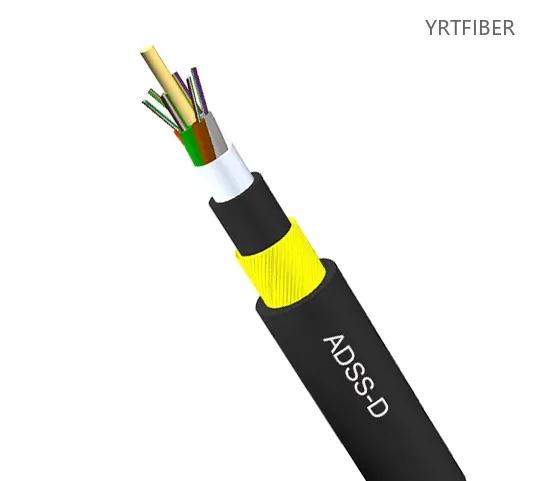

ADSS-D fiber optic cable is a type of all-dielectric self-supporting cable constructed with loose tube stranded fibers (250μm) placed into high-modulus plastic tubes filled with water-resistant compound. The tubes and fillers are stranded around a non-metallic FRP strength member to form a compact circular core, which is then filled with filling compound, covered with a PE inner sheath, followed by a stranded layer of aramid yarns as the primary strength member, and finally completed with a PE or AT (anti-tracking) outer sheath. This design features high tensile strength, no electromagnetic interference, high voltage resistance (AT sheath up to 500kV), and maintenance-free characteristics, making it suitable for communication in high-voltage power grids and complex terrains such as mountains and river crossings.
ADSS-D Fiber Optic Cable Specification parameters
- Specification parameters
- OPTICAL CHARACTERISTICS
Technical parameters
| Out Diameter (mm) | Reference weight (kg/km) | Daily max working tension (KN) | Max working tension (KN) | Break Strength (KN) | Strength Member CSA (mm²) | Modulus of Elasticity kN/mm² | Heat Expansion Coefficient (x10⁻⁸/K) | Suitable Span (m) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PE sheath | AT sheath | A | B | C | D | |||||||
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 13.0 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 13.3 | 137 | 148 | 3 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 | 420 | 280 | 400 | 280 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
| 14.9 | — | — | — | — | — | — | — | — | 570 | 380 | 550 | 380 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18 | 0.3 | 670 | 460 | 650 | 460 |
| 15.5 | — | — | — | — | — | — | — | — | 750 | 530 | 750 | 510 |
| 15.6 | 194 | 208 | 10.5 | 28 | 70 | 33 | 19.6 | 0.1 | 800 | 560 | 800 | 560 |
| 16.3 | — | — | — | — | — | — | — | — | 880 | 650 | 880 | 650 |
| 16.8 | — | — | — | — | — | — | — | — | 1000 | 750 | 1000 | 760 |
| 17.2 | — | — | — | — | — | — | — | — | 1100 | 800 | 1100 | 830 |
| 17.9 | — | — | — | — | — | — | — | — | 1180 | 880 | 1180 | 900 |
Zone A: 25 m/s wind, 0 mm ice · Zone B: 35 m/s, 0 mm · Zone C: 10 m/s, 5 mm ice, 2.5 N/m · Zone D: 10 m/s, 10 mm ice, 4.4 N/m.
Span values assume no height difference and 1% installation sag. Fibre count 2–288, grouped in loose tubes of up to 12 (288 cores = 24 tubes); the OD follows the span and load zone, so one diameter step covers a range of core counts and the tube/core assignment is confirmed on the order drawing. “—” = mechanical value supplied with the order drawing.
Double jacket: PE inner sheath + aramid layer + outer PE or AT sheath — the two weight columns are the two outer-sheath options.
Optical properties
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
|---|---|---|---|---|
| attenuation (+20℃) | ≤3.0dB/km @850nm | ≤3.0dB/km @850nm | ||
| ≤1.0dB/km @1300nm | ≤1.0dB/km @1300nm | |||
| ≤0.36dB/km @1310nm | -- | |||
| ≤0.22dB/km @1550nm | ≤0.23dB/km @1550nm | |||
| bandwidth (Class A) | ≥500MHZ·km @850 | ≥500MHZ·km @850 | ||
| ≥1000MHZ·km @1300 | ≥600MHZ·km @1300 | |||
| Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| cutoff wavelength | ≤1260nm | ≤1480nm |

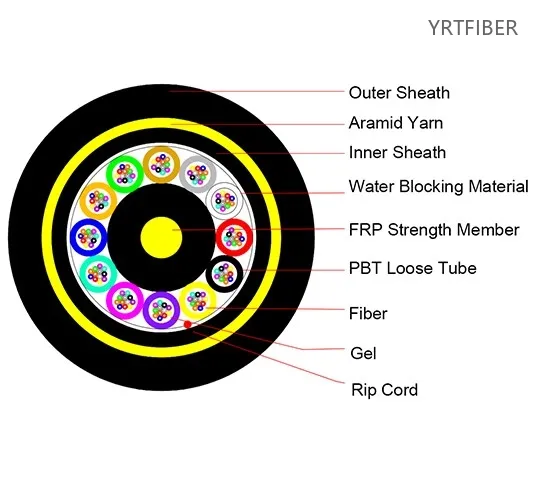

Product Structure & Composition
Outer Sheath - PE or AT (anti-tracking) material, providing environmental and electrical protection.
Aramid Yarn - Non-metallic strength member providing high tensile strength.
Inner Sheath - PE layer over the cable core.
Water Blocking Material - Prevents water ingress along the cable.
FRP Strength Member - Non-metallic central reinforcement (Fiber Reinforced Plastic).
PBT Loose Tube - High modulus polybutylene terephthalate tube containing optical fibers.
Fiber - μm optical fibers.
Gel - Water-resistant filling compound inside the loose tube.
Rip Cord - Enables easy sheath removal for termination.

Benefits of ADSS-D Fiber Optic Cable
1. All-Dielectric and Electrical Safety
Using a non-metallic, fully insulated structure, it has no electromagnetic interference and can be co-installed on the same tower with high-voltage lines; the AT sheath withstands up to 500kV, providing lightning protection and surface potential control capabilities.

2. High Strength and Environmental Adaptability
Aramid reinforcement supports long spans sized by cable OD and load zone (see the span table), resistant to low temperatures and wind-induced vibrations, with an elongation rate of 0.6% under icing conditions, suitable for harsh climates.

3. Multi-Layer Protective Structure
Includes an inner sheath, aramid armor, and a tracking-resistant outer sheath (AT/PE optional), offering mechanical protection and resistance to electrical corrosion.

4. Convenient Construction and Maintenance-Free
No power outage is required, can be constructed independently using tower resources; UV resistant, impact resistant (operates without fault after 10 meters sand gun test), and long-lasting. PE sheath is suitable for below 110kV, AT sheath for above, suitable for complex terrains such as mountains and river crossings.

Engineering Applications ADSS-D Fiber Optic Cable
Product Comparison:
ADSS-S (Single Sheath ADSS) VS ADSS-DS (Double Sheath ADSS) VS Figure-8 (Figure-8 Self-Supporting) VS OPGW (Optical Ground Wire)
| Feature / Dimension | ADSS-S | ADSS-DS | Figure-8 (Self-Supporting) | OPGW |
|---|---|---|---|---|
| Laying Distance (Max. span) | 160–420 m (Ø12.5–13.8 mm); 100–280 m in zone D | 480–1180 m (Ø14.5–17.9 mm); 320–900 m in zone D | 100-500 m (but >300 m may cause excessive sag) | Up to 1000 m+ (very long crossing spans) |
| Structural Features | Single PE/AT (Anti-Tracking) outer sheath; aramid yarn as primary strength member; loose tube gel-filled/filled-free design; all-dielectric (non-metallic). | Double sheath (inner + outer PE/AT); double layer of aramid yarn for enhanced tensile strength; all-dielectric construction with additional mechanical protection. | “8” shaped cross-section with integrated steel messenger wire; metallic core; optical fibers housed separately from supporting steel strand. | Steel/aluminum tube containing optical fibers stranded with Al-clad steel and/or aluminum alloy wires; dual-function: grounding + communication. |
| Typical Applications | Medium voltage (≤110 kV) power lines; short to medium spans (sized by cable OD and load zone); urban/rural distribution networks; FTTH backbone in mild environments. | High voltage (≥110 kV) power lines; long spans (sized by cable OD and load zone); harsh weather regions (rivers, valleys, heavy wind/ice zones); highways crossing. | Short span aerial deployment (<500 m); telecom/general purpose; rural broadband; budget‑sensitive projects with mild climate; no high‑voltage interference. | Extra-high voltage (220 kV+) transmission lines; new construction or ground wire replacement; backbone power grid; areas requiring high lightning/shield performance. |
| Pros in Engineering | Lightweight, low wind/ice load; easy one-step installation; no grounding required; for medium voltage; corrosion immunity; AT jacket available for tracking resistance. | Mechanical strength for long spans; enhanced UV/weather resistance; dual sheath for extra durability; minimal electrical tracking risk; dielectric protection. | Simple and fast installation (no separate messenger); low initial cost; widely available hardware; integrated steel strand eliminates extra supporting wire. | Dual functionality (grounding + communication); high tensile strength (up to 150 kN+); lightning/short-circuit withstand; long span capability (>500 m). |
| Cons in Engineering | Limited span (<150 m); PE jacket unsuitable for HV lines (>110 kV); requires careful sag/tension design; AT jacket adds cost for higher voltage use. | Heavier and larger diameter; higher upfront cost; more complex installation planning; requires precise hardware matching; higher material consumption. | Cannot be used near HV lines due to metallic messenger (EMI/electrical hazards); steel strand prone to corrosion; heavier weight per km (~300 kg/km); shorter lifespan (~15 yrs). | Metallic structure requires proper grounding; higher initial investment; complex installation (must match line design); difficult for retrofitting existing lines without ground wire replacement. |
| Cost (Relative) | Lowest among ADSS family. e.g., 24‑core for 100m span ~$0.25‑0.35/m; AT jacket adds 15‑25%. | Higher than ADSS-S. Additional aramid + outer jacket increase material cost; long‑span design (500m) 24‑core up to $0.90‑1.20/m. | Low initial cost (about 0.8‑1.2 USD/m for common spec), but higher long‑term TCO (maintenance and earlier replacement). | Highest. For 24‑core, market price typically $0.70‑1.40/m; specialized engineering increases overall project budget significantly. |
| Maintenance Difficulty | Low. No corrosion/rust; periodic visual inspection; regular cleaning needed in polluted areas; quick damage repair; minimal specialized tools. | Low to Medium. Extra sheath reduces environmental wear; internal inspection harder; more aramid means more complex re‑tensioning; otherwise similar to ADSS-S. | Medium. Steel strand needs rust protection and grounding checks; higher repair complexity; potential messenger separation issues; sag monitoring required. | Medium. Requires periodic ground resistance/continuity testing; harder to access fiber core; specialized joint hardware and trained personnel needed. |
| Span Capability (typical) | 160–420 m (Ø12.5–13.8 mm); 100–280 m in zone D | 480–1180 m (Ø14.5–17.9 mm); 320–900 m in zone D | 100 m-500 m, but >300 m may cause excessive sag; integrated steel strand. | Up to 1000 m+; for long crossing spans (rivers, canyons). |
| Voltage Compatibility | ≤110 kV (PE jacket); AT jacket extends to higher voltages (≥110 kV) but single sheath limits extreme HV use. | ≥110 kV, suitable for up to 220 kV+; widely used in EHV lines; double jacket reduces electrical tracking. | Not recommended near power lines (>1 kV); metallic components cause safety hazards and EMI. | ≥220 kV; standard for UHV/EHV; integrated as shield wire. |
| Lifespan / Durability | 25+ years (AT jacket extends life in HV environment). | 30+ years; double sheath adds abrasion/UV protection. | ~15 years (steel corrosion and fatigue). | 30+ years (metallic parts require corrosion care). |
| Environmental Suitability | Coastal, mild, industrial (with AT jacket); standard UV protection; good for medium wind/ice. | Extreme weather, high UV, heavy ice/wind zones, high salinity; for challenging terrains. | Mild climates, low corrosion risk; not suitable for coastal or high‑humidity areas without coating. | Any terrain, but needs proper grounding; lightning/short-circuit performance. |
ADSS-D Fiber Optic Cable Selection Guide
1 : When ADSS-D is the right cable:
ADSS-D is a double-jacket all-dielectric self-supporting cable: inner PE sheath, an aramid yarn layer and an outer PE or AT sheath. Nothing metallic inside means it can be strung on the same towers as live high-voltage lines without a shutdown, and the double jacket carries the mechanical load across spans from 160 to 1180 m depending on cable diameter and ice/wind zone. Typical routes are utility aerial networks, river and road crossings and long rural spans where no messenger wire is available.
2 : ADSS-D against ADSS-S, OPGW and metal-armoured cable:
ADSS-S is the single-jacket version: lighter and cheaper, and the right answer for shorter spans. ADSS-D doubles the jacket and the aramid content to reach the longer spans and the heavier ice zones. OPGW replaces the earth wire and adds fibre at the same time, which only makes sense on a new line or a line being restrung. GYTS and GYTA have steel armour and must not be installed on a live high-voltage structure.
3 : Span first, then sheath, then fibre count:
Span comes first because it fixes the mechanical design: read the suitable-span columns in the parameter table by zone (A 25 m/s no ice, B 35 m/s no ice, C 5 mm ice, D 10 mm ice) and pick the diameter step that covers the route. The electrical environment comes second: with space potential up to about 12 kV a PE sheath is normally sufficient, above that an AT sheath is specified, and the AT version is rated to withstand 500 kV. Fibre count comes third: 2 to 288 cores in loose tubes of up to 12, and the diameter step already chosen decides how many tubes fit, so the tube and core assignment is confirmed on the order drawing.
4 : What is checked before delivery:
Each reel is measured for attenuation at 1310 and 1550 nm, for per-fibre continuity and for length. The aramid layer, the inner and outer sheath, the rated daily working tension and the break strength are checked against the ordered span and zone row, and the ice-load elongation is verified against the 0.6% design value. Dead-end and suspension hardware is quoted separately and must match the cable diameter of the ordered row.
Further reading: Picking ADSS cable? Start with span, not fibre count
ADSS-D Installation - Quick Steps
Method - Use stationary reel with brake + pulling rope/swivel/grip. Avoid cable twist.
Bending - Min radius: 30×D during pull, 20×D in service.
Tension - Max pull ≤20% of RBS (rated breaking strength).
Tools - Insulated ropes/tools near live lines. Seal cable ends if paused.
Final - Adjust sag per tables, install hardware (dead-end/suspension), test with OTDR.

Download YRTFIBER Product Catalog
Factory Real Shot
Ordering & Delivery
Minimum order, lead time and the documents that ship with every order.
Ordering
- Minimum order1 km (1 drum)
- Lead time≤ 300 km: about 15 working days. Over 300 km: confirmed with your order.
- PaymentT/T 30% deposit, balance against B/L copy. L/C at sight accepted.
- InspectionFactory test report plus spot check on arrival. Third-party witness adds 7 working days.
How to order
- 1Send your specification and quantity.
- 2Quotation and datasheet within 24 hours.
- 3Confirm the PI, pay the deposit, production starts.
Delivery & loading
Container loading (reference)
| Fiber count | Drum weight | Drums per 40HQ | km per 40HQ |
|---|---|---|---|
| 144F | 780 kg | 20–23 | 80–92 km |
| 288F | 1,350–1,550 kg | 16–20 | 64–80 km |
Based on 4,000 m drums of outdoor loose-tube cable. Final loading plan is confirmed before shipment.
Fiber and cable diameters vary by model, so the finished drum size — and the number of drums one 40HQ can hold — differ accordingly. The figures above are typical values close to actual loading; for the exact figure please consult our sales manager.
- Port of shipmentQingdao · Guangzhou · Shenzhen
- PackingWooden or steel drum, 2–5 km per drum, length marking every 1 m.
Documents with shipment
- Mill test certificate
- OTDR trace for every drum (bi-directional, 1310/1550 nm)
- Drum no. / length / attenuation table
- Packing list with gross and net weight
- RoHS declaration and CE DoC
- Lifting instructions
Packing & marking for this model


Packaging Requirements:
1:All cables shall be wound on treated wooden spools that are not returnable
2:Cable ends must be firmly secured to the spool and protected with waterproof shrink caps
3:Each spool must include: Protective plastic wrapping layer, Reinforcing wooden slats for stability,Minimum 1m of free cable end for testing purposes, Standard spool length: 3000 m (±2% tolerance allowed)
Cable Identification:
The outer jacket must display:
1、Unique sequential numbering every 1m (±1% variance permitted)
2、 Additional repeating markings at 1m intervals showing: Product code and fiber count, Manufacturer identification,Production date (month/year),Total cable length
Standard Packaging Dimensions:
| Length | Container | Size (L×W×H) | Net Mass | Total Mass |
|---|---|---|---|---|
| 2 km | Wood spool | 90×75×90 cm | 156 kg | 220 kg |
| 3 km | Wood spool | 100×68×100 cm | 240 kg | 280 kg |
| 4 km | Wood spool | 109×75×109 cm | 300 kg | 368 kg |
| 5 km | Wood spool | 129×72×129 cm | 400 kg | 480 kg |
Technical Reference:
1、 Cable diameter and weight vary with fiber count and cable construction — see the specification table above.
2、Maximum span depends on cable type and installation design — ask us to confirm for your route.
3、Contact sales team for complete technical specifications
Spool Marking Standards:
Permanent markings (minimum 25-30mm height) must appear on both sides of each spool:
1、 Company name and trademark
2、Contained cable length
3、Cable specifications (type/fiber count)
4、Winding orientation
5、Weight measurements (gross/net)
Note: All wooden packaging materials must undergo proper fumigation treatment prior to use.
Frequently Asked Questions & Quick Inquiry
ADSS-D Fiber Optic Cable FAQ
1. What is an ADSS double jacket fiber optic cable?
An ADSS double jacket cable is an aerial fiber optic cable designed with two protective outer sheaths for added strength, UV resistance,. It is self-supporting and requires no metallic elements, making it ideal for installation near power lines.
2. What fiber types and core counts does it support?
This cable supports 2 to 208cores, using G.652D or G.655 single-mode fibers. It's suitable for both backbone and access fiber networks.
3. What are the advantages of the double jacket structure?
The double jacket enhances the cable’s resistance to mechanical stress, UV radiation, and moisture ingress—especially important in long-span aerial applications and extreme weather conditions.
4. What is the typical span distance for this cable?
It depends on cable OD and the ice/wind zone. Our standard table runs from 160 m (Ø12.5 mm, Zone A) to 1180 m (Ø17.9 mm, Zone A); Zone D caps at 100–900 m. Send your span, ice load, wind speed and sag limit for a matched design.
5. Where is this cable commonly used?
Common applications include:
Overhead fiber deployment along power lines
Long-distance telecom backbones
FTTx networks in remote areas
Electric utility communication systems
Send Your Inquiry
Fill out the form below and we'll get back to you within 24 hours.
