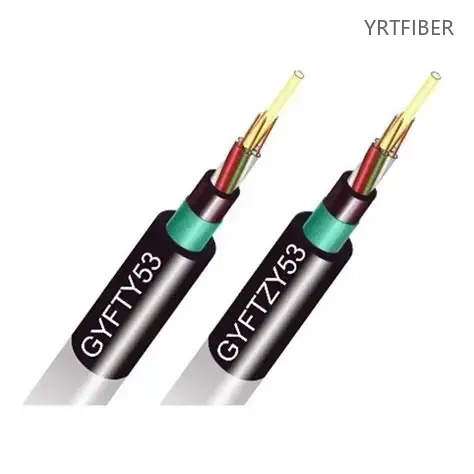

Why GYFTY53 Outdoor Armored Fiber Optic Cable Is Ideal for Direct Burial, Duct, and Aerial Installation

In outdoor fiber optic network construction, cable selection is not only about transmission performance. It is also about long-term durability, moisture protection, crush resistance, and the ability to withstand harsh installation and operating environments. For projects such as backbone communication lines, campus networks, industrial communication systems, and CATV infrastructure, choosing the right outdoor optical cable can significantly reduce maintenance costs and improve network stability.

GYFTY53 outdoor armored fiber optic cable is designed for demanding outdoor applications where waterproof performance, mechanical strength, and structural reliability are essential. According to the product page, this cable is suitable for direct burial, duct, and aerial installation, supports 2 to 144 fiber cores, and can be used with both single-mode and multi-mode fibers. It is positioned as a high-performance solution for long-distance communication, LANs, and CATV systems.

Why armored fiber optic cable is important for outdoor use

Outdoor cable systems face many risks that indoor cables do not. Underground moisture, soil pressure, temperature changes, construction tension, and accidental external impact can all affect cable performance over time. If a cable does not have a strong protective structure, it may suffer from water ingress, sheath damage, higher attenuation, or even communication failure.

That is why armored outdoor fiber optic cables are widely used in infrastructure projects. The GYFTY53 cable is built with a structure intended to improve water resistance and mechanical protection. The product page describes a design that includes water-resistant tube filling compound, a water-blocking layer, cable core filling, corrugated steel tape armor, and a PE outer sheath, all of which contribute to better waterproof and pressure-resistant performance in outdoor environments.

Structural advantages of GYFTY53 outdoor armored fiber optic cable

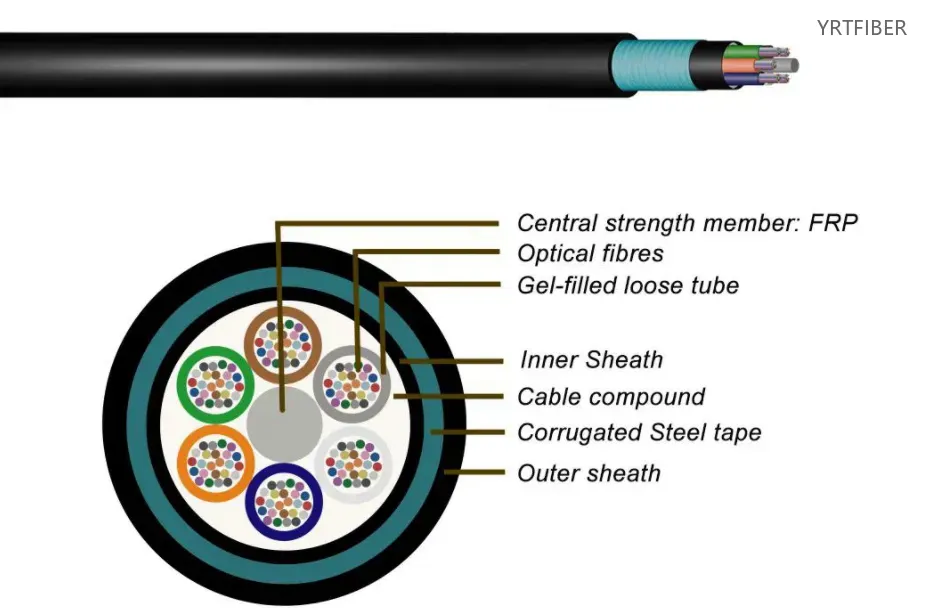

One of the main strengths of GYFTY53 is its well-balanced cable structure. The fibers are placed inside loose tubes made of high modulus plastic, and those tubes are filled with water-resistant compound. This kind of loose tube design helps protect the optical fibers from environmental stress and supports more stable performance over time. The product page also notes that the loose tube offers good hydrolysis resistance, which is especially important in wet outdoor conditions.

The cable also uses FRP as the central strength member. FRP, or Fiber Reinforced Plastic, provides stable support to the cable core while maintaining a non-metallic structure at the center. This improves the cable’s mechanical stability and helps it perform well during installation and long-term use.

Another key feature is the protective outer structure. After the stranded cable core is formed, it is covered with an inner PE Sheath and additional water-blocking materials to prevent water ingress. Then, a layer of corrugated steel tape armor is applied, followed by a PE outer sheath. This combination enhances crush resistance, moisture protection, and overall durability, making the cable a reliable option for direct buried and other demanding outdoor installation conditions.

Main performance features of GYFTY53 cable

The product page highlights several important performance characteristics of this cable. These include good mechanical and temperature performance, hydrolysis-resistant loose tubes, strong fiber protection through special filling compounds, as well as crush resistance and flexibility. It also lists multiple measures used to improve cable watertightness, including the FRP strength member, loose tube filling compound, full cable core filling, moisture-proof enhancement, and water-blocking materials.

These features make GYFTY53 especially suitable for customers who need a cable that can perform well in humid, high-pressure, or variable-temperature environments. For outdoor communication projects, this kind of multi-layer protection can improve both installation reliability and service life.

Suitable applications for GYFTY53 outdoor fiber cable

A major advantage of GYFTY53 is its flexibility across different installation methods. The manufacturer states that it can be used in duct, aerial, and direct buried applications, which gives contractors and network planners more freedom when designing different types of communication routes.

For direct burial projects, cable protection is especially critical because the cable must withstand long-term underground pressure and moisture. With its armored structure and water-blocking design, GYFTY53 is a strong choice for direct buried communication lines in municipal networks, industrial parks, power utility routes, and rural broadband infrastructure.

For duct installation, the cable offers a dependable solution for urban communication networks, intelligent building systems, and campus infrastructure where the cable may still experience pulling force and environmental stress during installation.

For aerial installation, GYFTY53 can also be used in outdoor distribution routes where flexibility and structural reliability are required. This makes it practical for projects that combine different installation methods across the same network.

Fiber count options and engineering flexibility

Different communication projects require different fiber capacities. Some access networks only need a small number of fibers, while larger transmission networks or integrated infrastructure systems may require higher fiber counts for current use and future expansion.

GYFTY53 is available in a wide range of specifications, from 2 cores up to 144 cores, making it suitable for both small and large-scale network construction. The technical parameter table on the product page also shows detailed data for cable diameter, cable weight, tensile strength, crush strength, and bending radius across different fiber count configurations. This helps buyers and engineers select the right model based on project conditions and expected performance requirements.

Standards and quality considerations

When selecting outdoor optical cable for engineering, export, or bidding purposes, compliance with recognized standards is also important. The GYFTY53 product page states that this cable complies with YD/T 901-2009 and IEC 60794-1, which can provide buyers with additional confidence in product design and quality consistency.

In practical procurement, customers should consider several factors before choosing a specific specification: the installation method, required fiber count, environmental conditions, and mechanical performance expectations. For projects involving high humidity, underground pressure, or variable weather, a cable like GYFTY53 with strong waterproofing and mechanical protection can be a more dependable long-term solution.

For outdoor communication projects, choosing a cable with strong waterproof performance, crush resistance, mechanical stability, and installation adaptability is essential. GYFTY53 outdoor armored fiber optic cable offers a practical solution through its loose tube structure, FRP central strength member, water-blocking design, corrugated steel tape armor, and PE sheath protection. With support for direct burial, duct, and aerial applications, as well as 2–144 fiber cores, it is a reliable option for many types of outdoor fiber optic network deployment.

We can manufacture and customize GYFTY53 cable for your project

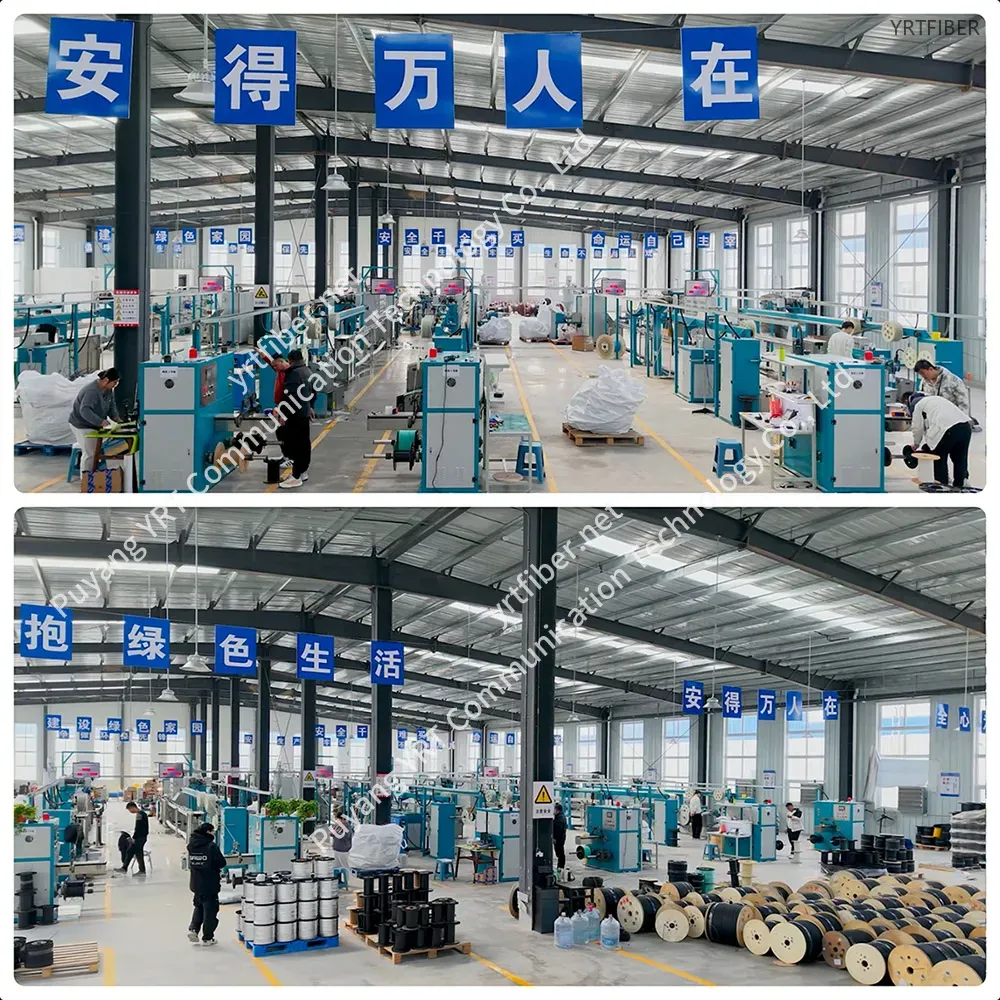

As a professional fiber optic cable manufacturer, YRTFIBER can produce and customize GYFTY53 outdoor Armored Fiber Optic Cable based on different project requirements. According to the company information shown on the product page, the manufacturer has 21 production lines, modern dust-free workshops, processing equipment, and a complete production workflow covering raw material sourcing, manufacturing, quality testing, packaging, and export.

We can support customization based on your required fiber count, cable structure, packaging length, marking, and project application needs. Whether your project requires direct buried optical cable for long-distance communication lines, duct cable for urban infrastructure, or outdoor armor cable for harsh environments, we can provide production and customization support to match your specifications. For OEM, bulk orders, or technical consultation, you are welcome to contact us for a tailored solution.
