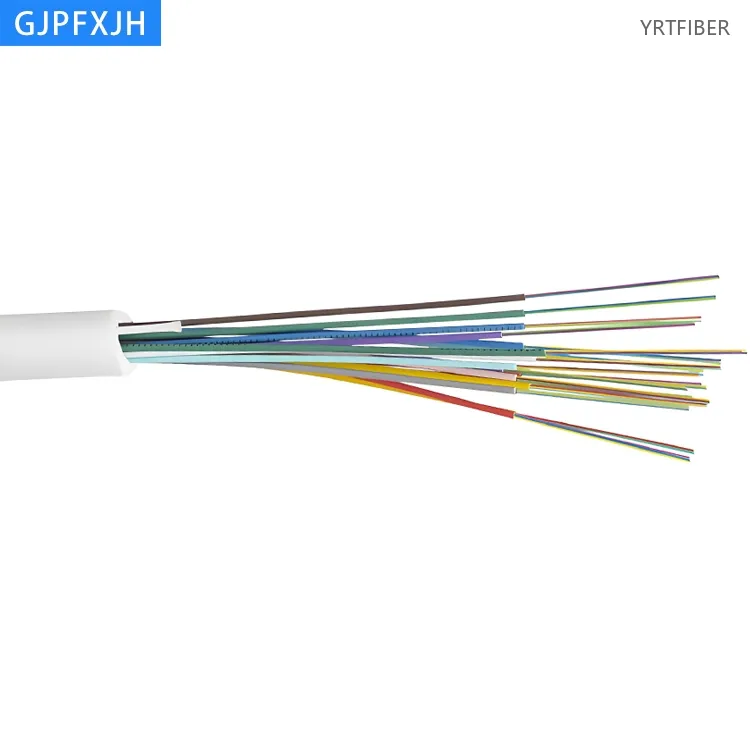

GJPFXJH Flame-Retardant Indoor Riser Fiber Optic Cable – Tight-Buffered, LSZH Sheath

Building vertical and horizontal cabling between GJPFXJH, GJFJH and GJFJBV:

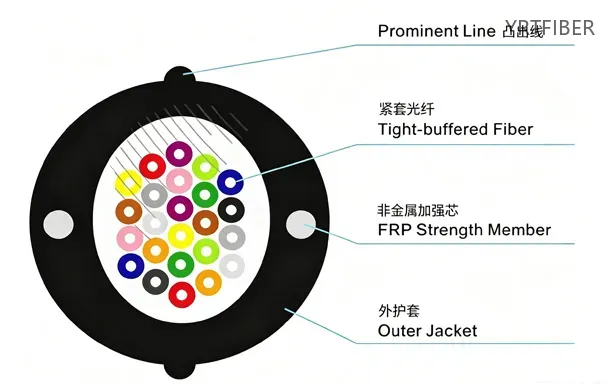

For building backbone cabling (riser and horizontal runs) where space is limited, safety is critical, and ease of field termination matters, GJPFXJH is recommended. Its special cross‑section with a marked opening direction allows quick access to individual 900μm tight‑buffered fibres, and the all‑dry design contains no messy gel, simplifying both installation and maintenance. The two parallel FRP strength members provide mechanical robustness for vertical riser installations, and LSZH sheathing ensures flame‑retardancy in densely occupied buildings. Typical applications include telecommunications and mobile‑communications building backbones, campus networks, and pre‑connection projects where only a subset of fibres need immediate termination on specific floors.

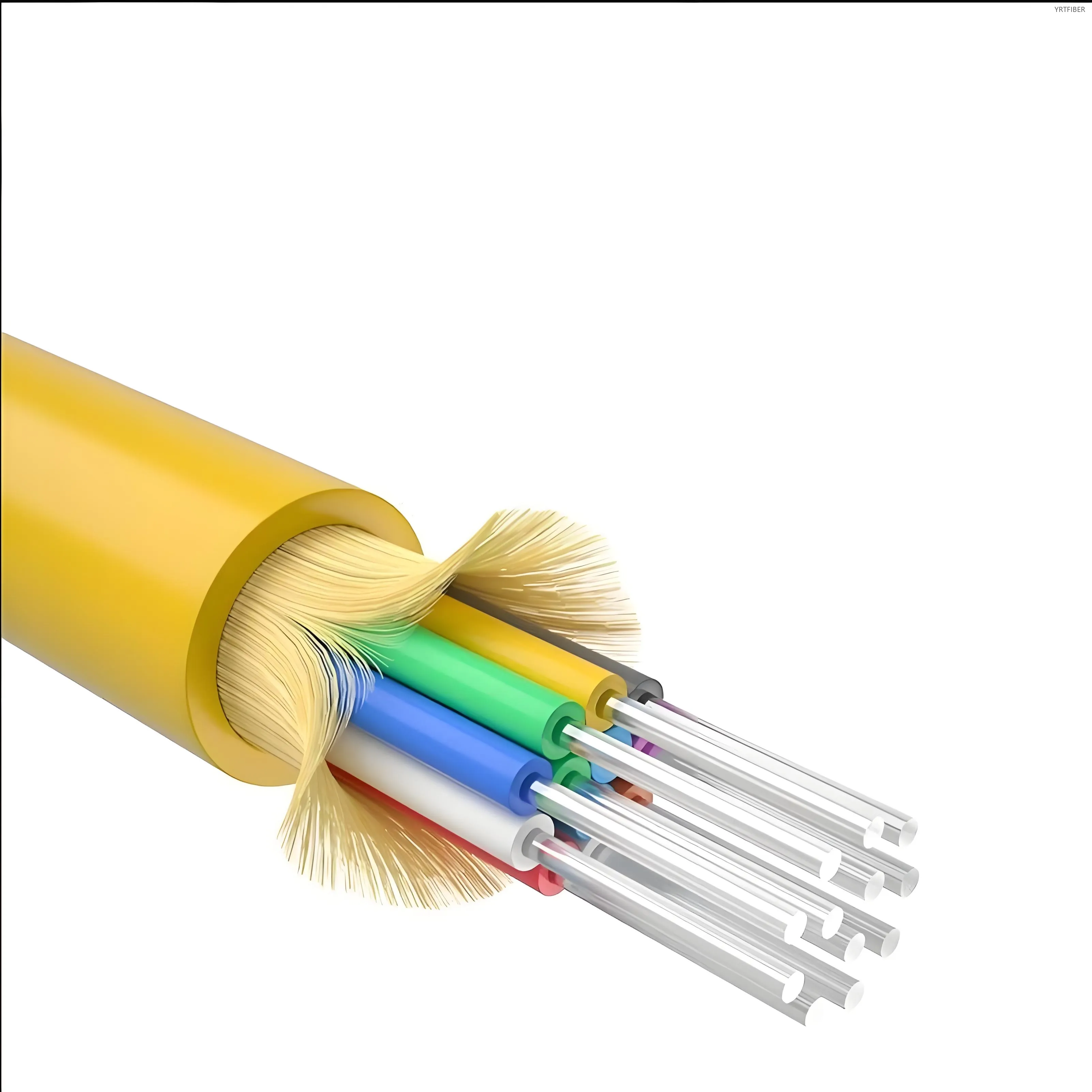

For general indoor distribution cabling in equipment rooms, patching areas, and entrance facilities that require versatility across a wide fibre count range (2–144 cores), GJFJH is a solid choice. Aramid yarn strength members give the cable high tensile strength and good bending performance, while the optional LSZH sheath provides flame‑retardancy comparable to GJPFXJH. However, GJFJH lacks the same easy‑access extraction channel, making mid‑span fibre branching more labour‑intensive. Choose GJFJH‑LSZH for fire‑sensitive riser environments where cost is a secondary concern.

For patch cords, pigtails, and short jumpers between communication equipment where only two fibres are required, GJFJBV is the most economical and flexible solution. Its flat duplex configuration is purpose‑built for interconnection applications, offering excellent strippability and compact arrangement. However, it is not suitable for backbone cabling, multi‑core distribution, or routing that requires multiple bends in conduits due to its larger bend radius requirements (60/30 mm compared to 20D/10D for GJPFXJH and GJFJH). Use GJFJBV only for low‑fibre‑count, short‑distance connectivity within racks and patching fields.

Fire‑retardancy and safety considerations:

Choose LSZH‑sheathed cables (GJPFXJH, GJFJH‑LSZH) for buildings with strict fire safety codes, plenum and riser spaces, or where smoke hazards are a concern. LSZH sheathing emits minimal smoke and no halogen gases, minimising harm to personnel and equipment in the event of a fire.

Choose PVC‑sheathed cables (GJFJH‑PVC, GJFJBV) for general indoor areas with moderate fire regulations (e.g., under‑floor, office LANs, residential buildings) where cost is a priority. PVC sheathing is flame‑retardant but releases dense smoke and halogen gases when burned – not suitable for high‑occupancy or confined spaces.

UV exposure and mixed indoor/outdoor deployments:

For applications that transition from indoor risers to outdoor routing (e.g., building‑to‑building links), GJPFXJH offers a UV‑resistant LSZH variant, providing flame‑retardancy and long‑term solar resistance. Standard GJFJH LSZH and PVC variants are not rated for continuous outdoor UV exposure without additional jacketing or conduit protection.

Core count and deployment strategy:

When installing pre‑connection or mid‑span access cabling where individual floors may require fibre termination without cutting the whole cable, GJPFXJH is the preferred choice. Its design allows clean extraction of specific fibre cores without disrupting the rest of the line, significantly saving construction time and reducing waste. GJFJH is better suited for scenarios requiring entire cable termination or patching at both ends, while GJFJBV is best for direct device‑to‑device connections in crowded equipment racks.
