GYXTC8S Self-Supporting Figure 8 Aerial Fiber Optic Cable – G.652D/G.657
24-core G652D/G657 fibers for high bandwidth
Self-supporting figure-8 structure with steel reinforcement
Aerial installation, suitable for outdoor use
UV-resistant, waterproof, and durable
Low attenuation and superior bending performance
what is GYXTC8S Outdoor armoured optical fibre cable
The GYXTC8S aerial outdoor armoured optical fibre cable is a self‑supporting Figure‑8 style cable designed for long‑distance, high‑performance communication in outdoor environments. It integrates a steel messenger wire that allows the cable to be directly suspended between poles without needing additional support hardware. Built with G652D or G657 optical fibres, it offers low attenuation, strong bending resistance, and stable transmission for telecom and broadband networks. Its armoured structure provides protection against UV exposure, moisture, wind, and mechanical stress, making it highly reliable for aerial installations in harsh weather conditions. This cable is widely used in telecommunications, FTTH deployment, and outdoor fiber infrastructure where durability and long‑term stability are essential.
GYXTC8S Aerial armoured optical fibre cable Specification parameters
- Specification parameters
- OPTICAL CHARACTERISTICS
| G.652 | G.657 | ||
| Attenuation | @1310nm | ≤0.45 dB/km | ≤0.45 dB/km |
| @1550nm | ≤0.30 dB/km | ≤0.30dB/km | |
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |
| Storage/Operating temperature | -20℃ ~+60℃ | ||
| Model | Connection Structure | Material Shape | Allowable Lateral Pressure |
|---|---|---|---|
| Model: | GYXTC8S | Figure 8 | >1000(N/100mm) |
| Connection Structure: | N/M | ||
| Material Shape: | Figure 8 | ||
| Allowable Lateral Pressure: | >1000(N/100mm) | ||
| Allowable Tensile Strength: | 1000N<10000N | ||
| Core: | Multicore | ||
| Certification: | RoHS, CE, ISO9001 | ||
| Brand: | OEM | ||
| Sheath Material: | PE | ||
| Structure: | Central Loose Tube | ||
| Sheath Color: | Black | ||
| Applications: | Aerial Access Cable, FTTH | ||
| Fiber Counts: | 2-24 Core | ||
| Fiber Type: | SM, MM Customizable | ||
| Armor: | Corrugated Steel Tape | ||
| Water-Blocking Material: | Cable Filling Compound | ||
| Transport Package: | Wooden Drum / Plywood Drum | ||
| Specification: | Customized | ||
| Trademark: | yrtfiber | ||
| Origin: | China | ||
| HS Code: | 85447000 | ||
| Production Capacity: | 35000km/Year |

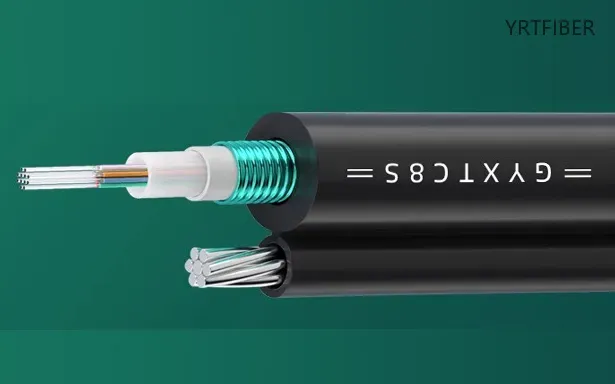

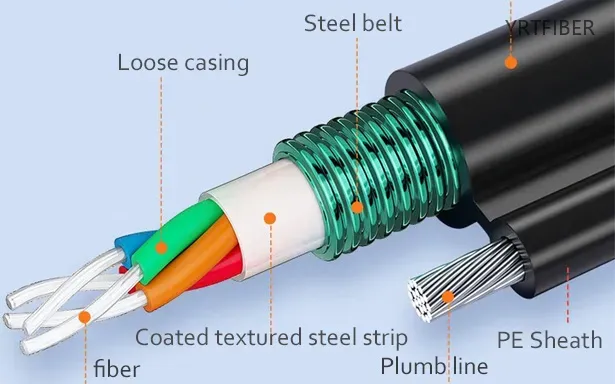

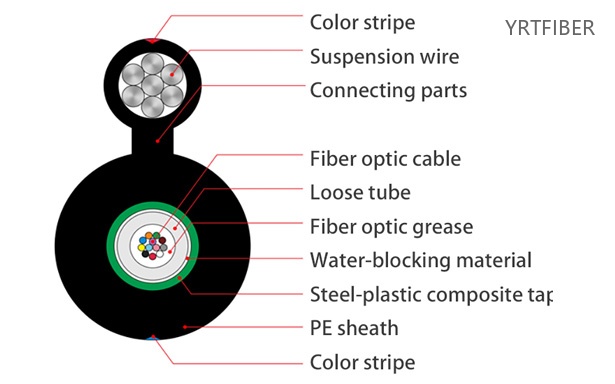

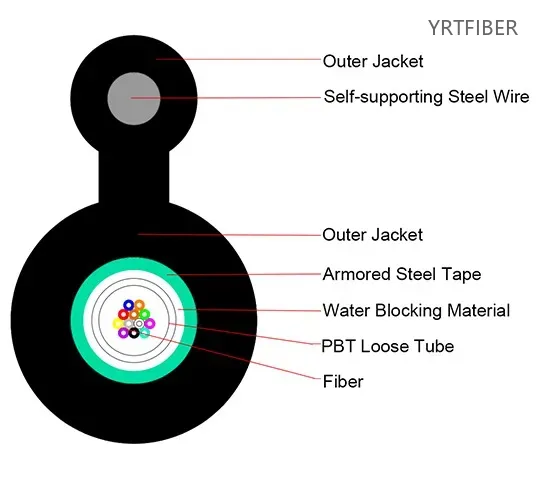

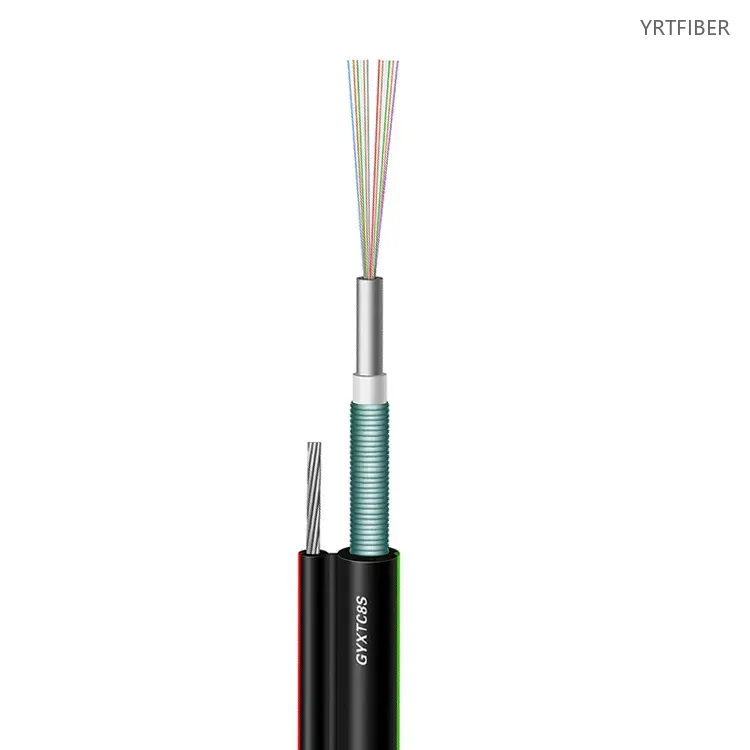

Product Structure & Composition
GYXTC8S Structure Overview – Central loose‑tube fiber unit + steel messenger in Figure‑8 self‑supporting aerial design.
Optical fibers – G652D/G657. low‑loss transmission.

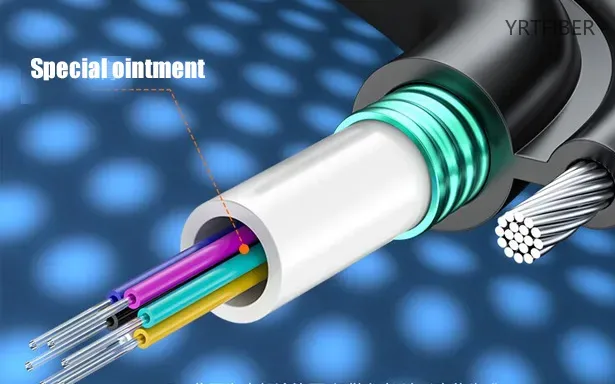

Loose tube – High‑strength, water‑resistant, filled with fiber grease.
Water‑blocking – Swellable yarn/tape preventing longitudinal water ingress.
Steel‑plastic tape – Armoring for moisture and mechanical protection.
PE sheath – UV‑resistant, weatherproof for outdoor aerial use.
Messenger wire – Provides tensile strength for direct pole suspension.
Connecting web – Plastic link forming the Figure‑8 shape.
Color stripe – For identification and alignment during installation.
Benefits of GYXTC8S Aerial armoured optical fibre cable
Reliable Performance in Aerial Applications
The combination of armored protection, stable fiber performance, and weather‑resistant materials makes GYXTC8S ideal for outdoor aerial deployment.
Its self‑supporting figure‑8 structure with a steel messenger wire provides strong tensile strength, making it suitable for long‑span pole‑to‑pole installations.
This robust construction ensures long‑term reliability for telecommunications, broadband networks, and aerial fiber infrastructure.
High‑Bandwidth Optical Performance
The GYXTC8S cable uses 24‑core G652D/G657 fibers to deliver high bandwidth, low attenuation, and excellent bending performance, ensuring stable and efficient aerial data transmission.
Waterproof and moisture-proof
Designed for harsh outdoor environments, the cable features a UV‑resistant and waterproof PE sheath that protects against sunlight, moisture, and mechanical stress.
It maintains consistent transmission quality even under wind load, temperature changes, and long‑distance suspension conditions.
Engineering Applications GYXTC8S Aerial armoured optical fibre cable

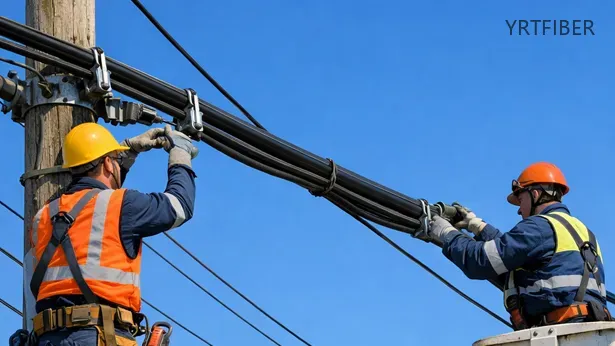

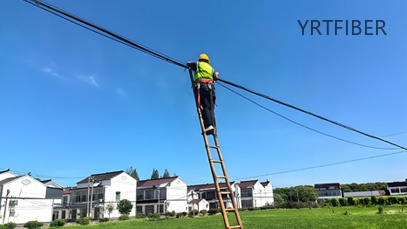

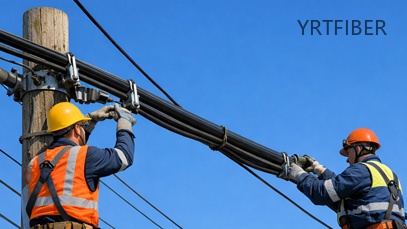

Aerial Installation (Pole-to-Pole)
GYXTC8S is widely used for aerial deployment thanks to its self‑supporting figure‑8 structure with a steel messenger wire, allowing the cable to be directly suspended between poles without additional hardware.
It provides excellent tensile strength, weather resistance, and long‑distance stability, making it ideal for telecom and broadband aerial networks.

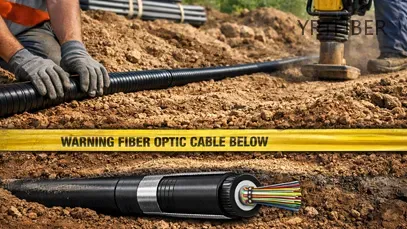

Direct Buried Installation
The armored structure and moisture‑blocking materials of GYXTC8S make it suitable for shallow or protected direct‑burial applications where moderate mechanical protection is required.
Its PE sheath and steel‑plastic composite tape help resist soil pressure, moisture, and environmental stress during long‑term underground operation.

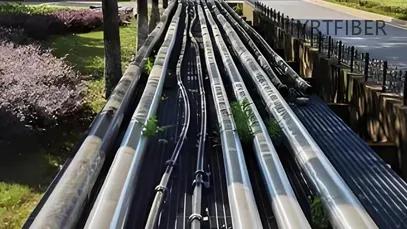

Duct and Pipeline Installation
GYXTC8S can be installed in underground ducts or conduits, providing a safe and efficient way to deploy fiber in urban or industrial environments.
The cable’s smooth sheath and compact design allow easy pulling, blowing, or laying inside pipelines over long distances.
Rural & Industrial Outdoor Networks
Its UV‑resistant, waterproof, and durable construction makes GYXTC8S suitable for outdoor communication lines in rural areas, industrial parks, power facilities, and transportation corridors.
The cable maintains stable performance under temperature changes, wind load, and long‑term environmental exposure.

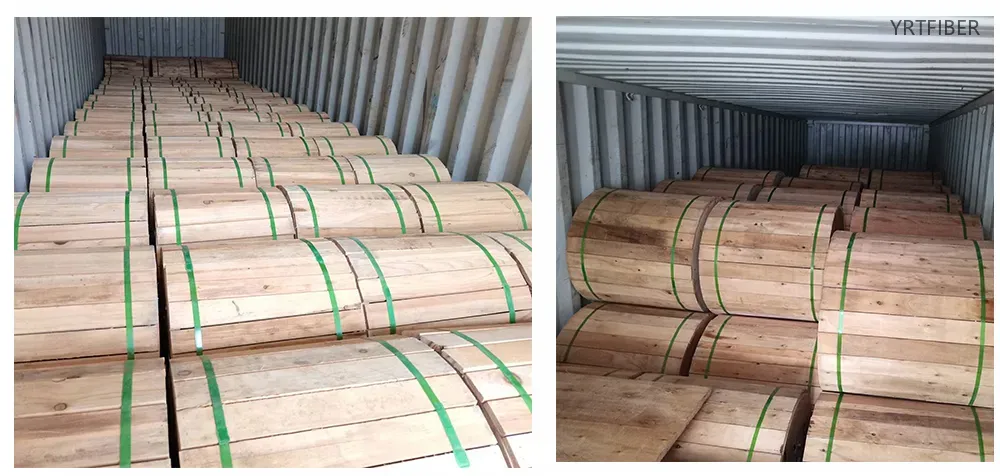

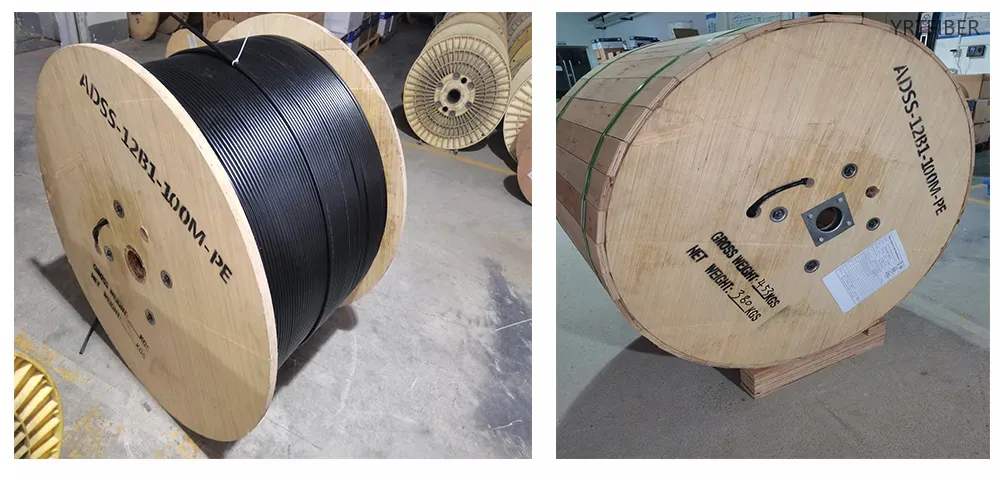

Shipping & Packaging
Packaging Requirements:
1：All cables shall be wound on treated wooden spools that are not returnable
2：Cable ends must be firmly secured to the spool and protected with waterproof shrink caps
3：Each spool must include:
1、 Protective plastic wrapping layer
2、 Reinforcing wooden slats for stability
3、 Minimum 1m of free cable end for testing purposes
4、 Standard spool length: 3000mm (±2% tolerance allowed)

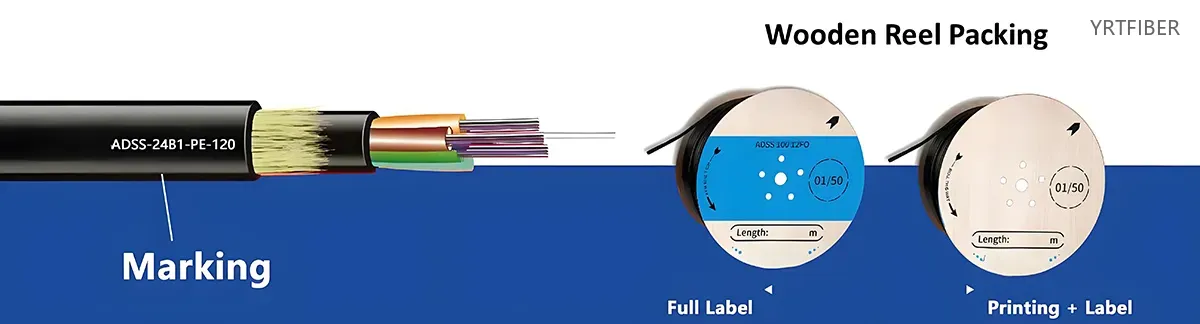

Cable Identification:
The outer jacket must display:
1、Unique sequential numbering every 1m (±1% variance permitted)
2、 Additional repeating markings at 1m intervals showing:
1、 Product code and fiber count
2、 Manufacturer identification
3、 Production date (month/year)
4、Total cable length
Standard Packaging Dimensions:
| Length | Container | Size (L×W×H) | Net Mass | Total Mass |
|---|---|---|---|---|
| 2 km | Wood spool | 90×75×90 cm | 156 kg | 220 kg |
| 3 km | Wood spool | 100×68×100 cm | 240 kg | 280 kg |
| 4 km | Wood spool | 109×75×109 cm | 300 kg | 368 kg |
| 5 km | Wood spool | 129×72×129 cm | 400 kg | 480 kg |
Technical Reference:
1、 Standard cable diameter: 10.0mm
2、Maximum span distance: 100m
3、Contact sales team for complete technical specifications
Spool Marking Standards:
Permanent markings (minimum 25-30mm height) must appear on both sides of each spool:
1、 Company name and trademark
2、Contained cable length
3、Cable specifications (type/fiber count)
4、Winding orientation
5、Weight measurements (gross/net)
Note: All wooden packaging materials must undergo proper fumigation treatment prior to use.
Product Comparison：
GYXTC8S vs GYTC8S vs GYTS - Outdoor Aerial Optical Cable Comparison (with Cost Factors)
| Comparison Factor | GYXTC8S (Central Tube Figure‑8) | GYTC8S (Stranded Figure‑8) | GYTS (Stranded Steel Tape Armored) |
|---|---|---|---|
| Construction Type | Central tube + figure‑8 self‑supporting | Stranded loose tube + figure‑8 self‑supporting | Stranded loose tube + steel tape armor |
| Fiber Count Range | 2 - 24 cores (typically 2‑24 cores) | 2 - 144 cores (2‑144 cores) | 2 - 144 cores (2‑144 cores) |
| Self‑supporting / Messenger | Integrated steel strand, direct aerial installation | Integrated steel strand, direct aerial installation | No built‑in messenger - requires separate support / duct |
| Armor Layer | PSP (plastic‑coated steel tape) longitudinally applied | Steel tape armor | PSP (plastic‑coated steel tape) longitudinally applied |
| Typical Weight (12‑core, ref.) | ~140‑245 kg/km | ~94 kg/km | ~78‑105 kg/km |
| Short‑term Tensile Strength | 3000‑4000 N | 1500 N | 1500 N |
| Short‑term Crush Resistance | 3000 N/100mm | 1500 N/100mm | 1000 N/100mm |
| Min. Bending Radius (Static / Dynamic) | 10D / 20D | 10D / 20D | 10D / 20D |
| Installation Cost Level | Low - integrated messenger eliminates separate support line | Low - same self‑supporting design reduces aerial installation labor | Higher - requires separate messenger line + additional hangers / hardware |
| Installation Cost Details & Savings | Figure‑8 self‑supporting structure … provides easy and cost‑saving aerial installations. Integrated steel strand can lower total installation cost by ~30% vs. non‑self‑supporting designs, and workers can fix 3‑4 km per day. | Same integrated messenger design provides similar installation savings, especially on medium to long spans. However, heavier construction (stranded design) may need slightly more labor for splicing and routing. | No built‑in messenger means mandatory separate steel strand or ADSS‑style installation. Adds extra materials, labor, and slower progress. Generally 20‑40% higher installation cost vs. figure‑8 types. |
GYXTC8S Aerial armoured optical fibre cable Selection Guide
Installation Instructions for GYXTC8S Figure-8 Self-Supporting Aerial Cable
GYXTC8S integrates a steel messenger wire into the cable jacket for one-step aerial installation. No separate lashing or messenger strand is required. Suitable for spans up to 150m in access networks, CATV, and FTTx.
Key limits: Short-term tensile ≤1500N, long-term ≤600N. Dynamic bend radius ≥20×OD, static ≥10×OD. Use pulleys and pay-off rack. Always pull by the steel messenger only.
Installation steps: Conduct route survey. Mount suspension/wedge clamps (load rating ≥6kN). Unreel cable without twisting. Pull messenger, then adjust sag. Separate messenger from fiber section 15-20cm before cutting.
Post-installation: Check sheath for damage. Verify fiber performance via OTDR. Follow local grounding rules. Service life >30 years.
Download YRTFIBER Product Catalog
Factory Real Shot

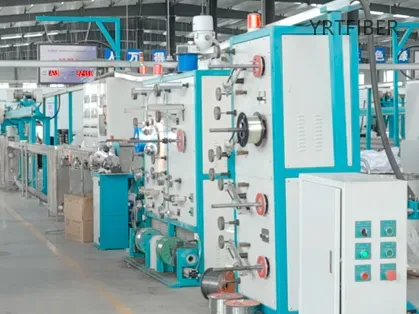

1. Factory Optical Cable Production Workshop
The workshop is equipped with an integrated production line covering fiber coloring, secondary sheathing, cable stranding, and double-layer jacket extrusion.
The workshop is clearly divided into zones: fiber coloring area, loose tube extrusion area, cable stranding area, armored jacket area, and testing & packaging area.
2. Delivery Time
Custom orders are scheduled according to the contract and produced strictly as planned.
Each order is assigned a dedicated person to follow up and ensure delivery according to the contract.
3. Production Line Stability
Spare extruder heads and dual-station pay-off racks ensure uninterrupted production during specification changes or maintenance.
Key consumables (steel tape, PE materials, water-blocking compounds) have online automatic alerts, reminding for replenishment when stock is low.
4. OEM/ODM
Customization is available according to customer drawings or samples: jacket color, print content, spool size, and packaging method.
Neutral packaging (no factory logo) or customer brand labeling and custom film wrapping printing are supported.
ODM services are provided: from structural design and material selection to sample production, the entire process is coordinated by engineers.
Frequently Asked Questions & Quick Inquiry
GYXTC8S Aerial armoured optical fibre cable FAQ
Q: Can you provide samples?
A: Yes, we can provide samples of a certain value.
Q: When can the sample order be delivered?
A: Usually within 7 days after confirmation.
Q: What is the delivery time for bulk orders?
A: Usually it is 15-20 days from the date of order placement, but it also depends on the quantity of the order. You need to confirm the specific delivery time with the sales manager.
1. What is GYXTC8S fiber optic cable used for?
GYXTC8S is a figure-8 self-supporting aerial fiber optic cable designed for outdoor overhead installations. It is widely used in long-haul communications, metropolitan area networks (MAN), access networks, CATV systems, FTTx deployments, and rural telecom networks.Its integrated messenger wire design allows direct pole-to-pole installation without separate support strands, making it ideal for areas where underground duct infrastructure is unavailable.
2. What is the difference between GYXTC8S and GYTC8S?
Both are figure-8 self-supporting aerial cables, but they differ in structure and fiber capacity. GYXTC8S uses a central loose tube design where all fibers are housed in a single tube, supporting 2 to 24 cores. GYTC8S uses a stranded loose tube design with multiple tubes stranded around a central strength member, supporting up to 144 cores. For small to medium core count projects (up to 24 cores), GYXTC8S is more compact and cost-effective; for high core count trunk lines, GYTC8S is the better choice.
3. How much does GYXTC8S cost?
GYXTC8S pricing typically ranges from US$0.09 to US$0.65 per meter, depending on fiber count and order quantity.In bulk orders, prices can drop significantly. For example, a 12-core single-mode GYXTC8S is priced around US$0.65/m at retail, while high-volume orders (2000m+) can bring prices down to approximately US$0.05–0.10/m.[reference:6] Compared to non-self-supporting cables requiring separate messenger lines, GYXTC8S can reduce total installed cost by eliminating additional hardware and labor.
4. How is GYXTC8S installed?
Installation is straightforward due to its self-supporting design. The steel messenger wire integrated into the figure-8 profile is pulled and clamped to poles, while the fiber cable section hangs below. Key requirements: short-term tensile strength ≤1500N (long-term ≤600N), dynamic bending radius ≥20× cable diameter, static ≥10× cable diameter, and span lengths up to 150 meters.Always pull the steel messenger only, not the fiber section, and use proper suspension clamps (load rating ≥6kN).
5. Is GYXTC8S waterproof and rodent-resistant?
Yes. GYXTC8S features a full cross-section water-blocking structure with water-blocking gel inside the loose tube and water-blocking tape between layers, which passes 1m water column tests for 8 hours without leakage.Additionally, the corrugated steel tape armor (PSP) provides protection against crushing, impact, and rodent attacks, making it suitable for harsh outdoor environments.
6. What is the lifespan of GYXTC8S cable?
The designed service life of GYXTC8S is 25 to 30 years when properly installed.The UV-resistant PE outer sheath ensures good weather resistance and anti-aging properties, while the precision-controlled fiber excess length guarantees stable mechanical and thermal performance throughout its operational life in outdoor aerial conditions.
