GYXTC-8Y Self-Supporting Figure 8 Uni-Tube Aerial Fiber Optic Cable

Q: Can you provide samples?

A: Yes, we can provide samples of a certain value.

1. What is the fundamental difference in installation between GYXTC‑8Y and other aerial cables (such as GYTS and ADSS)?

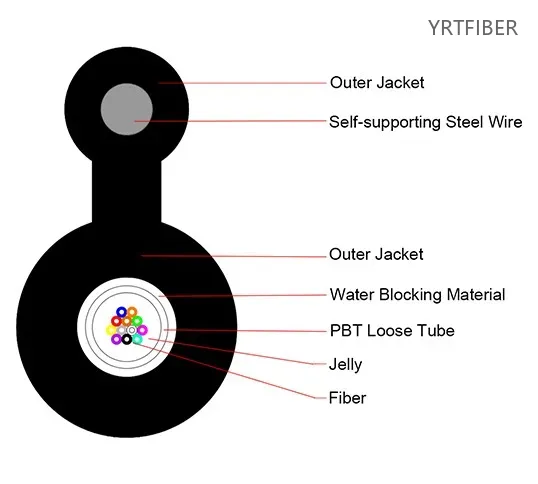

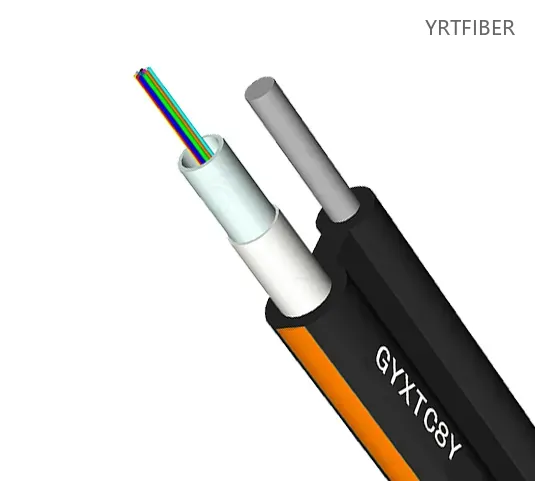

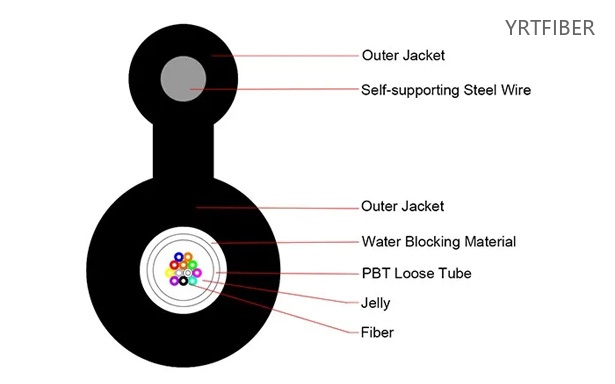

GYXTC‑8Y is a figure‑eight self‑supporting cable in which the steel messenger and the optical cable are factory‑integrated into a single unit. For aerial installation it does not require a separate messenger wire and can be installed in one operation, eliminating the step of tying the cable to a messenger with thin steel wire. GYTS is not self‑supporting and requires an independent steel messenger to be installed first, then the cable must be lashed to that messenger, which increases construction steps, time and overall installation cost. ADSS (all‑dielectric self‑supporting) also does not need a separate messenger, but it uses a non‑metallic, non‑conductive structure and is commonly used on poles shared with power lines; ADSS can span much longer distances than typical GYXTC‑8Y spans. Selection among the three depends on project needs: GYXTC‑8Y is fast to install and cost‑effective for standard aerial scenarios; GYTS, used with a messenger, offers stronger lateral protection and is suitable where higher mechanical protection is required; ADSS is preferred for long spans or live‑line environments.

2. How well does GYXTC‑8Y adapt to harsh environments? Can it operate reliably in extreme cold, intense sun and heavy snow?

GYXTC‑8Y has good environmental adaptability. Its polyethylene (PE) outer sheath provides strong UV resistance for prolonged outdoor sun exposure. Typical operating temperature ranges are around –20°C to +60°C, with some variants rated for extremes such as –40°C to +70°C. For ice and snow loads, the cable’s design accounts for additional loads on sag, and engineering calculations must include ice accretion and wind pressure as added tension. Note that installation temperature limits are generally between –15°C and +50°C; below –15°C the sheath can become brittle and bending may cause irreversible damage, so avoid installation in very low temperatures.

3. What is the maximum span for GYXTC‑8Y, and how are sag and tension calculated during installation?

Typical spans for GYXTC‑8Y are in the range of 50–100 meters, but the exact allowable span must be determined by engineering calculations that consider local ice and wind loads rather than relying on typical values. Sag and tension are calculated using catenary principles: sag is proportional to the cable’s weight per unit length and the square of the span, and inversely proportional to horizontal tension; ice and wind loads must be superimposed. During installation, the steel messenger is tensioned in stages—coarse tensioning followed by fine sag adjustment—to ensure the final sag meets safety requirements while keeping fiber strain within design limits (typically ≤0.6%).

4. What special tools are required for installing GYXTC‑8Y, and how are the steel messenger and fiber portions separated at poles?

Installation requires specialized figure‑eight preformed anchor devices that clamp directly onto the steel messenger for rapid fixation. Other common aerial tools include pulleys, pulling ropes, sag/tension meters, suspension hooks and grounding clamps. At terminal poles, a splitter or separation tool is used to separate the steel messenger from the optical cable within the figure‑eight assembly. The messenger is then anchored with preformed tension clamps or compression strand vises, while the fiber portion is coiled for reserve and the separation point is resealed with weatherproof tape to prevent moisture ingress into the cable core.

5. How should GYXTC‑8Y be maintained and serviced during long‑term operation?

Maintenance focuses on inspecting the steel messenger for corrosion and periodically checking cable sag. Because the messenger is exposed outdoors, inspect the zinc coating and any signs of rust or coating loss every two to three years, paying special attention to grounding connections where electrochemical corrosion is more likely. After severe wind or ice events, check for abnormal increases in sag or uneven loading and, if necessary, remeasure tension and adjust sag. If a cable section fails due to aging or external damage, use the reserved coil length for splicing and repair; when stripping the messenger and fiber sheath, keep the environment dry and clean to avoid moisture entering the loose tubes. With proper maintenance, GYXTC‑8Y is typically designed for a service life of 25 years or more, and can exceed 30 years under good conditions.

6. When should GYXTC‑8Y be chosen over GYTS or ADSS? What are the selection guidelines?

Selection guidance by scenario: – GYXTC‑8Y (preferred): ideal for short‑ to medium‑distance urban and rural aerial deployments, FTTx access in towns and sparsely populated areas, and projects requiring rapid installation. Its one‑step installation shortens construction time and reduces labor costs; it is compact and lightweight. – GYTS (with messenger): suitable for mixed aerial and duct routes or projects demanding higher mechanical protection (better lateral crush and rodent resistance). GYTS uses steel‑tape armor for stronger mechanical protection but requires a separate messenger, increasing installation time and cost. – ADSS (specific cases): chosen when cables must be installed on the same poles as high‑voltage power lines and complete electrical insulation is required to avoid induced currents. ADSS supports much longer spans but involves higher material and hardware costs and more complex sag design, making it suitable for power‑line communication networks and other specialized applications.
